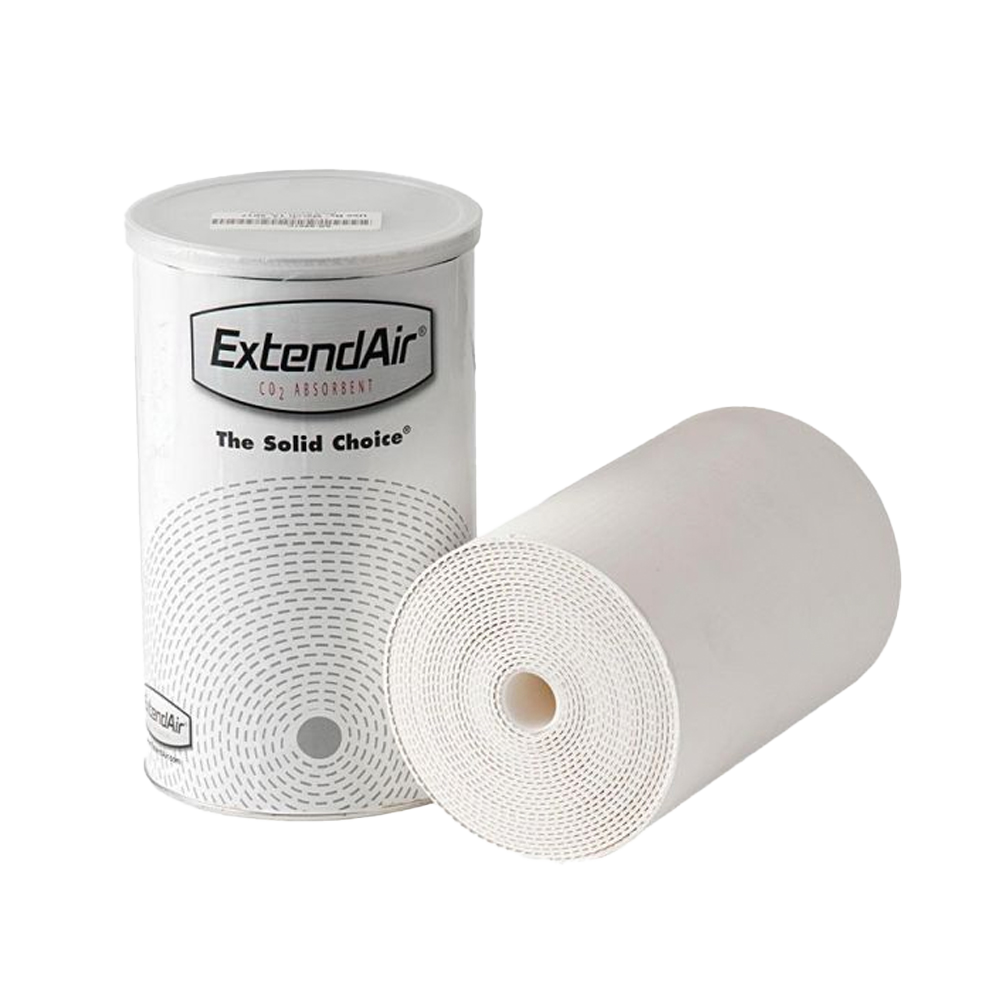

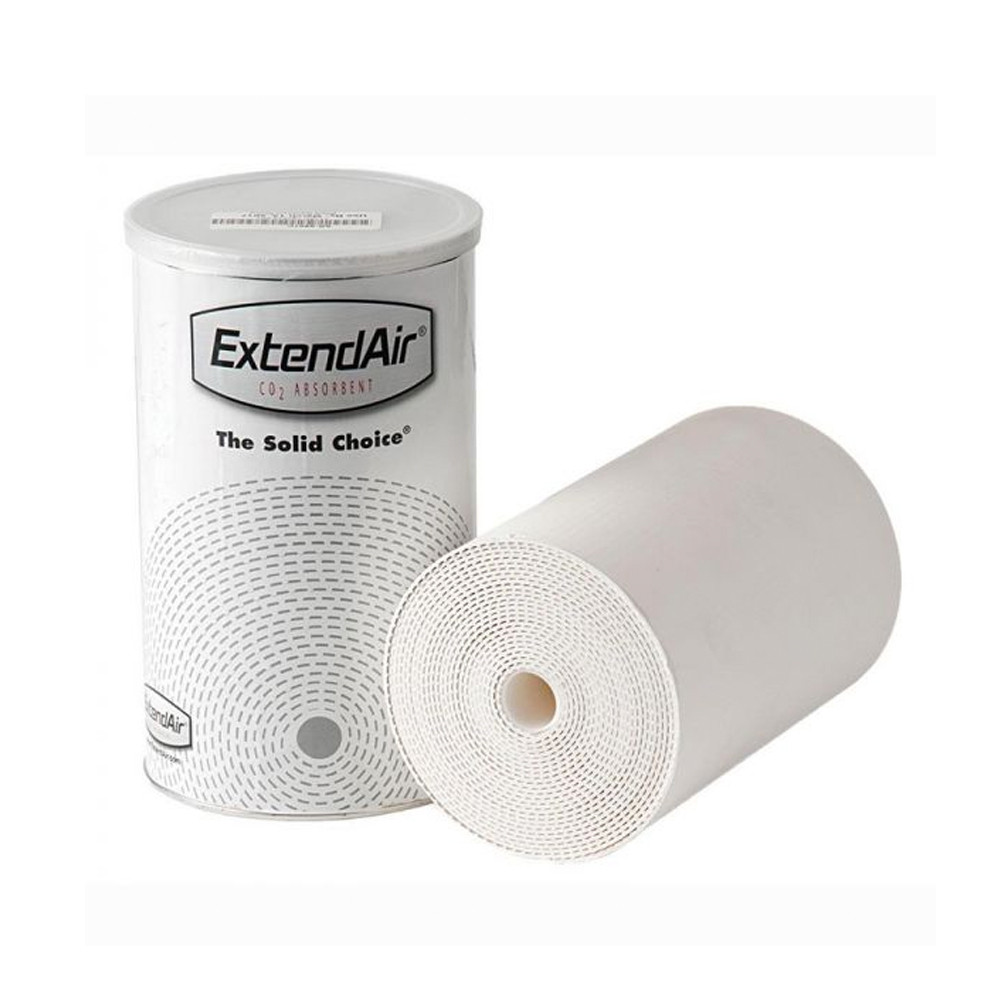

Extend Air Cartridge (EAC) CO2 Absorbent for Incursion Military Rebreathers
Description
The Incursion-MIL uses only Micropore EAC scrubber cartridges, supplied in boxes of four.
The EAC removes carbon dioxide from the rebreather loop. It has an operating life of 4 hours at the NEDU 1.35 lpm of CO2 metabolic rate, regardless of the depth being dived.
The EAC is Calcium Hydroxide and Sodium Hydroxide stabilised in a PE plastic matrix. The cross-section shown on the right, allows gas to flow along channels in the EAC, in which the Carbon Dioxide is absorbed, and the gas is warmed.
FEATURES
- Removes CO2 from the rebreather loop
- Operating temperature range -30ºC to +40ºC
- Provides 4 hours of diving, to any O2 or Nitrox depth, based on US NEDU diver metabolic rates
- Instant operation: no requirement to pre-breathe
- Safe for repeat dives
- Flood tolerant
- Immune to channelling
- No dusting
- Fast change-out: like fitting a battery
TECHNICAL SPECIFICATION
- Net Weight: 2.2kg per EAC
- Nominal Diameter: 120mm
- Nominal Length: 195mm
- Central bore type: Large bore
- Certification: CE
- Duration:
- 4 hours at NEDU 1.35 lpm @ 21ºC CO2 production, at 40m depth
- 2 hours 45 minutes at CE 1.76 lpm @ 21ºC CO2 production (1.6 lpm @ 0ºC), at 40m depth
- Usage: The EAC requires a scrubber canister specifically designed for the EAC
- Packaging: EACs are shipped in individual sealed canisters. The canisters must remain sealed until use. Canister printing is updated periodically to comply with regulations
- Four EACs are shipped per box. Pallets contain a maximum of 64 boxes (256 EACs)
- A safety data sheet (SDS, formerly known as a MSDS), is supplied with each shipment
ORDERING
Model number – OSEL-EAC-SR0801C
Pack of 4
