When diving, help is not always close by. Be prepared to respond to an emergency quickly! Northern Diver offers a Portable Emergency Oxygen Resus Kit designed to provide the essentials for emergency aspiration and resuscitation. The RESUS oxygen kit is provided in a purpose-made 23L professional responder rucksack style carry bag for easy transportation to the casualty. It contains a lightweight 200bar oxygen cylinder with a PIN index valve and a selection of oxygen masks. Oxygen can be delivered between 1 and 15 litres per minute. This provides up to half an hour of treatment at the highest flow rate, helping to prevent the casualty deteriorating prior to the arrival of professional medical assistance.
*this item is not for medical use
Features
- Safe and simple to use
- Fully portable
- Lightweight oxygen cylinder with built in regulator
- Variable flow rates from 1 to 15 litres per minute
- Essential lifesaving equipment
- A complete self-contained, portable oxygen kit for mobile applications
Why would I need a Diver Resus Kit?
It is vital that divers are able to recognise and manage emergency diving incidents with oxygen therapy. Oxygen is needed to support body tissues and functions as well as assisting in the elimination of inert gases such as nitrogen. It will help shrink any gas bubbles that may have developed during ascent that contribute to decompression sickness (DCI) and arterial gas embolism. Supplementary oxygen can help minimise and reduce existing symptoms or injury until definitive care can be reached.

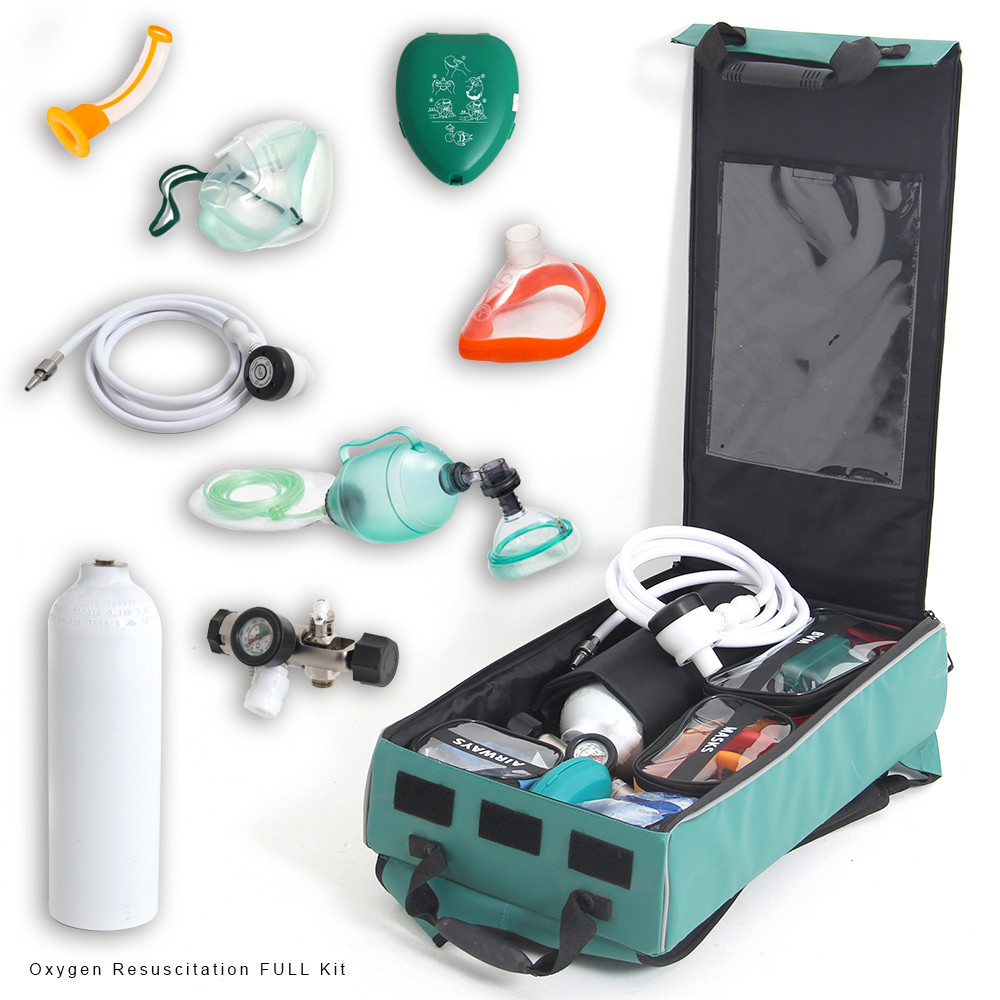

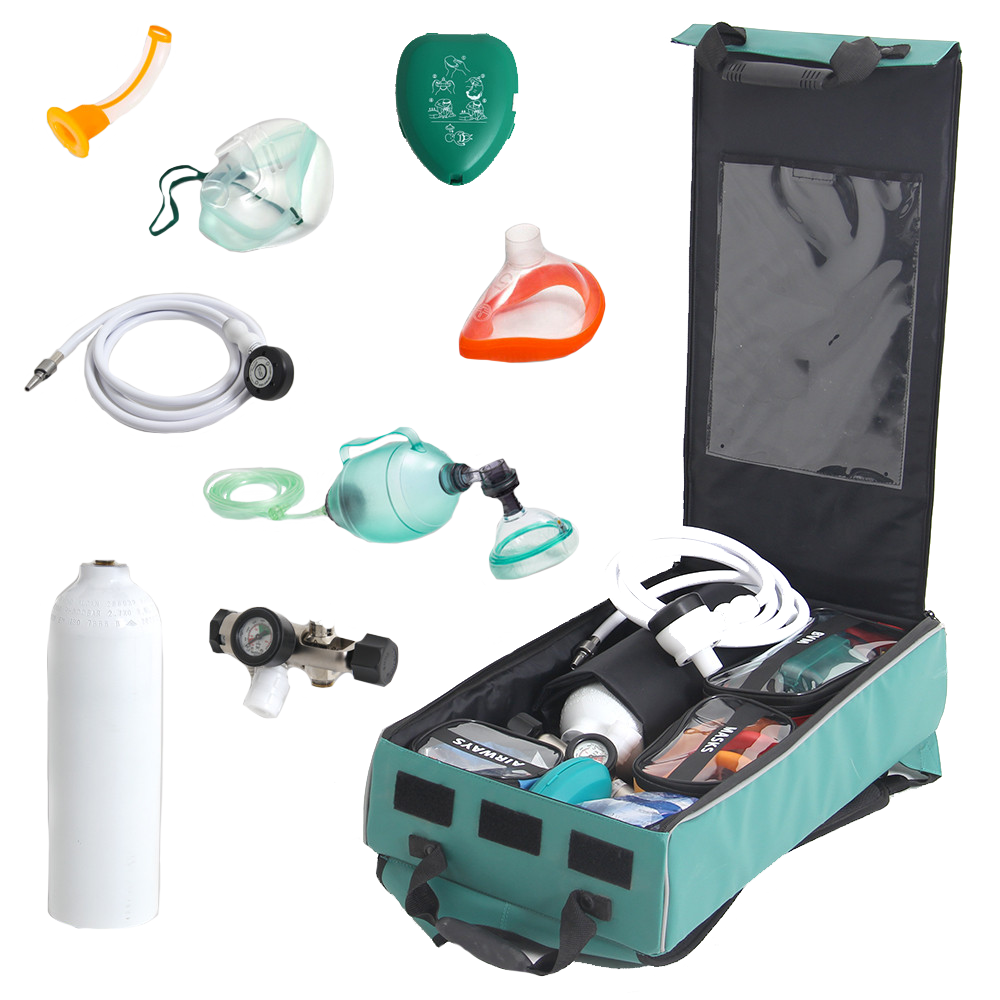

What’s Included?
- Oxygen demand valve (ND0003142)
- Oxygen regulator (ND0003143)
- PIN index oxygen cylinder (ND0003144)
- Single use oropharyngeal airways, size 3 (ND0003148) and size 4 (ND0003149)
- Single use resuscitation face masks (ND0003150)
- High concentrated oxygen therapy mask (ND0003151)
- Pocket mask with port (ND0003152)
- Adult B.V.M resuscitation system (ND0003153)
- 23L professional responder rucksack (ND0006154)
Important delivery details
Please note this item would be delivered in approx 7 working days from date of purchase.
Delivery time will take longer during any holidays. If you have any questions please contact the team.

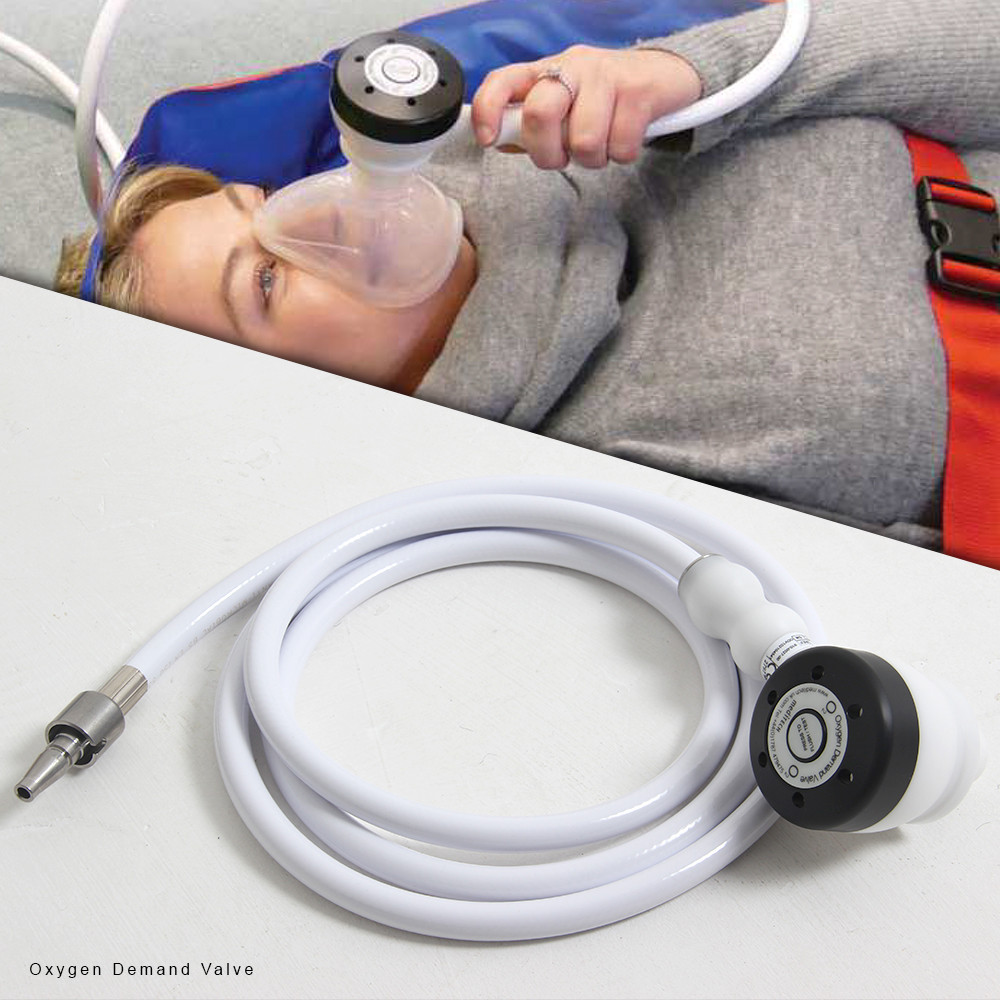

Oxygen Demand Valve
Excellent performance and robustness, coupled with practical features to avoid cross contamination and provide a positive patient experience. The device also be used to relieve Cluster Headaches. The Oxygen Demand Valve is designed for use with 100% 02, and meets the technical performance requirements of BS4272-2
- Designed to be extremely strong and durable
- Full length handle
- Intended gas: O2 (Oxygen) supply
- Supply pressure: 2.8 bar to 6.0 bar (280 kPa to 600 kPa)
- Cracking pressure: 0.15kPa
- Nominal outlet pressure: 5.5 bar
- Peak flow: > 200 lpm
- Inlet connections: schrader (BS 5682:1998)
- Hose length: 2m
- Outlet (patient) connection: 22mm male conical quick coupler release (ISO 5356-1:2015)
- Exhaled gas scavenging system connection (via adapter): 30mm male (ISO 5356-1:2015)
- Service interval: 5 years
- Warranty: 5 years
- Intended life span: 10 years

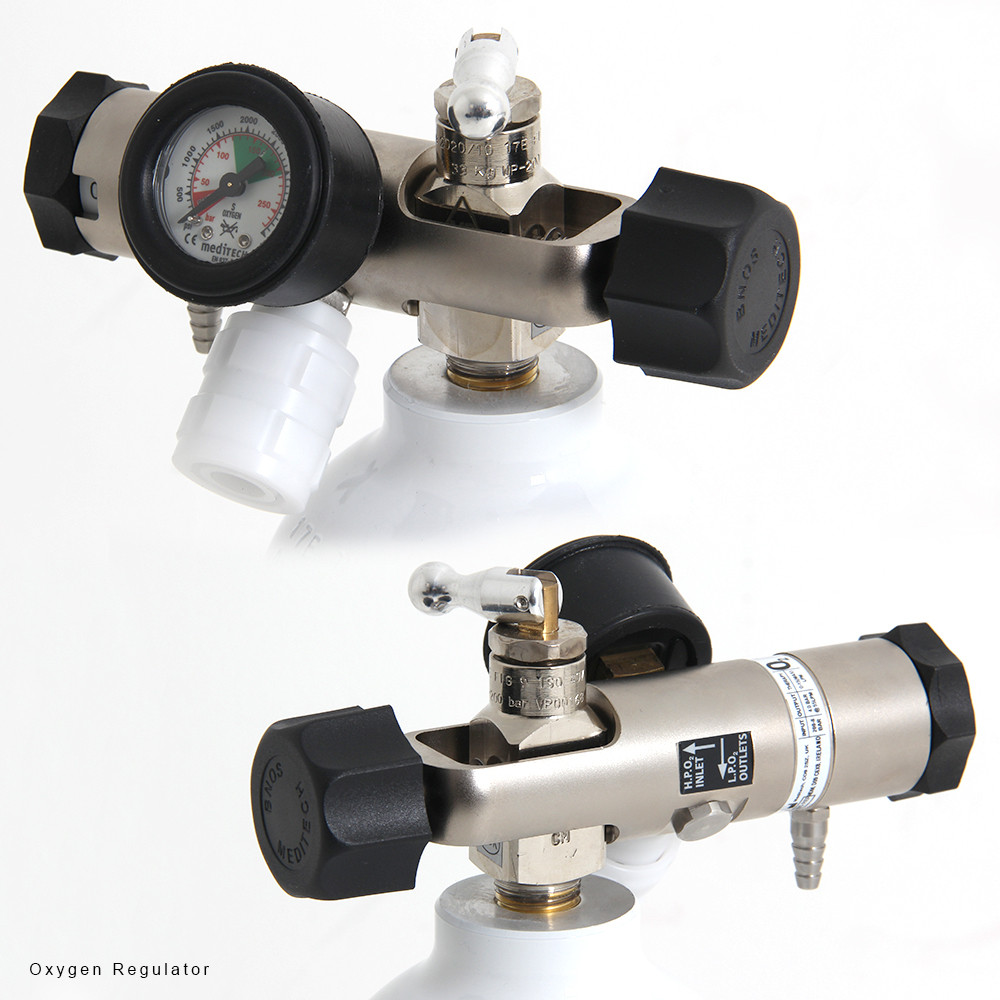

Oxygen Regulator
- Model: 55B (brass) manufactured using brass which is a robust material with a good ignition resistance, for mobile use in demanding conditions
- Outlet type: BS 5682:1998 schrader
- Flow outlet: fir tree therapy connector
- Rated inlet pressure: 200bar
- Rated outlet pressure: 4bar
- Flow rate: 0-15L/pm
- Female quick coupler manufactured to ISO 13485
- Storage temperature range: -40°C to +60°C
- Operating temperature range: -20°C to +60°C
- Gauge face: luminous for night use
- Service interval: 5 years
- Warranty: 5 years
- Intended life span: 10 years

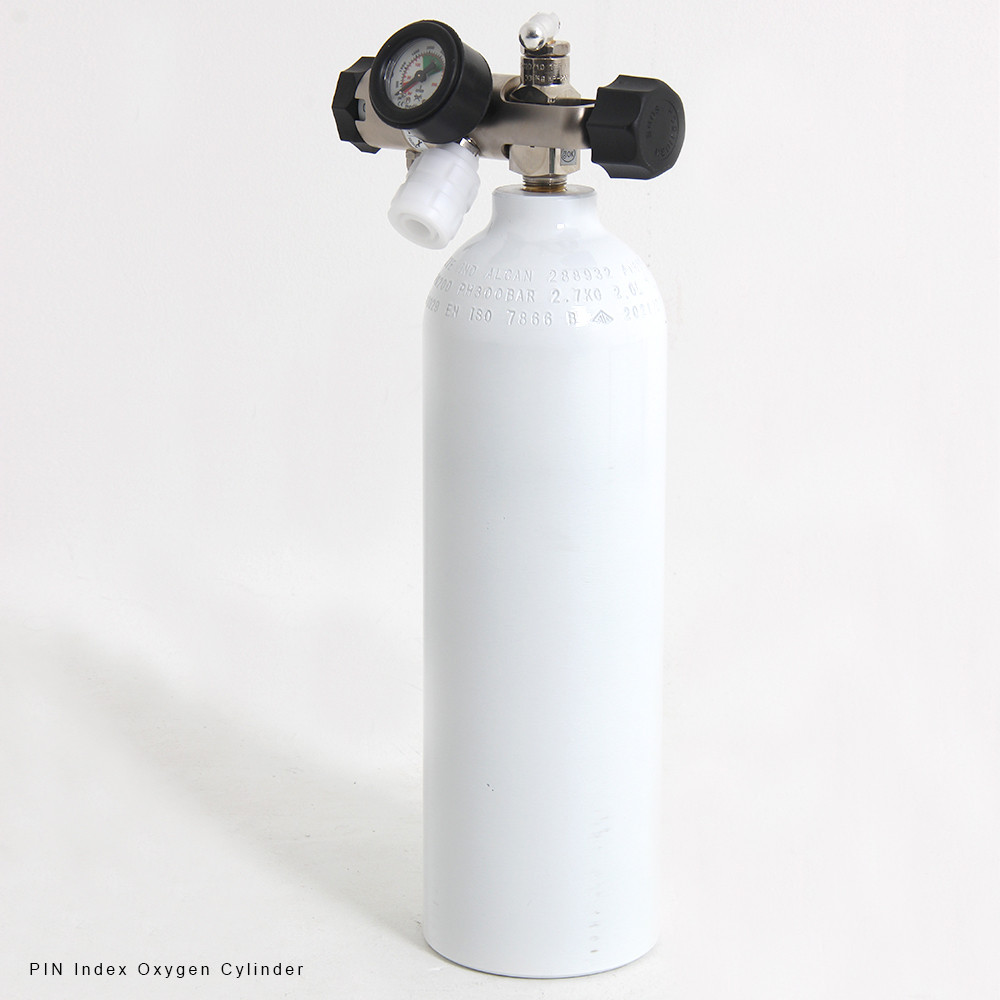

PIN Index Oxygen Cylinder
- Water capacity: 2L
- Valve: PIN index
- Thread: 17E tapered
- Filling pressure: 200 bar (holding 400 litres of oxygen)
- Test pressure: 300bar
- Standard: BS EN ISO 7866:2012
- Material: aluminium alloy, AA6061
- Colour code: white (EU standard)
- Weight: 4kg (filled with valve)
- Diameter: 111mm
- Length: 420mm
Please note: this cylinder is supplied empty, for more details please call us

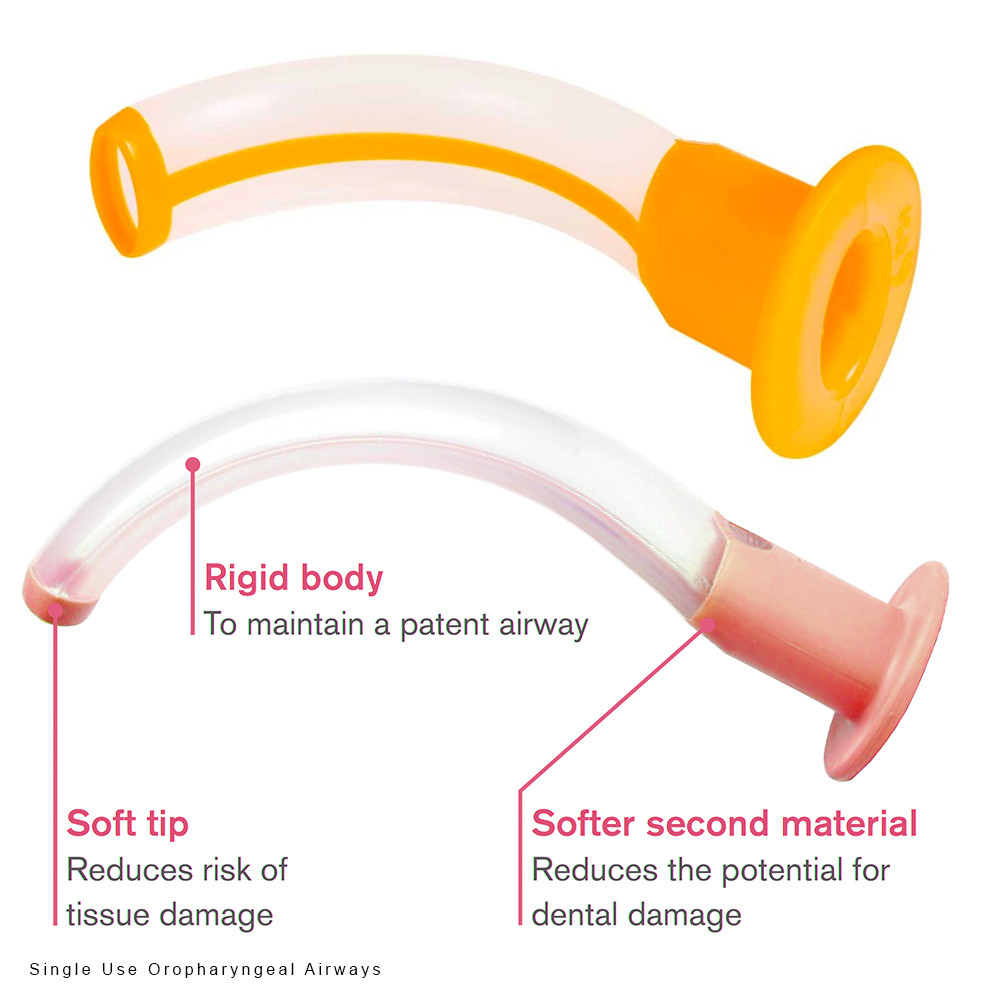

Single Use Oropharyngeal Airways
- To be used to prevent obstruction of the airway by an atonic tongue
- Sizes 3 and 4 available
- Trained personnel only to administer airways in the event of accident

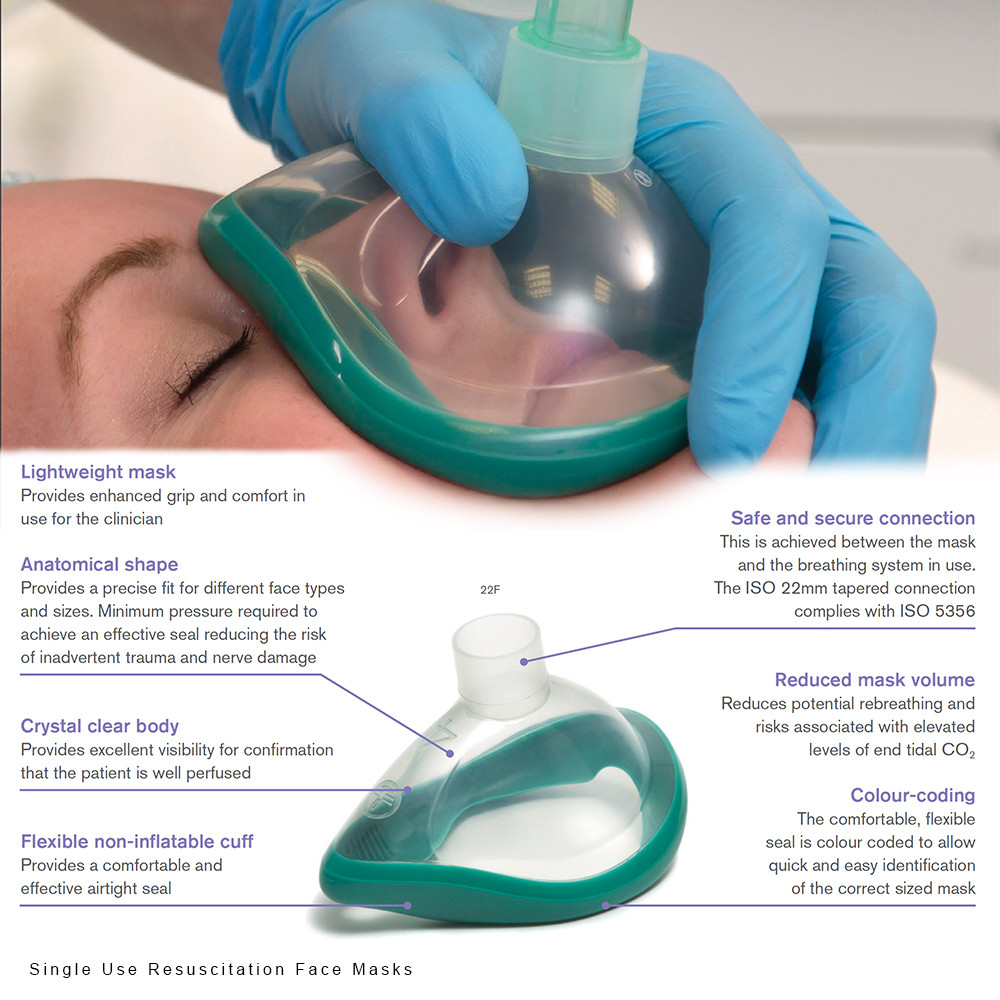

Single Use Resuscitation Face Masks
- Adult Bag-Valve-Mask, CPR mask for adult use only
- Anatomical shape for a tailored fit
- Soft seal for comfort
- Transparent shell for excellent visibility
- Manufactured from polypropylene and thermoplastic elastomer
- Contains no PVC and is phthalate-free
- Not to be used on infants or children

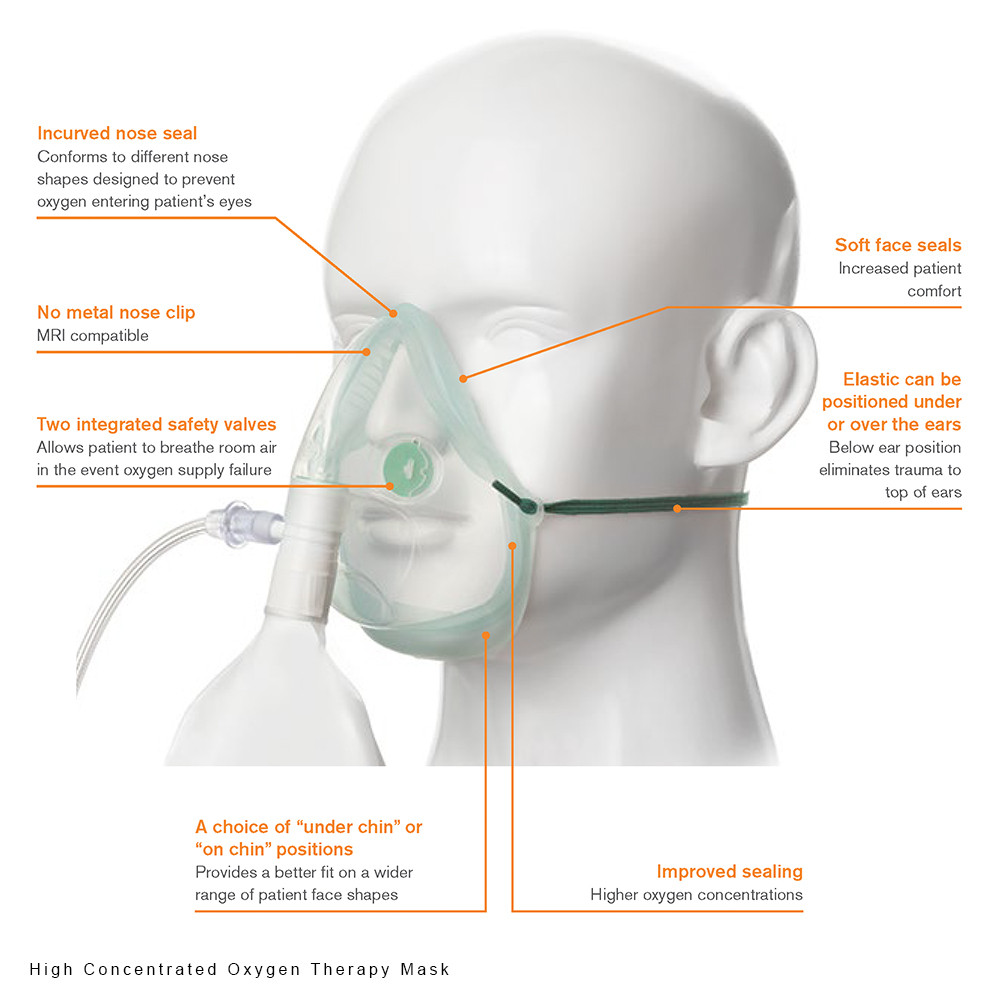

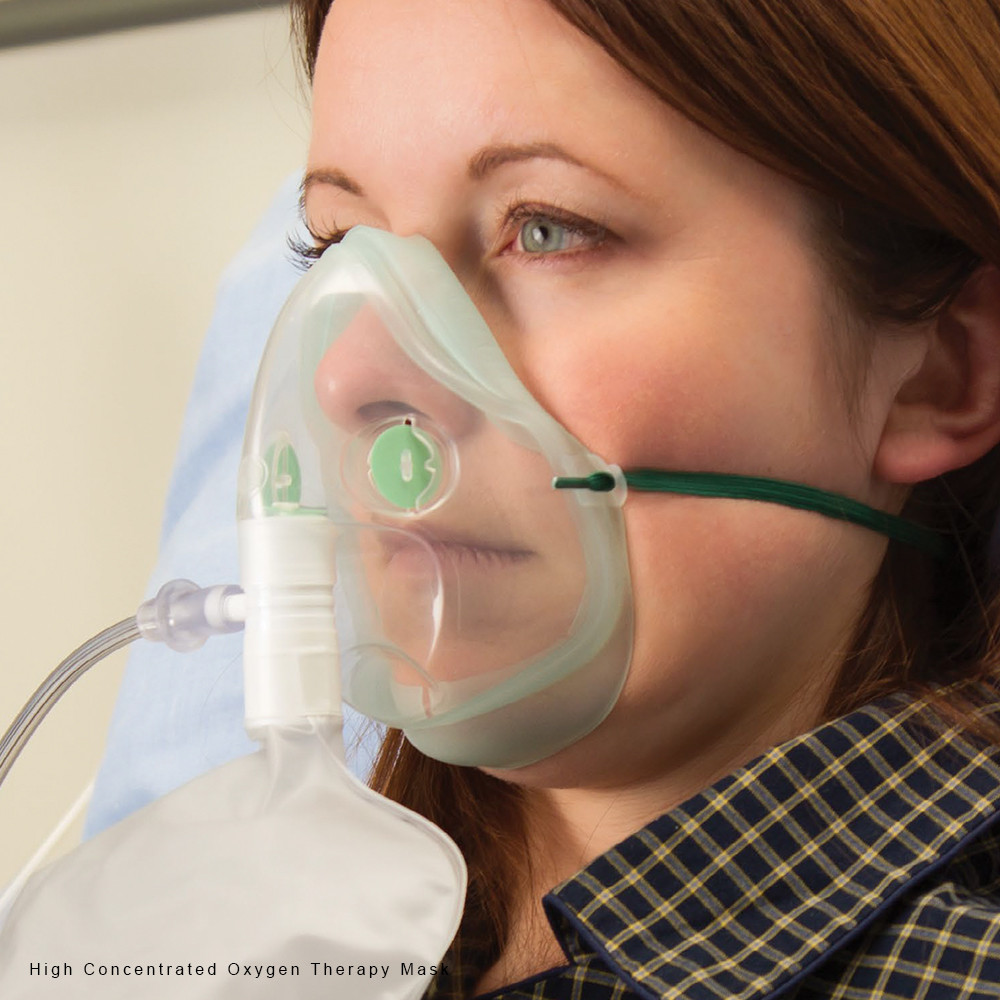

High Concentrated Oxygen Therapy Mask
- PVC with PE connector
- Including 2m oxygen tubing
- Elasticated adjustable head strap
- PE reservoir bag
- Single patient use
- Standard oxygen mask
- For minor issue use with flow rates of 1-6L/pm

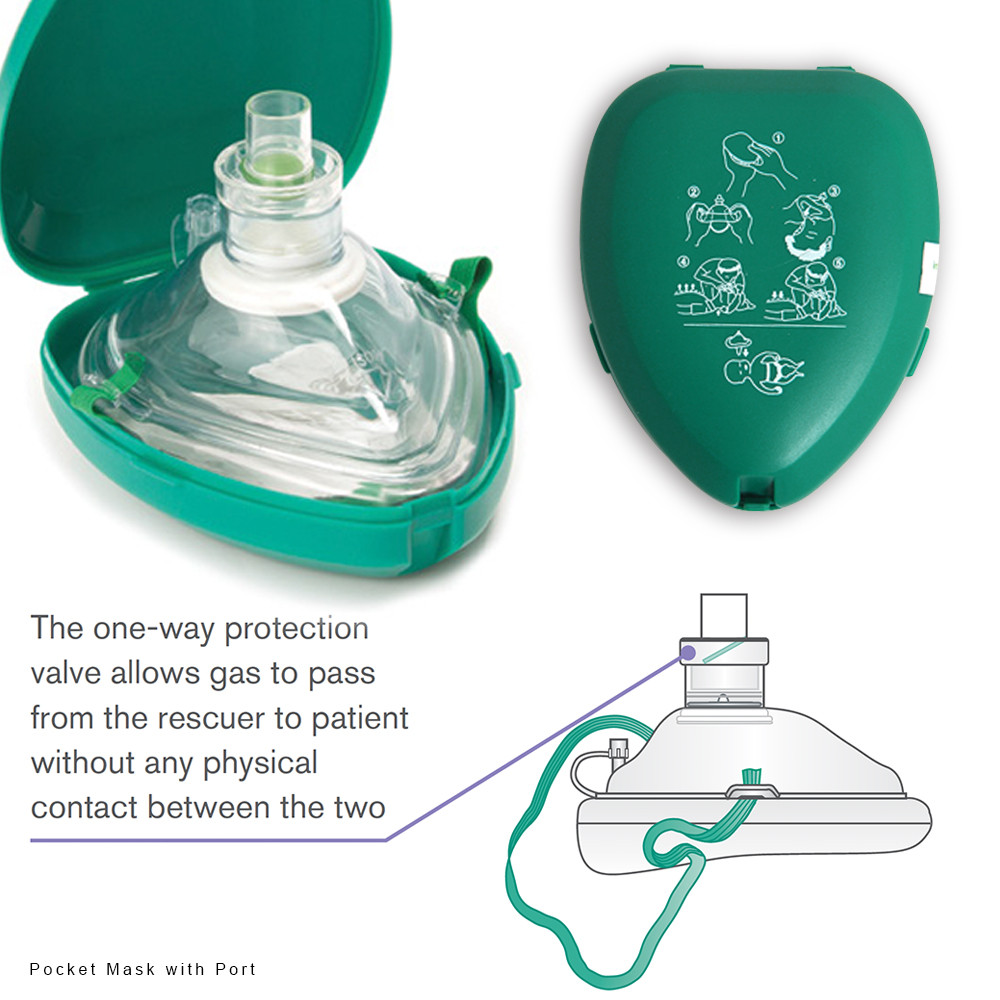

Pocket Mask with Port
- Emergency mouth to mouth face covering with oxygen port allowing for instant access to the oxygen flow
- Includes: supplementary O2 Connector, head strap, filter and protective carry case
- One way protection valve allows gas to pass from rescuer to patient without any physical contact
- Reduces the risk of cross contamination
Adult BVM Resuscitation System
- 1L bag with a pressure relief valve (40cm H2O)
- Oxygen reservoir bag with rapid bag recoil
- Oxygen tubing: 3m
- Secondary mask for the larger patient

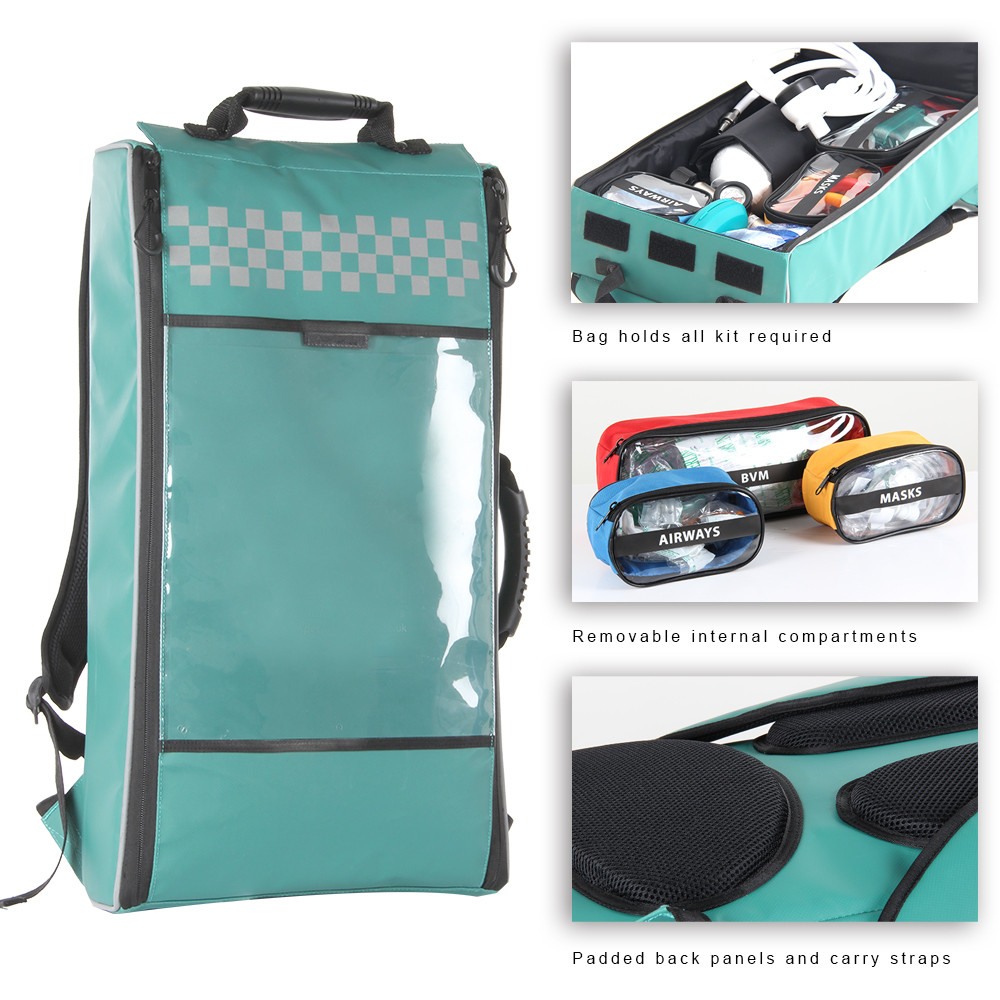

23L Professional Responder Rucksack
- Green top span PVC, water resistant and wipe clean
- Transparent pocket on front for interchangeable panels or documents
- Clamshell opening for fast, easy access
- Lined with quilted diamond velvet nylon
- Velcro close padded cylinder protector fitted
- 3 zipped removable internal compartments
- Heavy duty splash proof zips with ‘easy grab’ zip pullers
- Comfortable carry handles on both the top and side
- Adjustable shoulder straps
- Moulded back support padding for added comfort
- Reflective safety strips and piping
- HxWxD: 60*32*12cm (23.6*12.6*4.7”)
- Weight (bag only): 1kg (2.2lb)
CONTACT THE TEAM IF YOU HAVE ANY QUESTIONS ABOUT THIS PRODUCT
