DTI-300A Diver Acoustic Receiver

Description

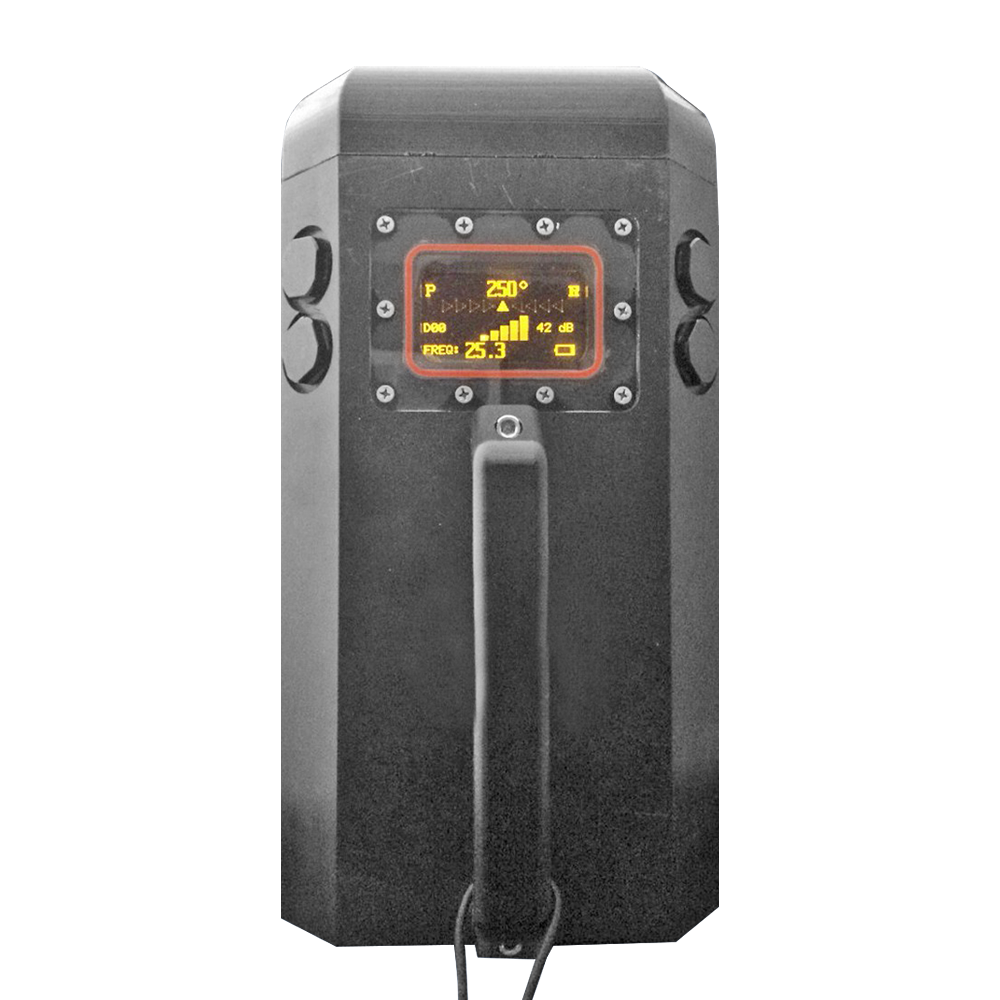

The DTI-300A is a small battery-operated acoustic receiver that tracks and locates underwater acoustic beacons and a unique family of acoustic transponders. It is ergonomically designed and displays navigation data via an LCD display. Sealed switches allow the diver to access the control and utility functions of the receiver. When operating in passive mode, the DTI-300A can locate standard acoustic beacons that operate from 25-40kHz. DTI-300A display guides the operator with signal strength a...

Read More

Tell Us What You Think

Customer Reviews

0 out of 5 Stars (Not yet rated)

Write a Review

No Reviews available

Features

  • Passive mode
  • Receiver bandwidth - 25 to 40kHz in 1kHz increments
  • Active mode
  • Transmit frequency - 26kHz
  • Receive frequency - 27,28,29,30,31,32,33,34 kHz
  • Acoustic output - 180dB
  • Acoustic signal - Coded
  • System range - 1000 metres
  • Electronic compassAccuracy -
  • Repeatability - ± 0.3°
  • Display - LCD
  • Graphic user
  • Interface - Range or signal strength
  • Compass bearing
  • Bearing indicator to target
  • channel indicator
  • Low battery
  • Battery - Rechargeable
  • Operational life - 6 hours
  • Control switches - Sealed piezo-ceramic
  • Depth rating - 100 metres
  • Housing - Delrin
  • Size - 30 x 16 x 9.5cm
  • Weight
  • In air: 2.9kg
  • In water: -0.185kg
