Fusion X - Rechargeable Dive Torch

Description

Fusion X Dive Torch – Powerful Illumination for Demanding Environments...
Built for demanding underwater exploration and professional applications, the Fusion X delivers exceptional brightness, durability and reliability. Producing an impressive 4500 lumens from three powerful SST40 LEDs, this high-performance dive torch is ideal for recreational divers, technical divers, rescue teams, commercial operators and military personnel who require dependable lighting in challenging conditions.

Featuring a focused 11° beam and a maximum beam distance of 429m (1407ft), the Fusion X provides outstanding penetration in dark water, wrecks, caves and low-visibility environments. Its tightly concentrated beam ensures excellent long-range visibility, making it particularly suited to search operations, inspections and underwater navigation.

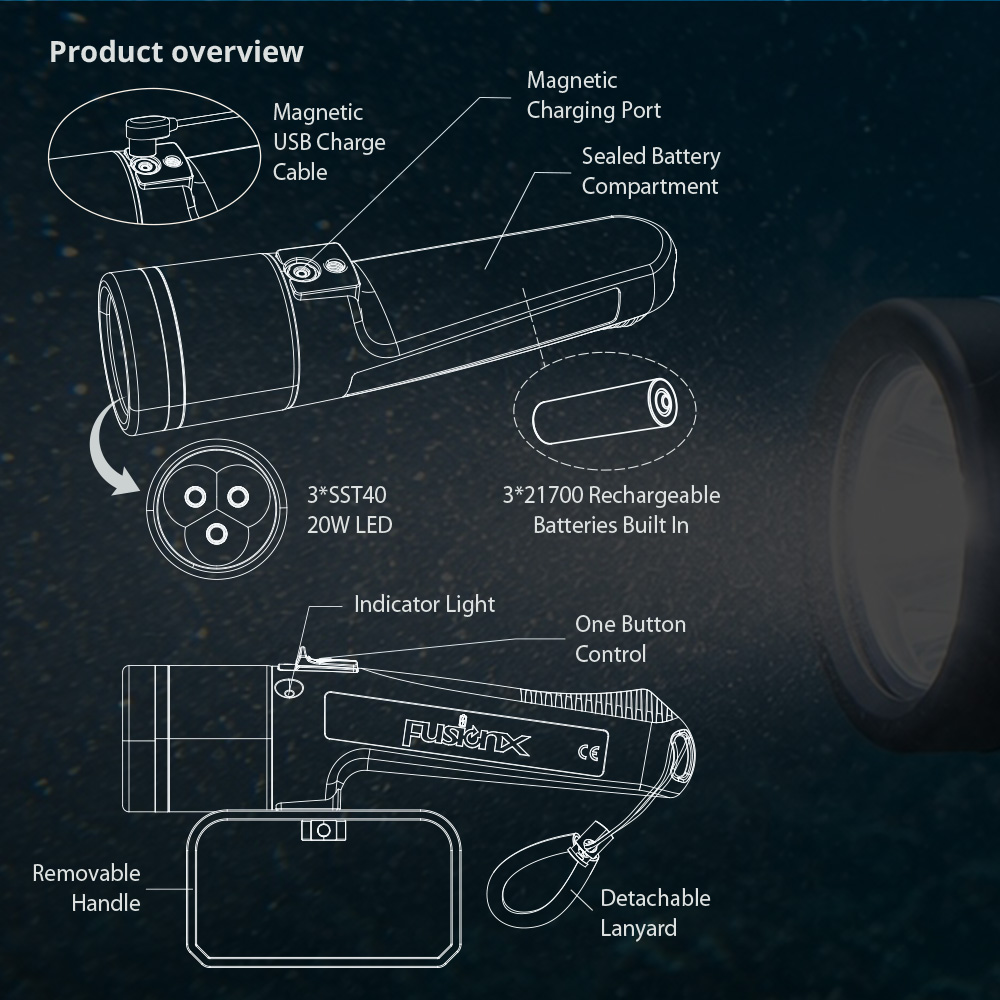

Constructed from rugged #6063 aluminium with a durable polycarbonate body, the torch is depth rated to 100m (328ft) and protected to IPX8 standards. A simple one-button control enables intuitive operation, even while wearing gloves. Power is supplied by an integrated 15,000mAh battery pack comprising three 21700 cells, delivering runtimes of up to 12.5 hours depending on output mode. The magnetic USB charging system provides convenient charging in approximately five hours without compromising waterproof integrity.

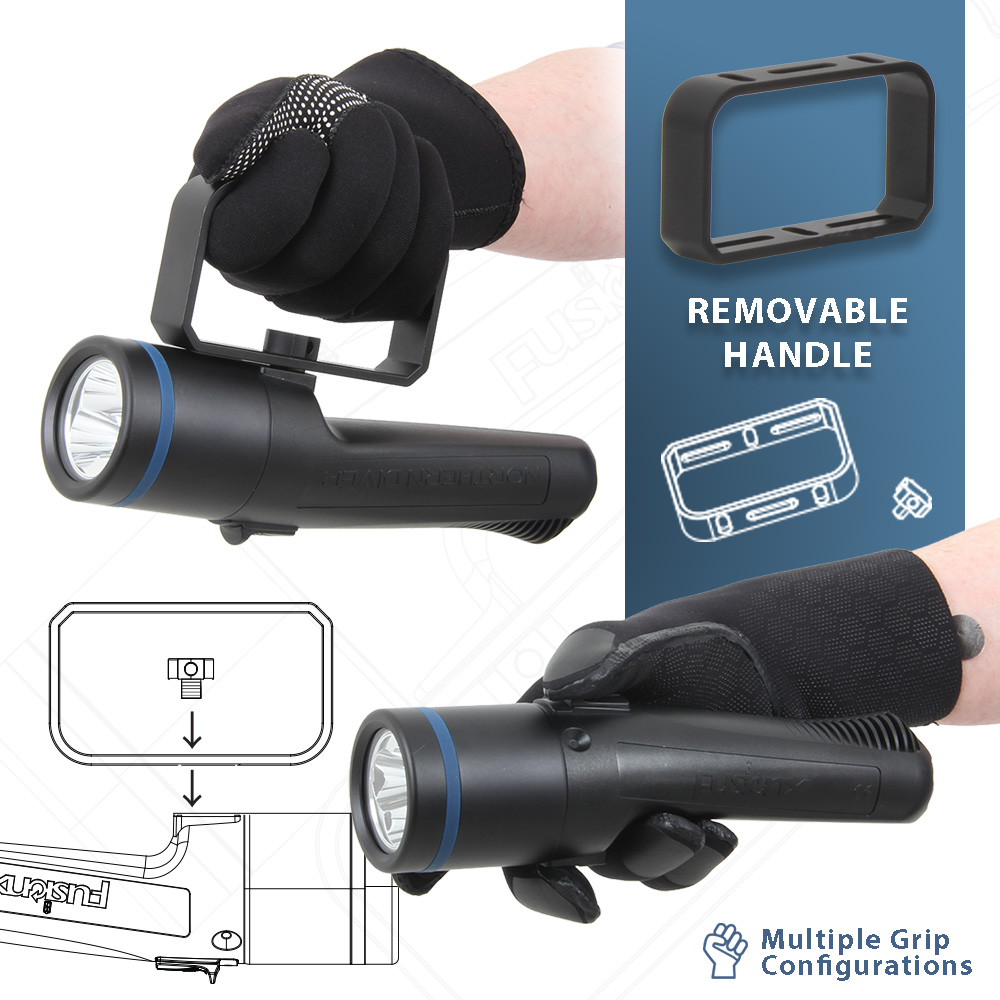

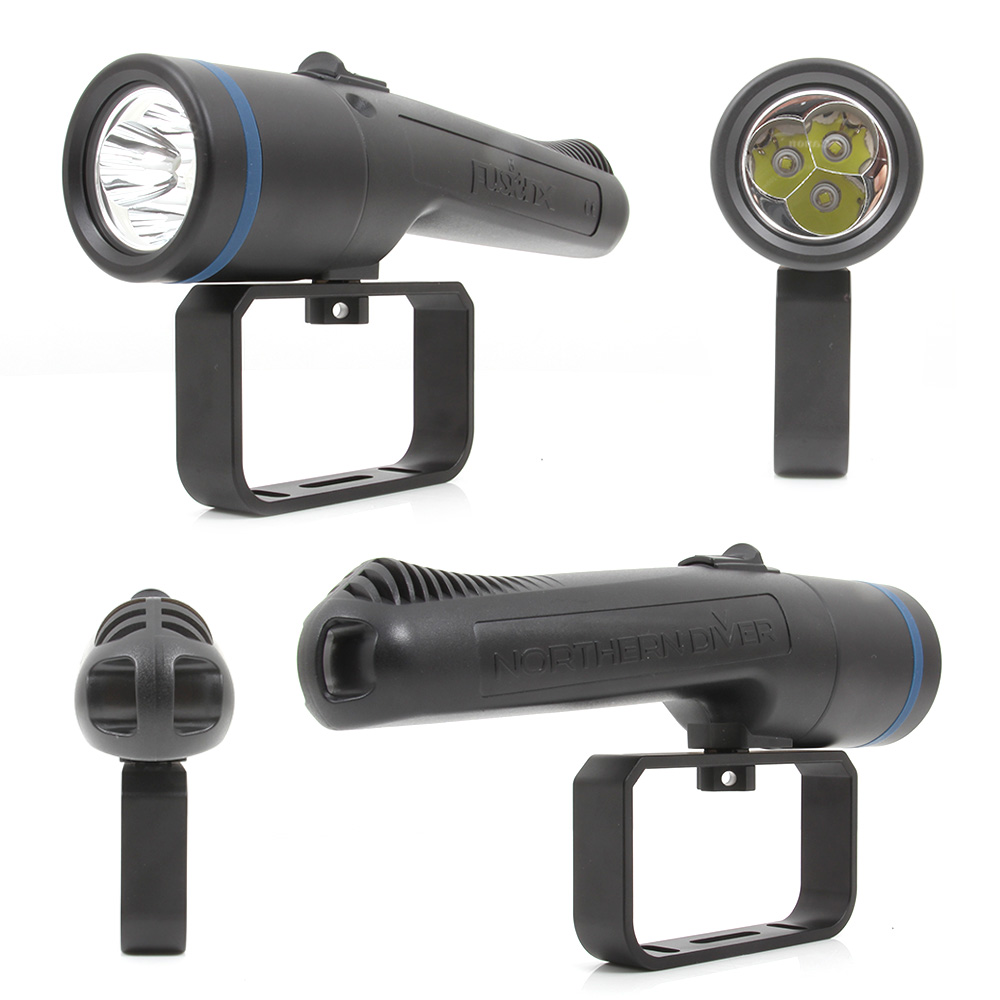

Supplied with a removable aluminium handle, the Fusion X offers multiple grip configurations to suit different applications and user preferences. Whether used handheld for maximum portability or fitted with the handle for enhanced stability and control during extended dives and technical operations, the Fusion X provides versatile handling above and below the surface.

---------------
FEATURES
  • Powerful 4500 lumen output from three SST40 LEDs
  • Focused 11° beam for excellent penetration and long-range visibility
  • Beam distance up to 429m (1407ft)
  • High-capacity 15,000mAh sealed battery pack
  • Up to 12.5 hours runtime

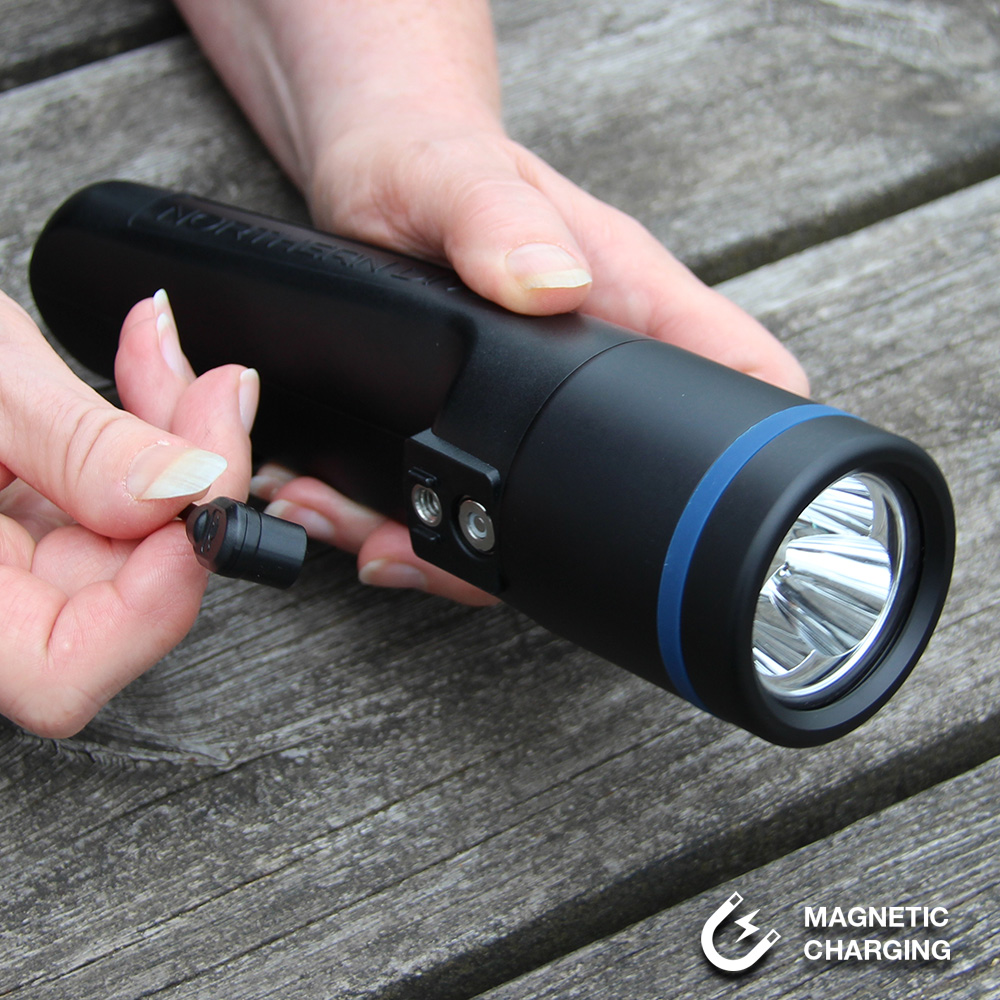

  • Magnetic USB charging system
  • Durable #6063 aluminium and polycarbonate construction
  • One-button operation for simple use
  • Depth rated to 100m (328ft)
  • Suitable for diving and surface applications
---------------

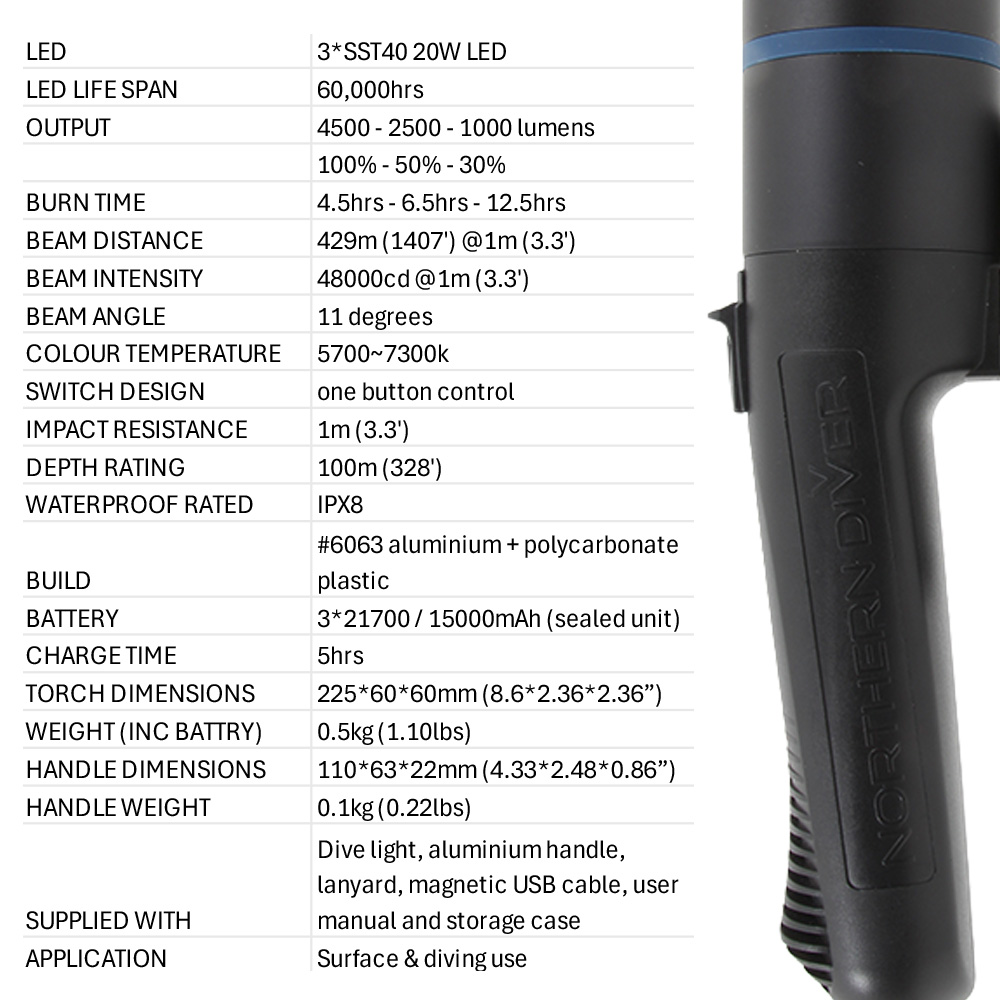

TECHNICAL SPECIFICATIONS
  • LED: 3 × SST40 20W LEDs
  • LED lifespan: 60,000 hours
  • Output: 4500 lumens (100%), 2500 lumens (50%), 1000 lumens (30%)
  • Burn time: 4.5 hours, 6.5 hours and 12.5 hours
  • Beam distance: 429m (1407ft) at 1m (3.3ft)
  • Beam intensity: 48,000cd at 1m (3.3ft)
  • Beam angle: 11°
  • Colour temperature: 5700–7300K
  • Switch design: One-button control
  • Impact resistance: 1m (3.3ft)
  • Depth rating: 100m (328ft)
  • Waterproof rating: IPX8
  • Construction: #6063 aluminium and polycarbonate plastic
  • Battery: 3 × 21700 cells, 15,000mAh sealed unit
  • Charge time: Approximately 5 hours

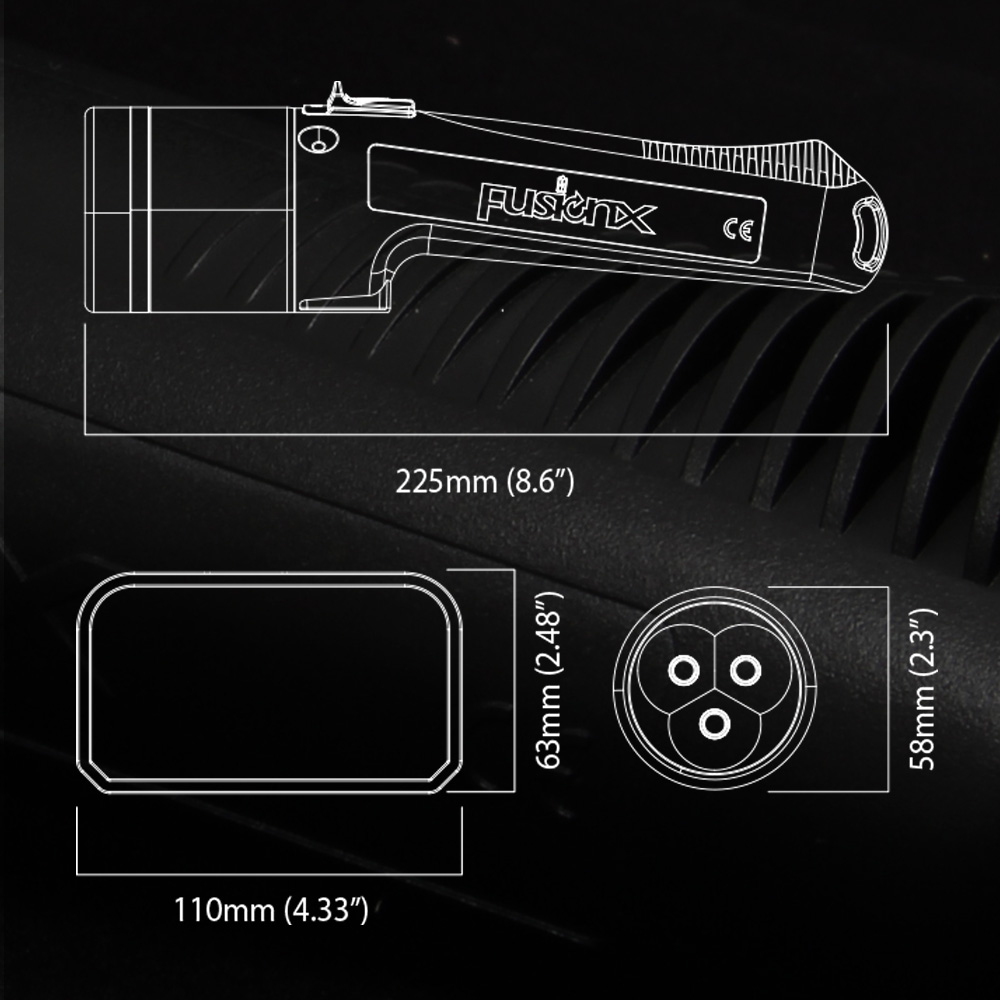

  • Torch dimensions: 225*60*60mm (8.86*2.36*2.36in)
  • Weight (including battery): 0.5kg (1.10lbs)
  • Handle dimensions: 110*63*22mm (4.33*2.48*0.86in)
  • Handle weight: 0.1kg (0.22lbs)
  • Application: Surface and diving use
---------------

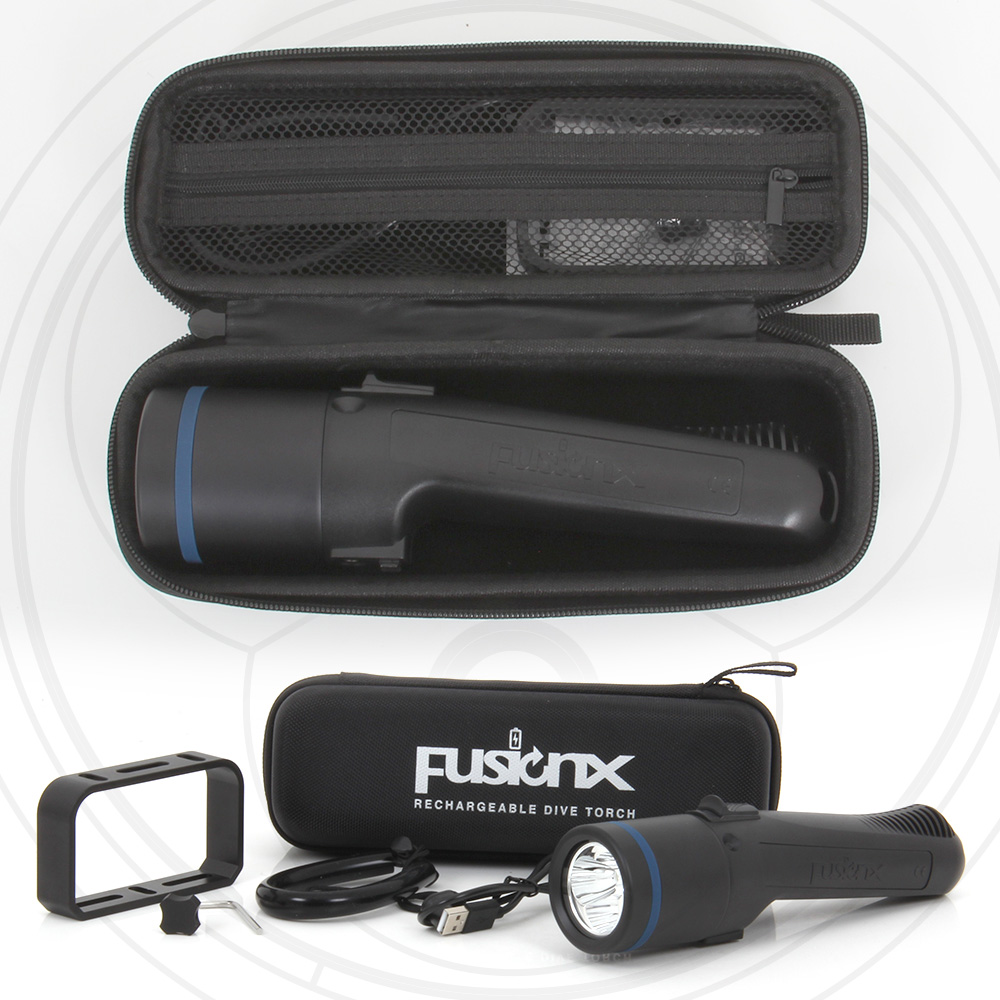

SUPPLIED WITH
  • Fusion X dive torch
  • Built-in battery
  • Aluminium handle
  • Wrist lanyard
  • Magnetic USB charging cable
  • User manual
  • Storage case

Key Features

  • Up to 4500 lumens output
  • Focused 11° beam
  • Beam distance up to 429m (1407ft)
  • Three SST40 LEDs
  • Up to 12.5 hours runtime
  • 15,000mAh sealed rechargeable battery pack
  • Magnetic USB charging

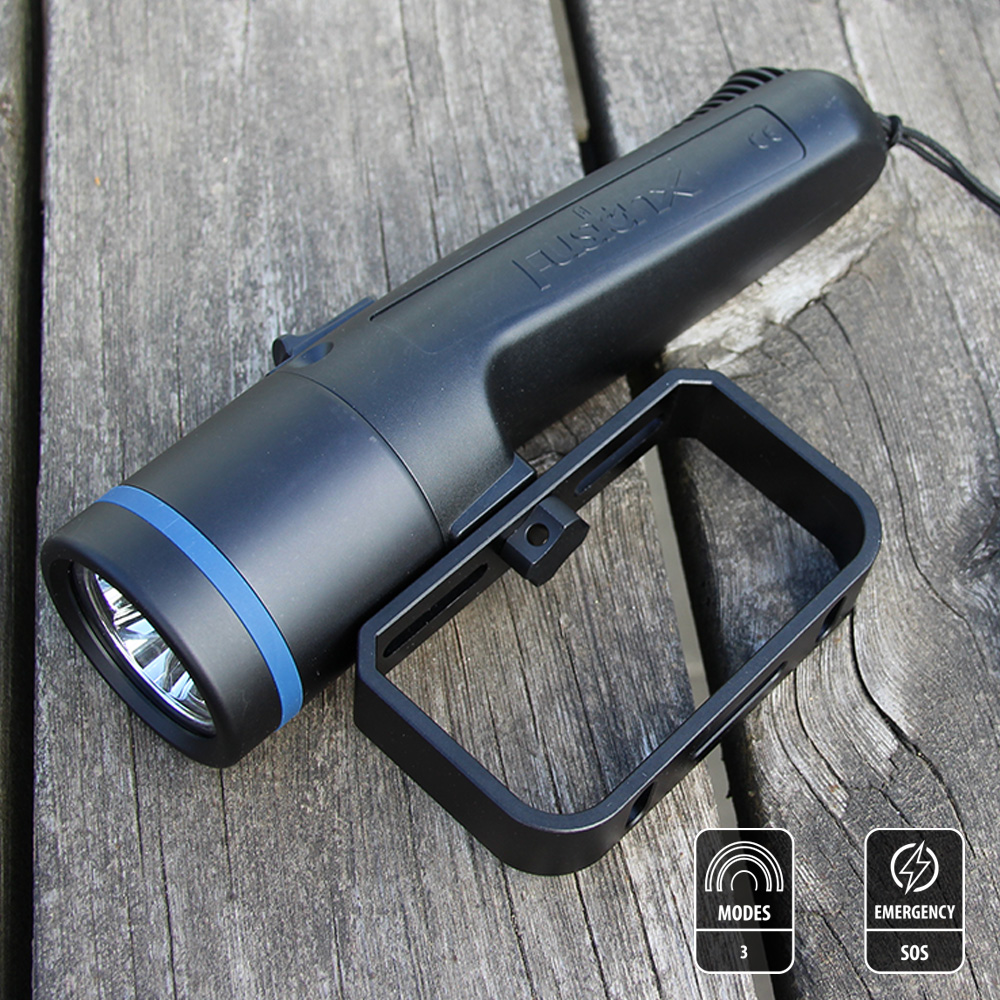

  • Removable aluminium handle for multiple grip options
  • Rugged aluminium and polycarbonate construction
  • Depth rated to 100m (328ft)
  • Suitable for diving and surface use

Downloads

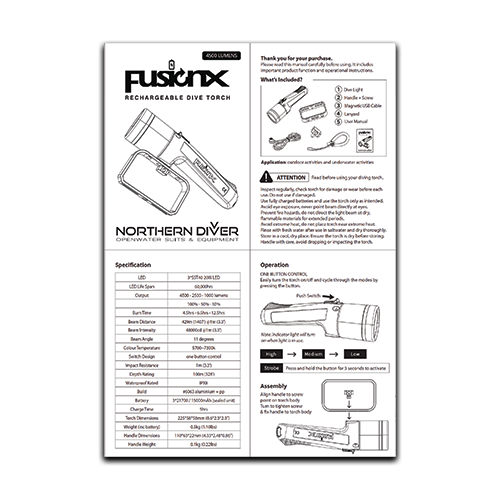

Fusion x user manual

Fusion x user manual

Fusion X Torch Datasheet

Fusion X Torch Datasheet
