Fusion X - Rechargeable Dive Torch
Description

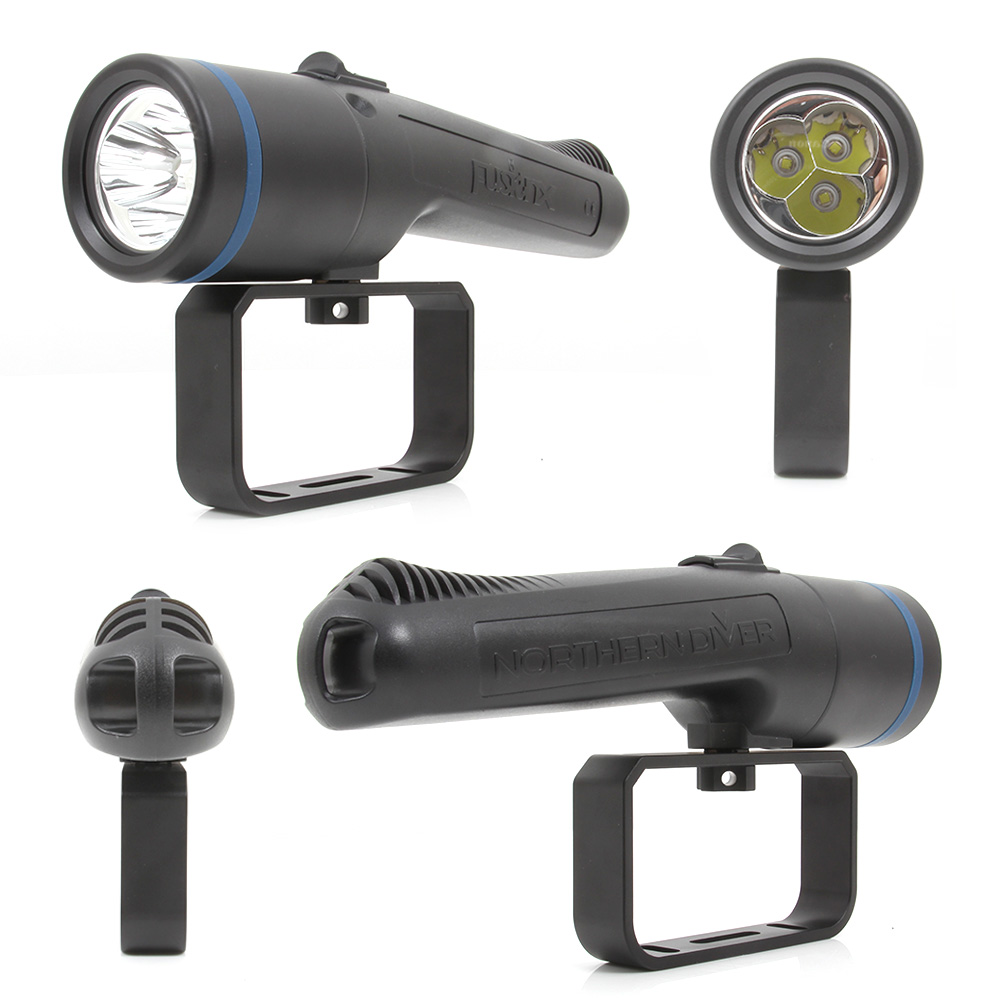

Fusion X Dive Torch

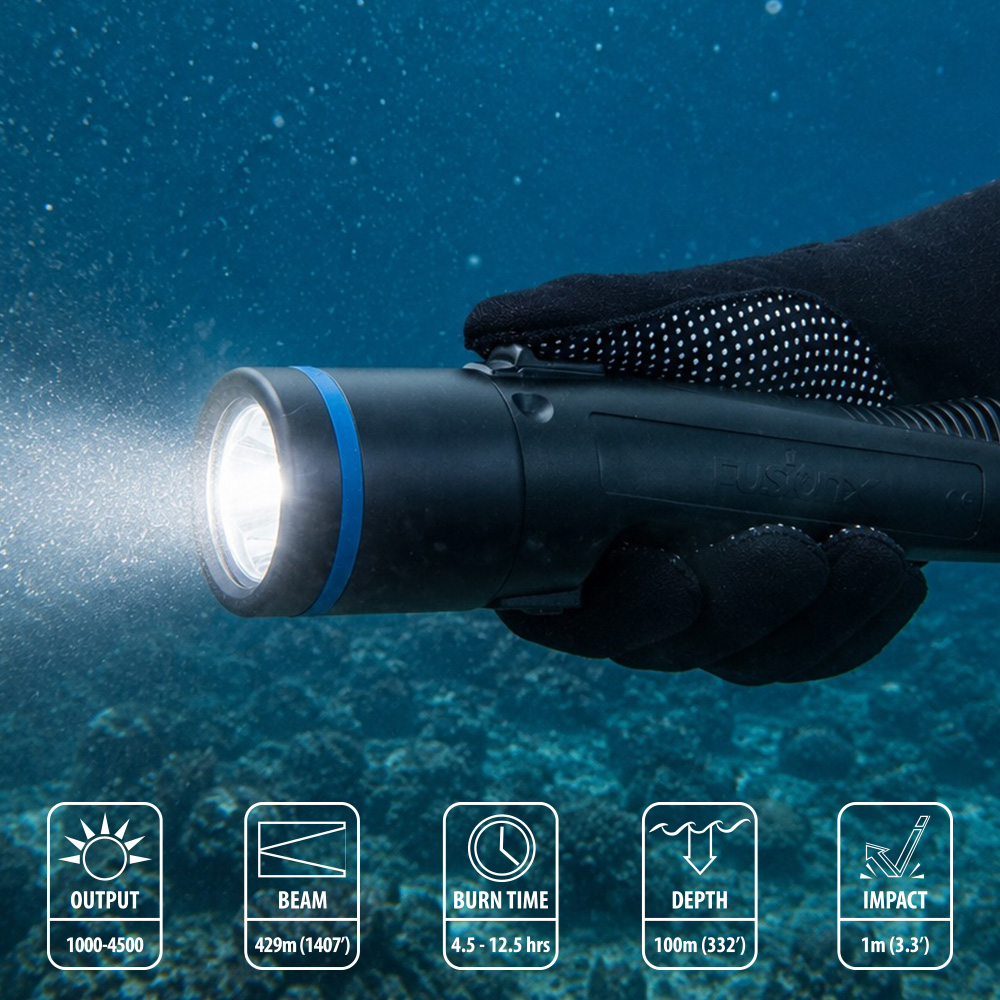

The Fusion X is a high-output rechargeable dive torch designed for surface and underwater applications, including recreational and technical diving, search operations, inspection, rescue and commercial use.

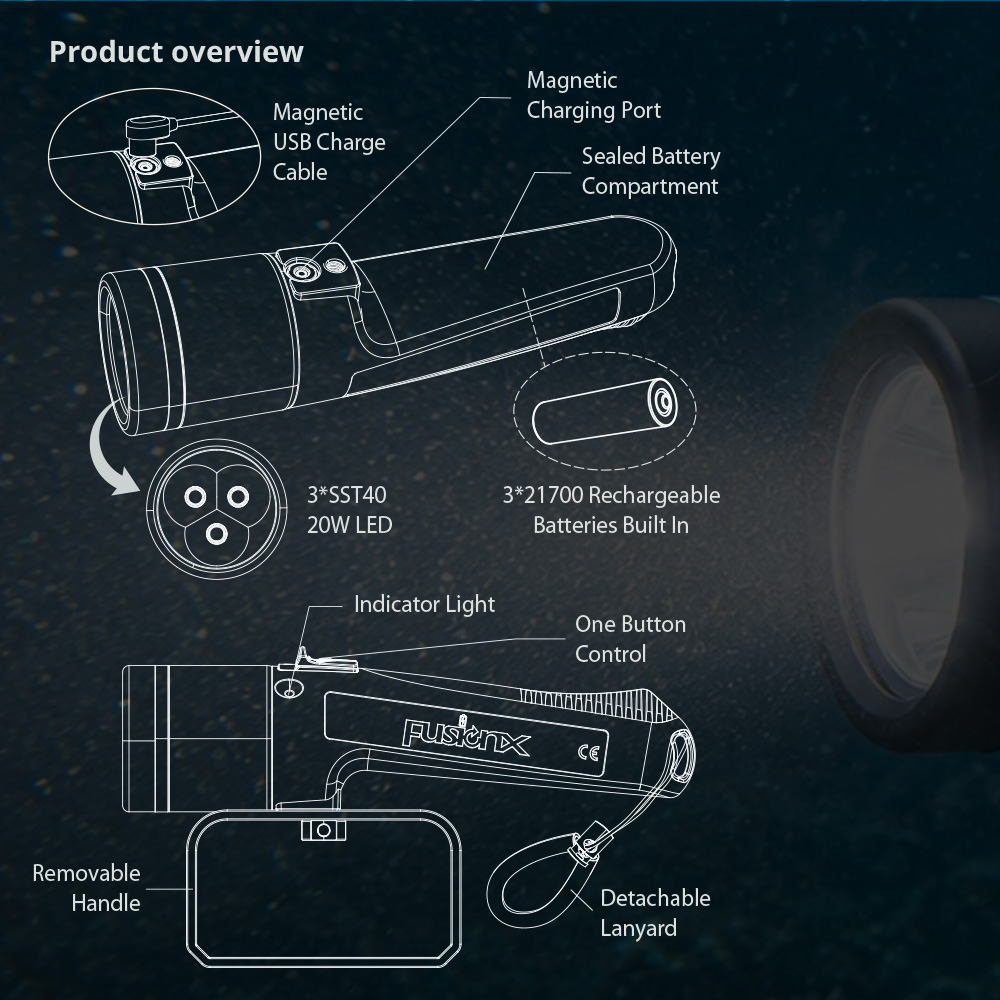

The torch uses three SST40 20W LEDs with a maximum output of 4500 lumens. Three output levels are available: 4500 lumens at 100%, 2500 lumens at 50% and 1000 lumens at 30%. The LEDs have a specified lifespan of 60,000 hours.
An 11° focused beam provides concentrated illumination, with a specified beam distance of up to 429m (1407ft) at 1m (3.3ft) and beam intensity of 48,000cd at 1m (3.3ft). The colour temperature is specified at 5700–7300K.
The torch housing is constructed from #6063 aluminium and polycarbonate plastic. It has an impact resistance rating of 1m (3.3ft), an IPX8 waterproof rating and a depth rating of 100m (328ft).

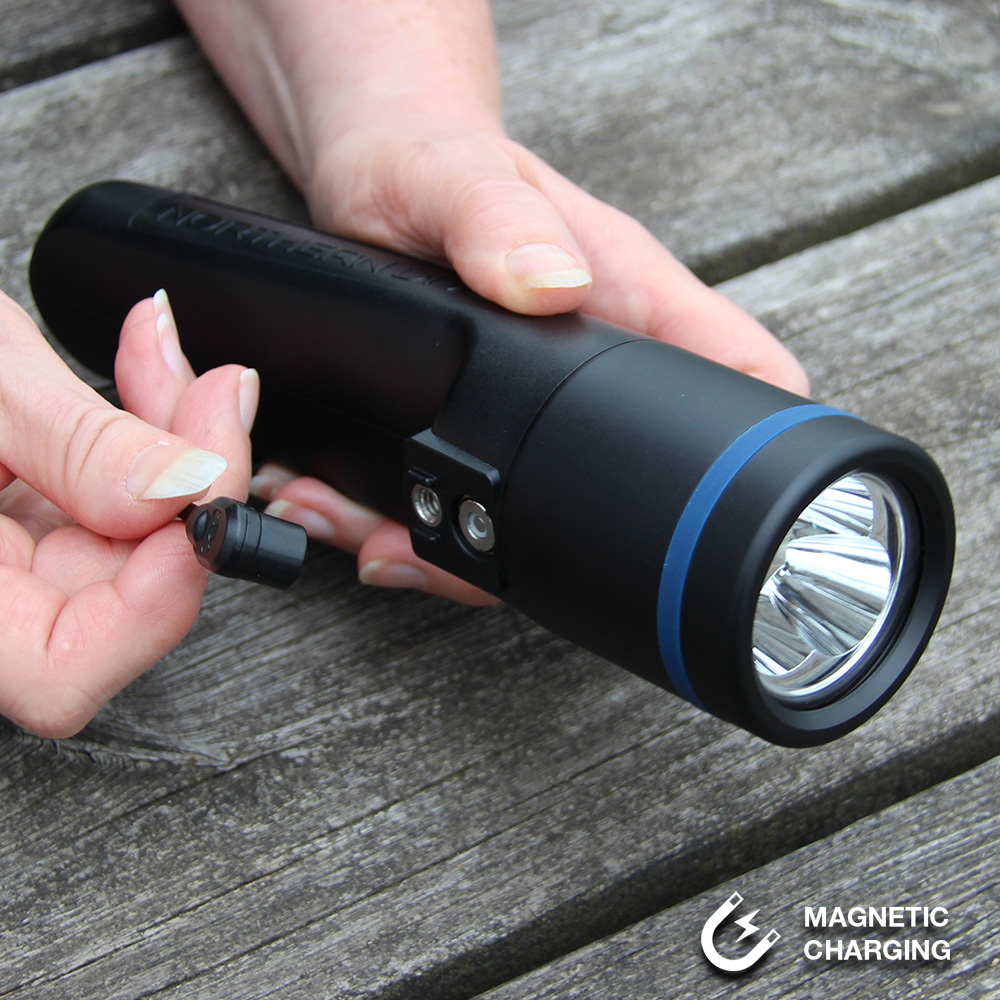

Power is provided by a sealed 15,000mAh battery unit comprising three 21700 cells. Specified runtime is 4.5 hours at 100% output, 6.5 hours at 50% output and 12.5 hours at 30% output. The battery is recharged using the supplied magnetic USB charging cable, with an approximate charging time of five hours.

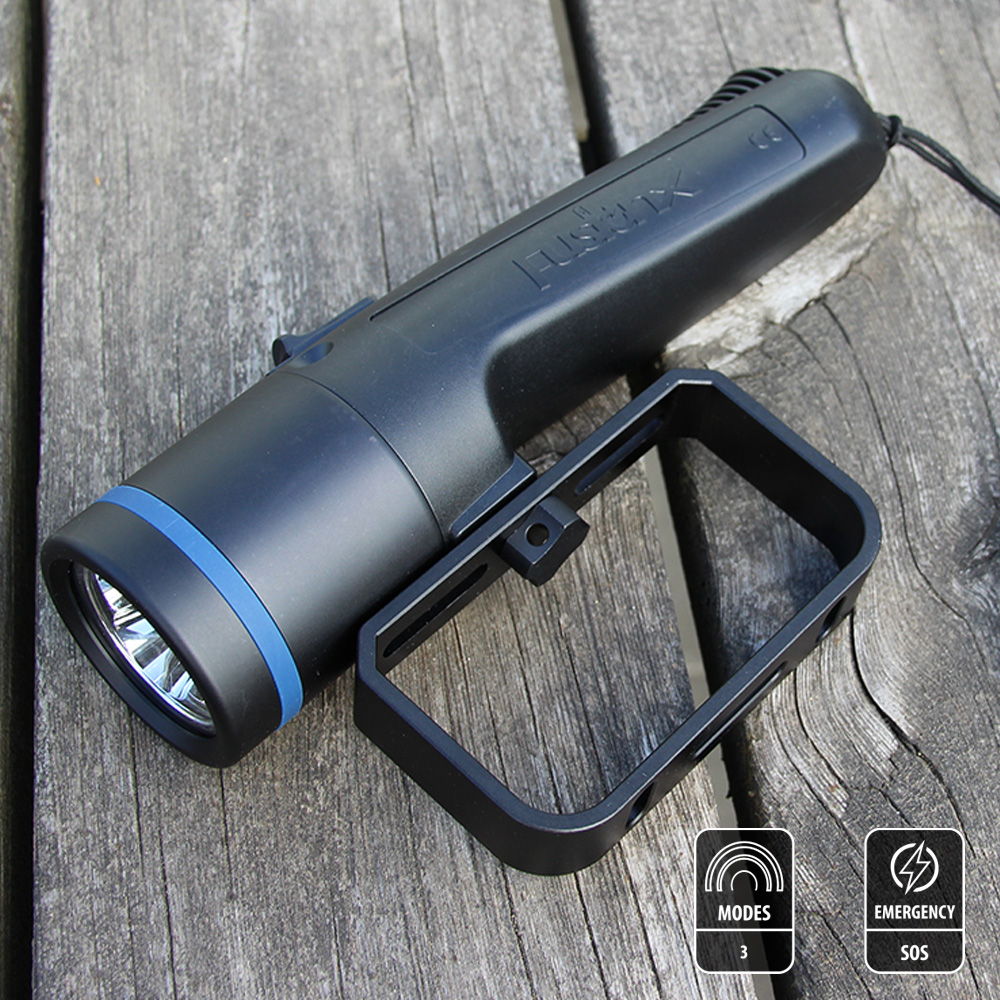

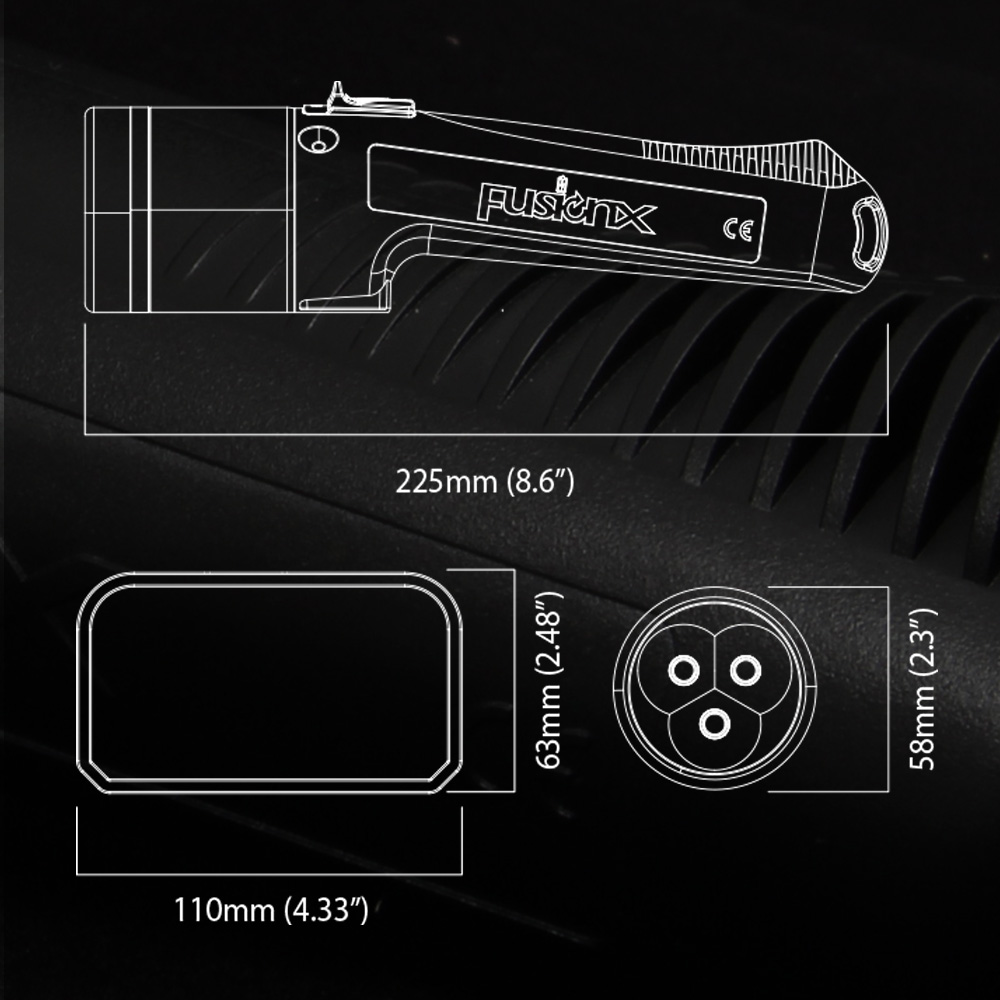

A single-button control is used to operate the torch and select the available output levels. The torch measures 225 × 60 × 60mm (8.86 × 2.36 × 2.36in) and weighs 0.5kg (1.10lbs) including the battery.

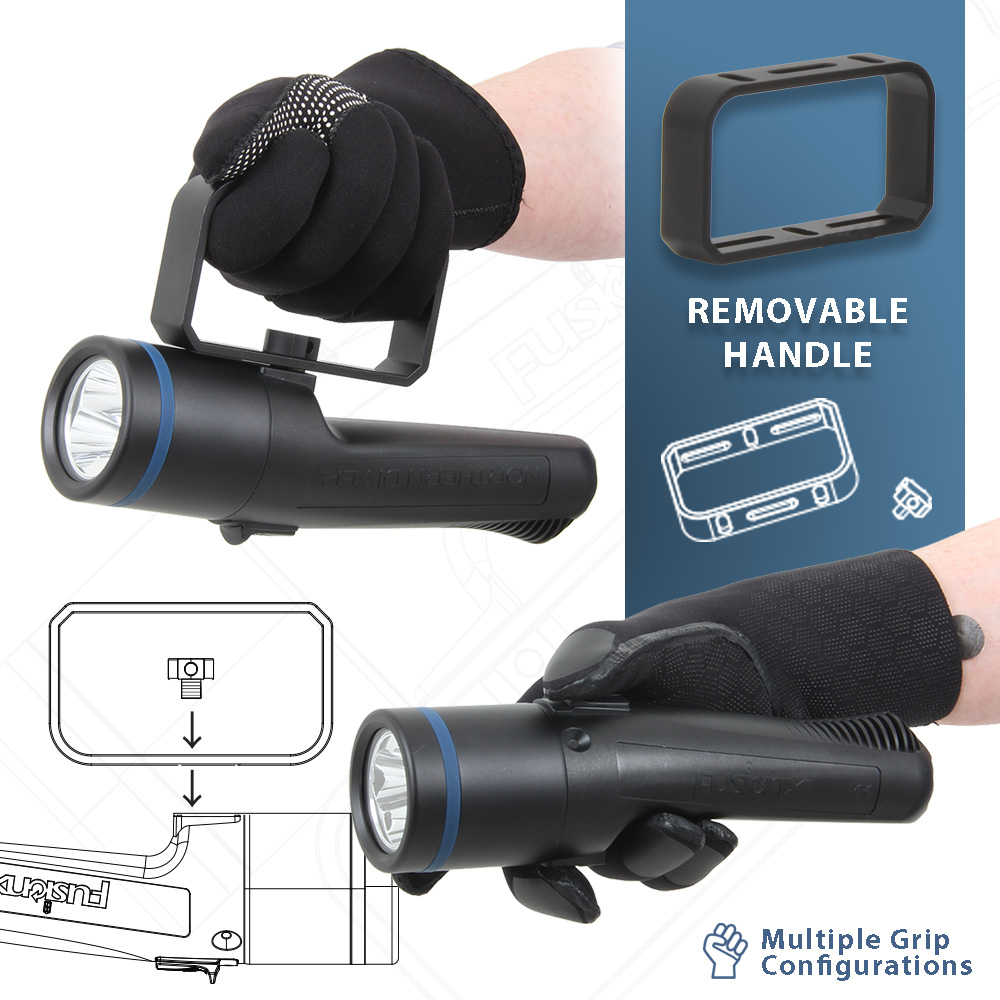

The supplied removable aluminium handle provides an alternative grip configuration. The handle measures 110 × 63 × 22mm (4.33 × 2.48 × 0.86in) and weighs 0.1kg (0.22lbs).
KEY FEATURES
KEY FEATURES
- 4500 Lumens Maximum Output - Three SST40 20W LEDs provide 4500 lumens at 100% output.
- 11° Focused Beam - Concentrated beam with a specified distance of up to 429m (1407ft)
- 48,000cd Beam Intensify - Specified at 1m (3.3ft)
- Three Output Levels - 4500, 2500 and 1000 lumen operating levels
- 15,000mAh Sealed Battery - Three 21700 cells in an integrated battery unit
- Up to 12.5 Hours Runtime - Runtime varies according to selected output level
- 100m Depth Rating - Rated for underwater operation to 100m (328ft)
- IPX8 Waterproof Rating - Wayerproof construction for surface and diving use
- #6063 Aluminium & Polycarbonate Construction - Combined aluminium and polycarbonate housing
- Removable Aluminium Handle - Supplied handle provides an alternative grip configuration for operation

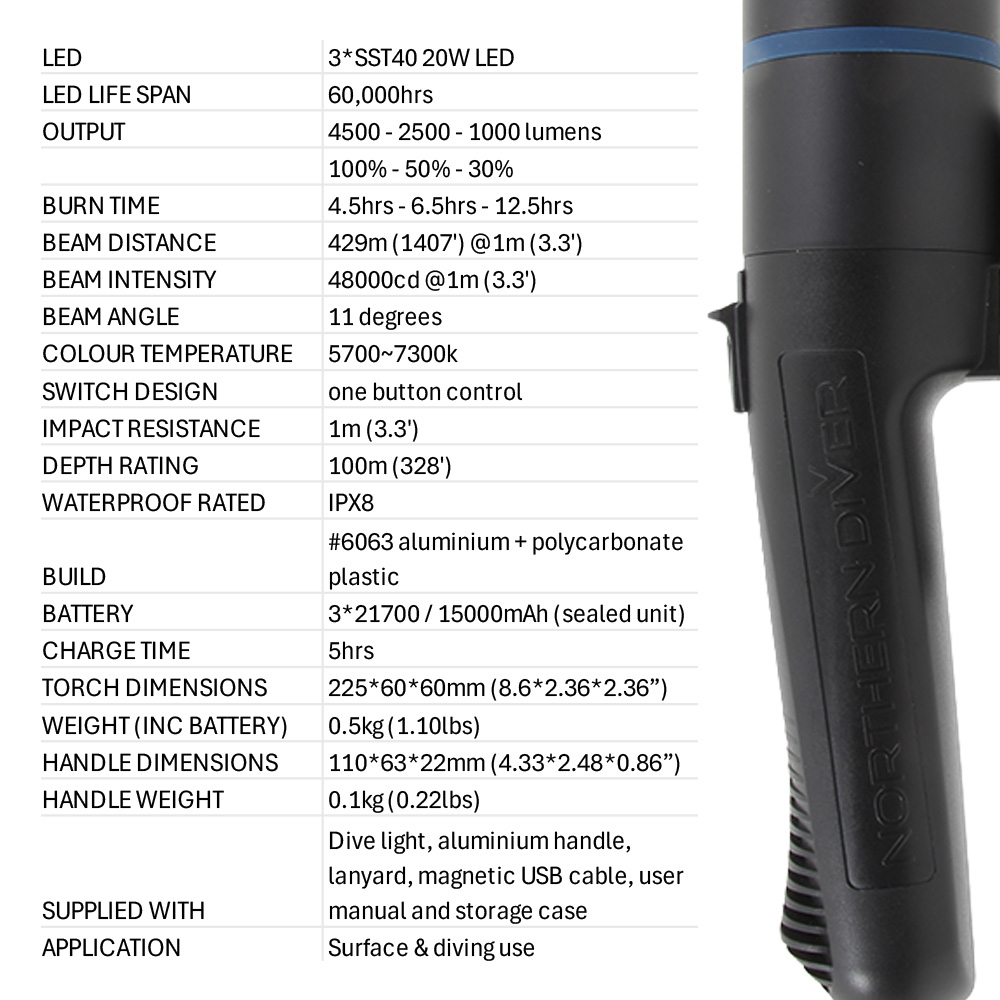

TECHNICAL SPECIFICATION
LED | 3 × SST40 20W LEDs
LED lifespan | 60,000 hours
Output – 100% | 4500 lumens
Output – 50% | 2500 lumens
Output – 30% | 1000 lumens
Burn time | 4.5 hours, 6.5 hours and 12.5 hours
Beam distance | 429m (1407ft) at 1m (3.3ft)
Beam intensity | 48,000cd at 1m (3.3ft)
Beam angle | 11°
Colour temperature | 5700–7300K
Switch design | One-button control
Impact resistance | 1m (3.3ft)
Depth rating | 100m (328ft)
Waterproof rating | IPX8
Construction | #6063 aluminium and polycarbonate plastic
Battery | 3 × 21700 cells, 15,000mAh sealed unit
Charge time | Approximately 5 hours
Torch dimensions | 225 × 60 × 60mm (8.86 × 2.36 × 2.36in)
Weight | 0.5kg (1.10lbs), including battery
Handle dimensions | 110 × 63 × 22mm (4.33 × 2.48 × 0.86in)
Handle weight | 0.1kg (0.22lbs)
Application | Surface and diving use
LED lifespan | 60,000 hours
Output – 100% | 4500 lumens
Output – 50% | 2500 lumens
Output – 30% | 1000 lumens
Burn time | 4.5 hours, 6.5 hours and 12.5 hours
Beam distance | 429m (1407ft) at 1m (3.3ft)
Beam intensity | 48,000cd at 1m (3.3ft)
Beam angle | 11°
Colour temperature | 5700–7300K
Switch design | One-button control
Impact resistance | 1m (3.3ft)
Depth rating | 100m (328ft)
Waterproof rating | IPX8
Construction | #6063 aluminium and polycarbonate plastic
Battery | 3 × 21700 cells, 15,000mAh sealed unit
Charge time | Approximately 5 hours
Torch dimensions | 225 × 60 × 60mm (8.86 × 2.36 × 2.36in)
Weight | 0.5kg (1.10lbs), including battery
Handle dimensions | 110 × 63 × 22mm (4.33 × 2.48 × 0.86in)
Handle weight | 0.1kg (0.22lbs)
Application | Surface and diving use

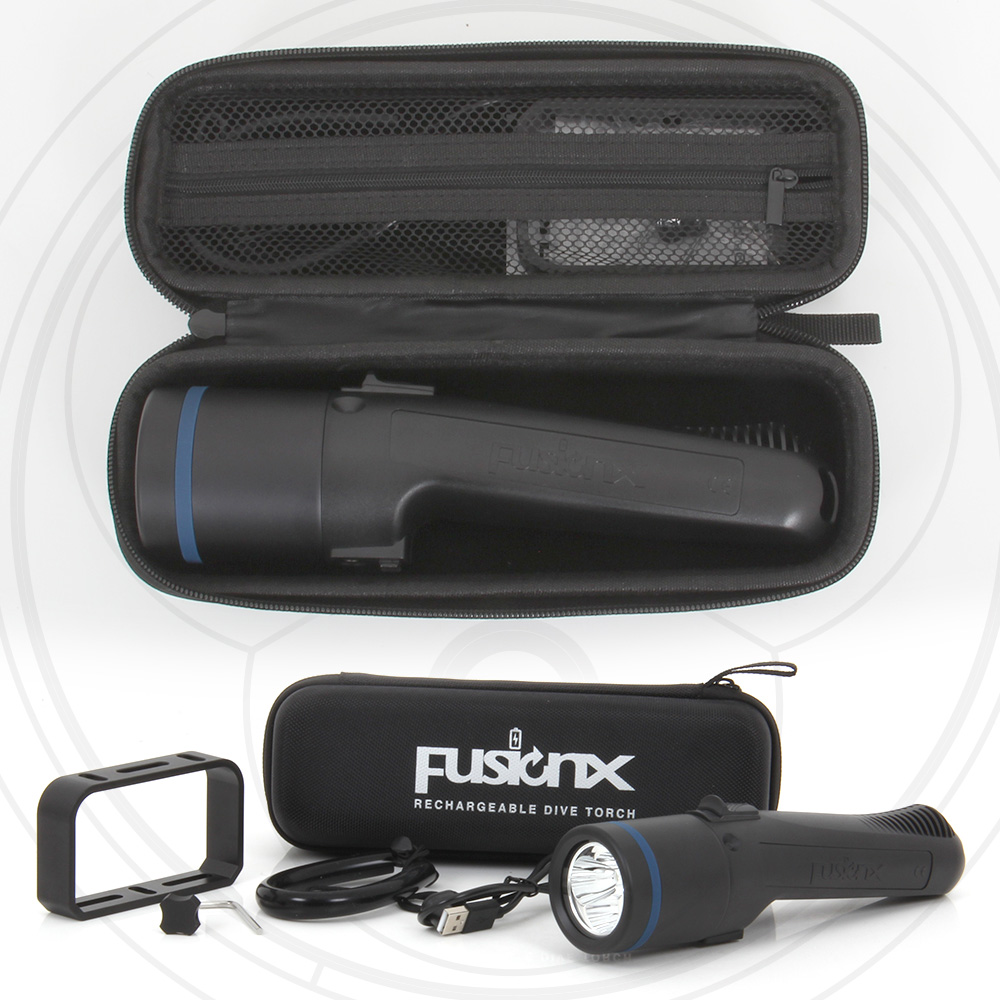

SUPPLIED WITH
- Fusion X dive torch
- Built-in battery
- Aluminium handle
- Wrist lanyard
- Magnetic USB charging cable
- User manual
- Storage case
Key Features
- 4500 Lumens Maximum Output
- 11° Focused Beam
- 48,000cd Beam Intensity
- Three Output Levels
- 15,000mAh Sealed Battery
- Up to 12.5 Hours Runtime
- 100m Depth Rating
- IPX8 Waterproof Rating
- #6063 Aluminium & Polycarbonate Construction
- Removable Aluminium Handle
