INST 10 - Compact Contents Gauge
Description

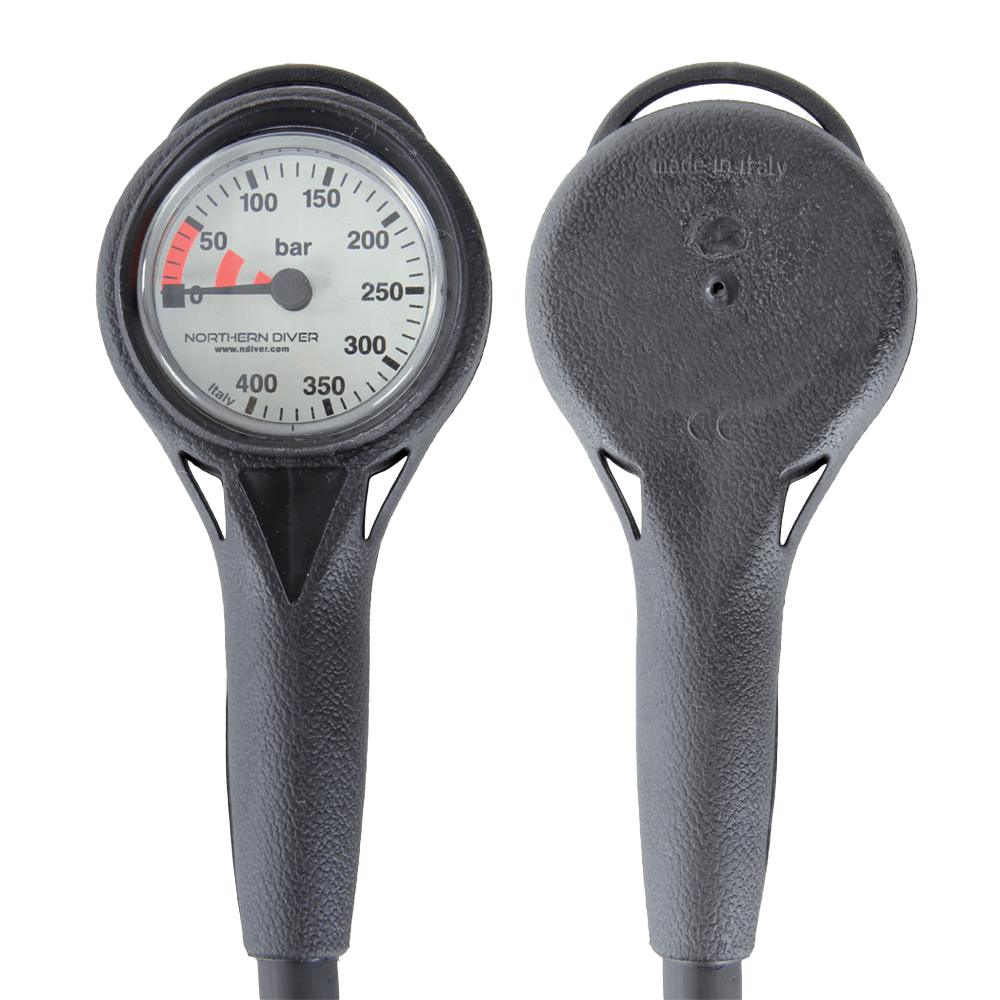

Northern Diver INST-10 Compact Contents Gauge
The Northern Diver INST-10 Compact Contents Gauge is a precision-engineered submersible pressure gauge (SPG) designed to provide accurate and reliable cylinder pressure monitoring in demanding diving environments. This compact gauge is ideal for military, commercial and recreational divers who require dependable performance beneath the surface.
Built around a one-piece nickel-plated brass body with a precision copper beryllium Bourdon tube mechanism, the INST-10 delivers consistent pressure readings up to 400 bar. The luminescent dial provides excellent visibility in low-light conditions, while the impact-resistant polycarbonate lens and protective swivel-mounted rubber housing help protect the gauge from knocks and abrasion during use.
Supplied with an 81cm (32") high-pressure thermoplastic hose, the INST-10 integrates easily into any scuba configuration while maintaining a streamlined profile. The clearly marked reserve zone below 50 bar allows divers to monitor remaining breathing gas and plan safe ascents with confidence.
Designed to meet the demands of professional and operational diving, the Northern Diver INST-10 combines durability, accuracy and reliability in a compact, easy-to-read pressure gauge.
Features
- Compact submersible pressure gauge (SPG)
- Pressure range up to 400 bar
- One-piece nickel-plated brass body
- Copper beryllium Bourdon tube mechanism
- Luminescent dial for excellent readability
- Polycarbonate impact-resistant lens
- Protective swivel-mounted rubber housing
- 81cm (32") high-pressure thermoplastic hose
- Clearly marked reserve zone below 50 bar
Ideal For
- Military diving operations
- Commercial diving
- Public safety diving
- Dive schools and training centres
- Recreational scuba diving
- Professional diving applications
- Equipment servicing and replacement
Specifications
Type | Submersible Pressure Gauge (SPG)
Maximum Pressure | 400 bar
Pressure Scale | 0–400 bar
Graduation | 10 bar increments
Reserve Zone | 50–0 bar (red)

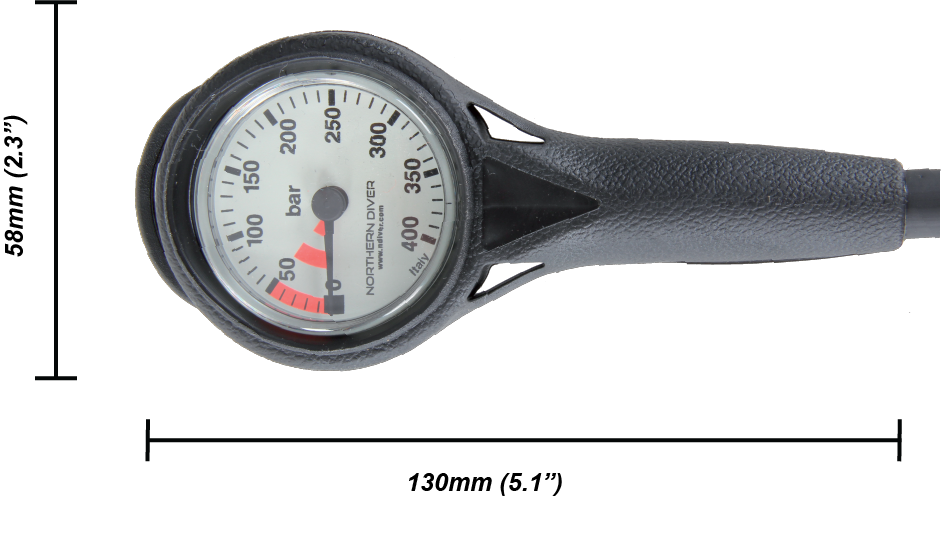

Face Diameter | 42mm
Overall Diameter | 50mm
Hose Length | 81cm (32")
Weight | 275g
Body Material | Nickel-plated brass
Pressure Mechanism | Copper beryllium Bourdon tube
Lens Material | Polycarbonate
Housing | Swivel-mounted protective rubber boot
Certification | EN250:2014 & Regulation (EU) 2016/425
Maximum Pressure | 400 bar
Pressure Scale | 0–400 bar
Graduation | 10 bar increments
Reserve Zone | 50–0 bar (red)
Face Diameter | 42mm
Overall Diameter | 50mm
Hose Length | 81cm (32")
Weight | 275g
Body Material | Nickel-plated brass
Pressure Mechanism | Copper beryllium Bourdon tube
Lens Material | Polycarbonate
Housing | Swivel-mounted protective rubber boot
Certification | EN250:2014 & Regulation (EU) 2016/425
Key Features
- Measures cylinder pressures up to 400 bar
- Compact, low-profile design
- One-piece nickel-plated brass construction
- Precision copper beryllium Bourdon tube mechanism
- Easy-to-read luminescent dial
- Impact-resistant polycarbonate lens
- Protective rubber boot with swivel connection
- High-pressure 810mm (32") thermoplastic hose included
- Certified to EN250:2014 and Regulation (EU) 2016/425
