INST 12 - Compact Contents and Depth Gauge
Description

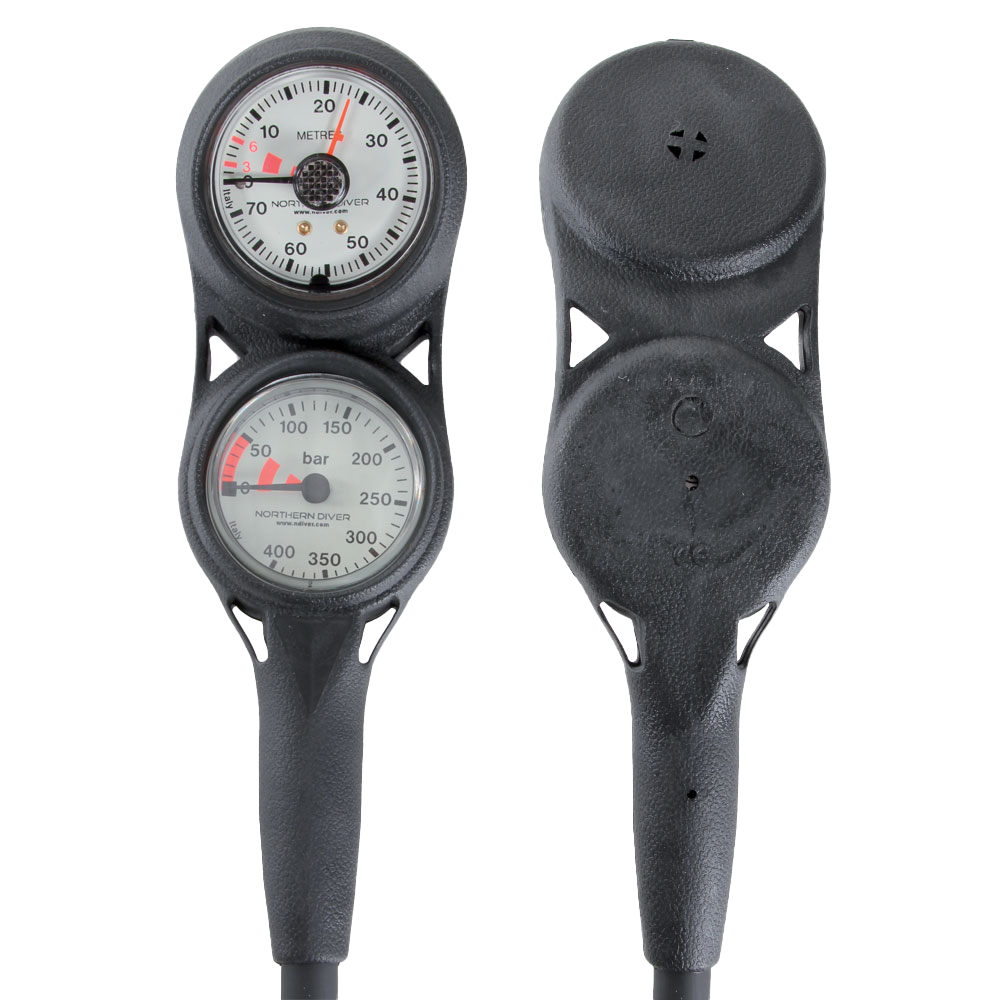

Northern Diver INST-12 Compact Contents & Depth Gauge
The Northern Diver INST-12 Compact Contents & Depth Gauge is a durable, high-quality two-gauge console designed to provide reliable monitoring of both cylinder pressure and dive depth throughout every dive. This compact console combines a 400 bar submersible pressure gauge (SPG) with a maximum depth indicator (MDI), making it an essential instrument for recreational, commercial and military divers.
Built with a one-piece nickel-plated brass gauge body and a copper beryllium Bourdon tube mechanism, the INST-12 delivers dependable accuracy in demanding underwater environments. The easy-to-read luminescent dials improve visibility in low-light conditions, while impact-resistant polycarbonate lenses and a rugged protective rubber housing help withstand the rigours of regular diving operations.
Supplied with an 81cm (32") high-pressure thermoplastic hose, the compact design keeps your equipment streamlined without compromising readability. The depth gauge measures to 70 metres and includes a maximum depth indicator, while the pressure gauge displays cylinder pressure up to 400 bar with a clearly marked reserve zone below 50 bar.
FEATURES
- Compact two-gauge dive console
- 400 bar submersible pressure gauge (SPG)
- 70 metre maximum depth indicator (MDI)
- Precision Italian-manufactured instrument
- Nickel-plated brass gauge body
- Copper beryllium Bourdon tube mechanism
- Luminescent gauge faces for improved visibility
- Impact-resistant polycarbonate lenses
- Protective rubber console boot
- 81cm (32") high-pressure thermoplastic hose
SPECIFICATIONS
Console Type: Contents & Depth Gauge
Console Type: Contents & Depth Gauge
Pressure Gauge Range: 0–400 bar
Reserve Zone: 50–0 bar (red)
Depth Gauge Range: 0–70 metres

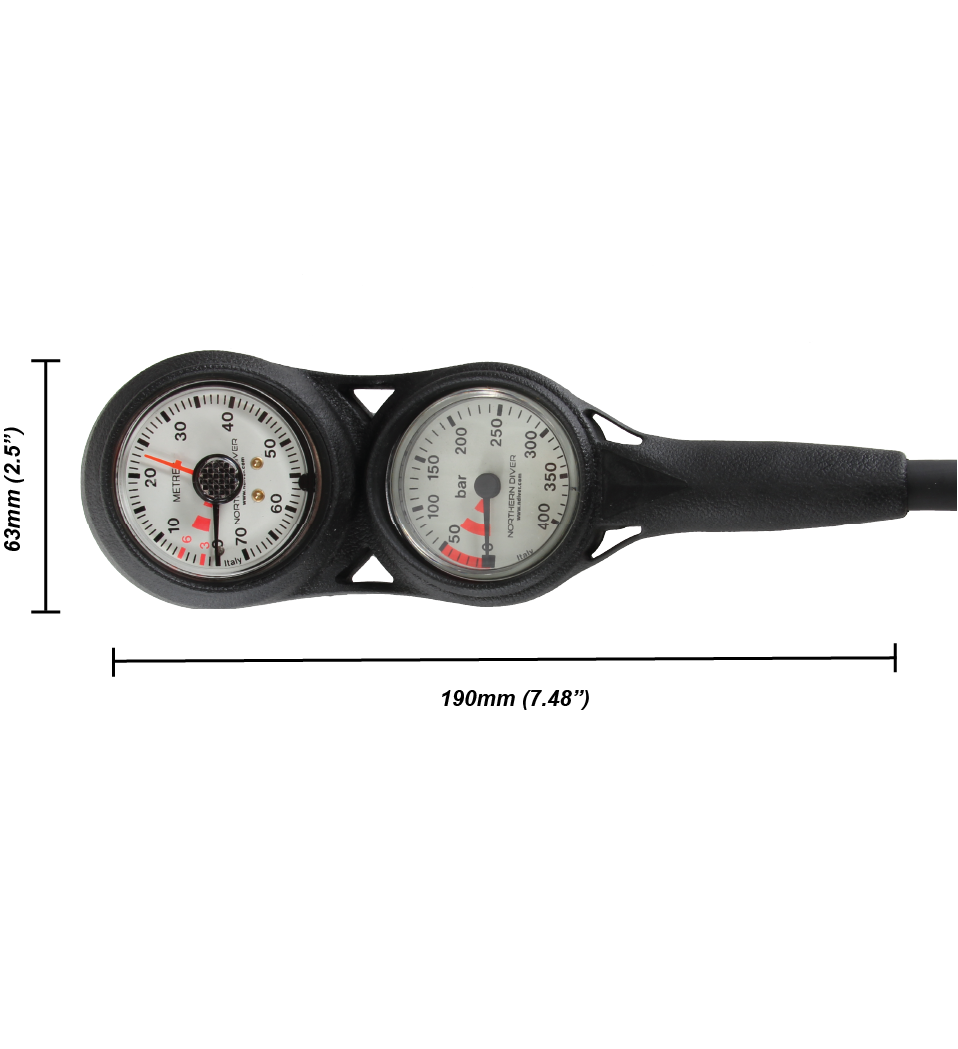

Face Diameter: 42mm
Gauge Diameter: 50mm
Hose Length: 81cm (32")
Weight: 389g
Gauge Body: Nickel-plated brass
Pressure Mechanism: Copper beryllium Bourdon tube
Lens Material: Polycarbonate
Certification: EN250:2014 & Regulation (EU) 2016/425
IDEAL FOR
- Military diving operations
- Commercial diving
- Public safety diving
- Professional dive teams
- Recreational scuba diving
- Dive schools and centres
- Technical diving
- General underwater operations
Key Features
- 400 bar submersible pressure gauge
- 70 metre depth gauge with maximum depth indicator
- Precisions Italian-made manufactured construction
- One-piece nickel-plated brass gauge body
- Copper beryllium Bourdon tube pressure mechanism
- Easy-to-read luminescent dials
- Polycarbonate impact-resistant gauge windows
- Protective rubber housing for enhanced durability
- EN250:2014 and EU 2016/425 certified
