NIMROD V2 - Underwater Navigation & Sonar System
Description

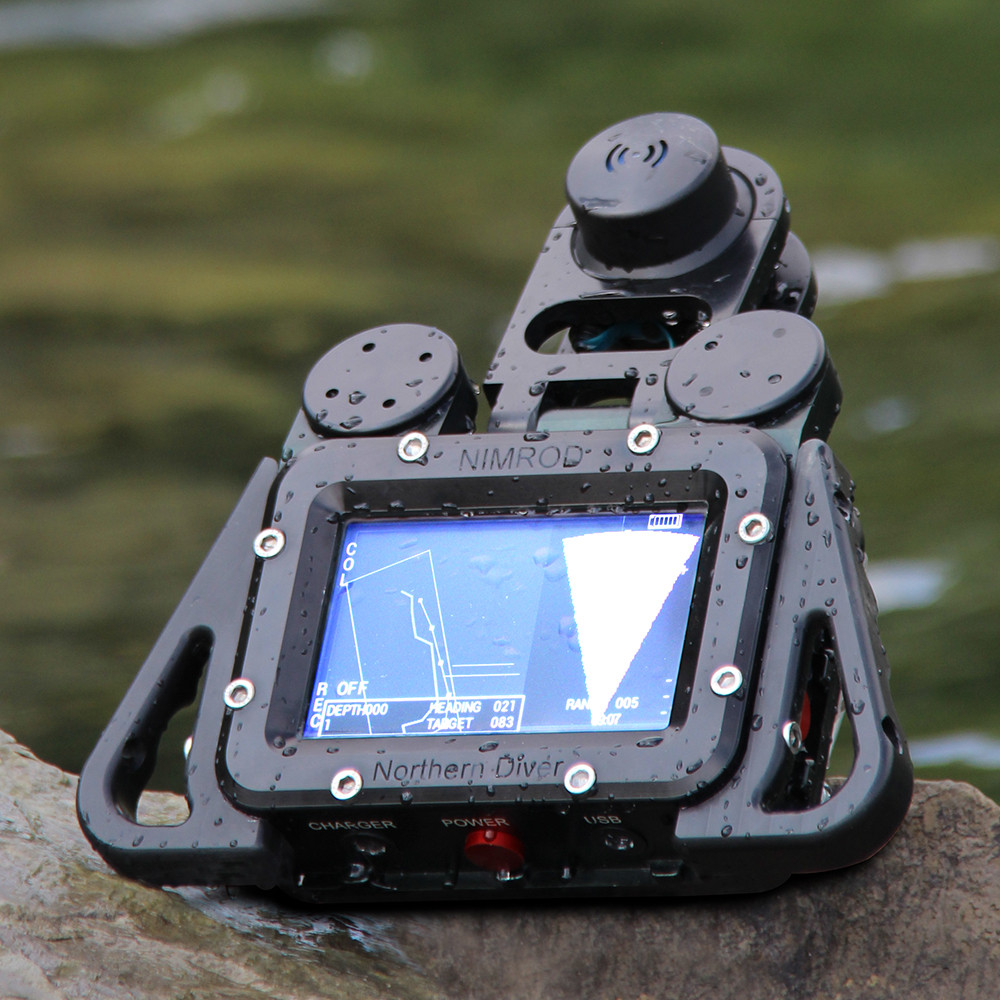

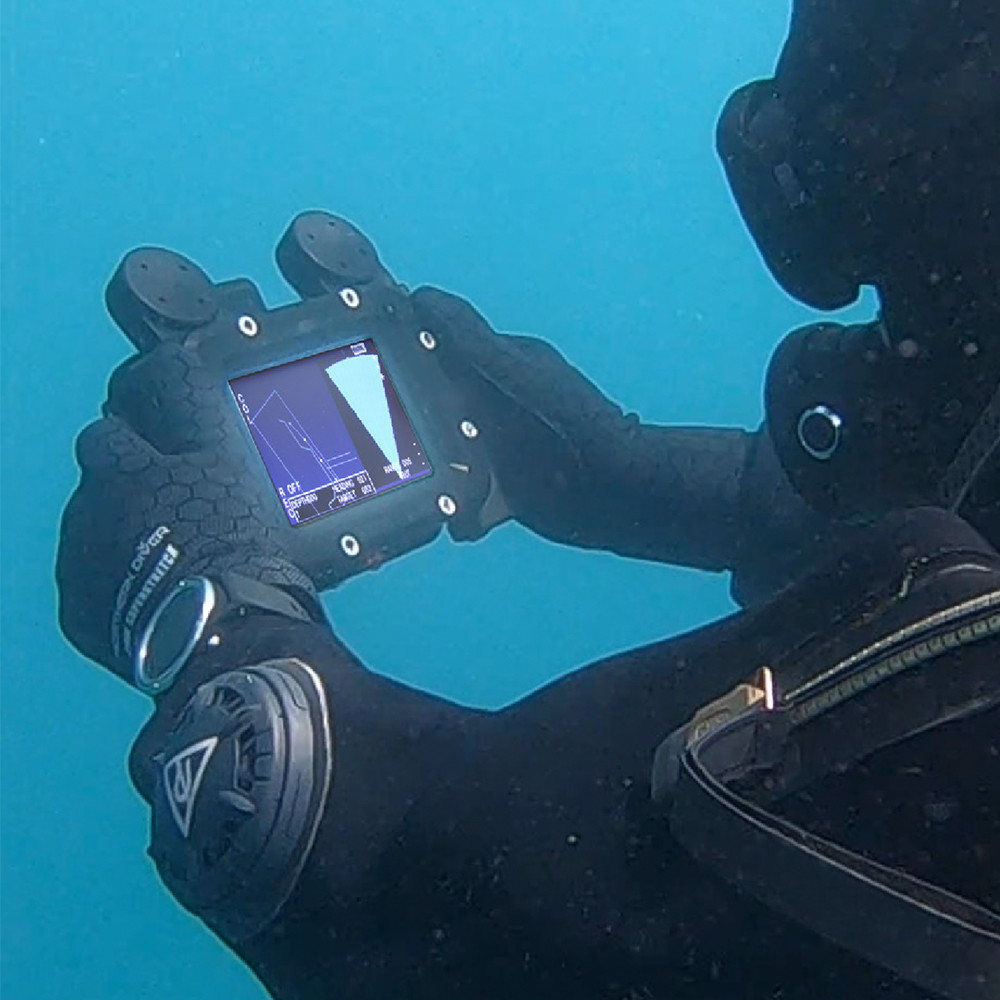

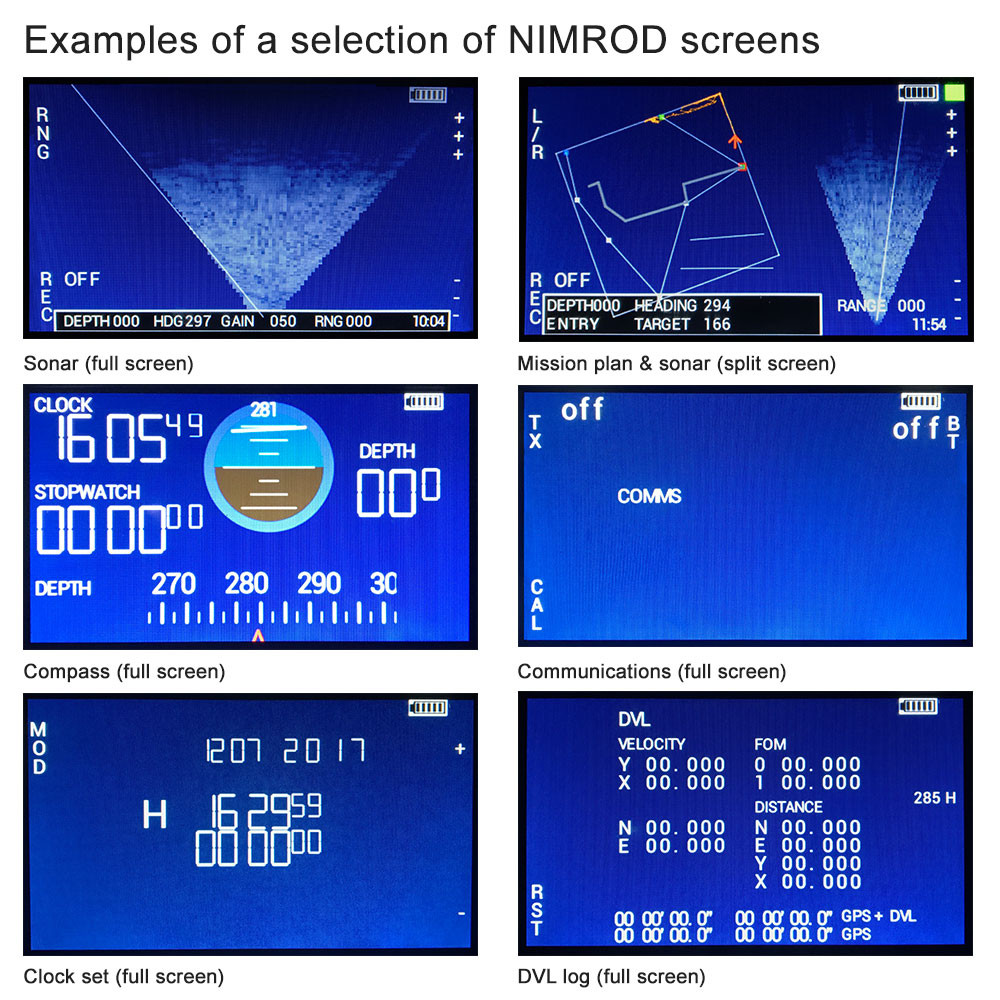

A compact and light-weight, modular, diver hand-held, underwater sonar and navigation console.
The system combines standard:
• GPS receivers – internal & external
• 15m tether and float
• Mission planning
• Digital compass/gyroscope
• Depth reading
• Clock/stopwatch
Typical uses are the search & relocation of the following:
• Unexploded ordnance by navy mine clearance divers
• Commercial EOD divers
• Seabed infrastructure within the offshore oil & gas environment (e.g. pipelines, well heads and structures)
• Lost property, vehicles, aircraft, wrecks by police or search and rescue divers
• Seabed/lake-bed antiquities by marine biologists, archaeologists, sport divers, etc.
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯

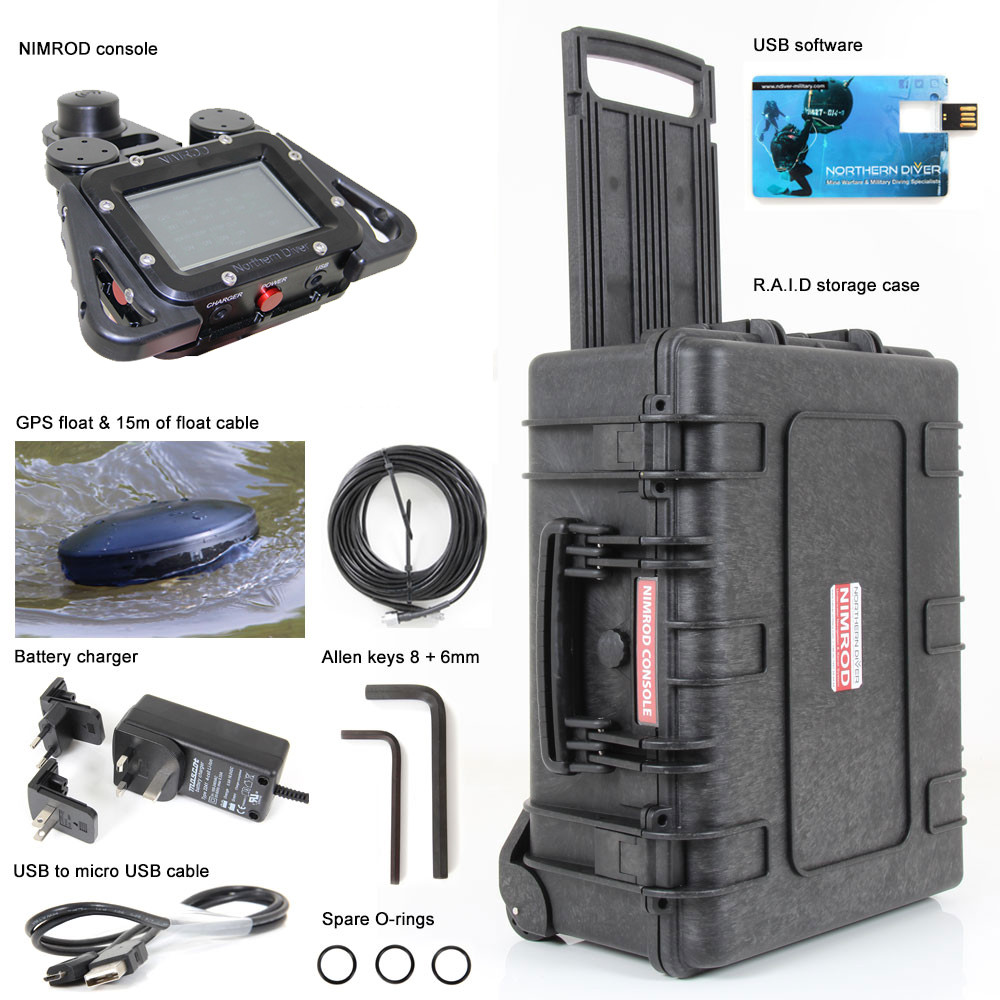

What's included with the NIMROD V2?
What's included with the NIMROD V2?
• NIMROD unit
• GPS float (stealth size and colouring)
• 15m of GPS float cable
• Battery charger

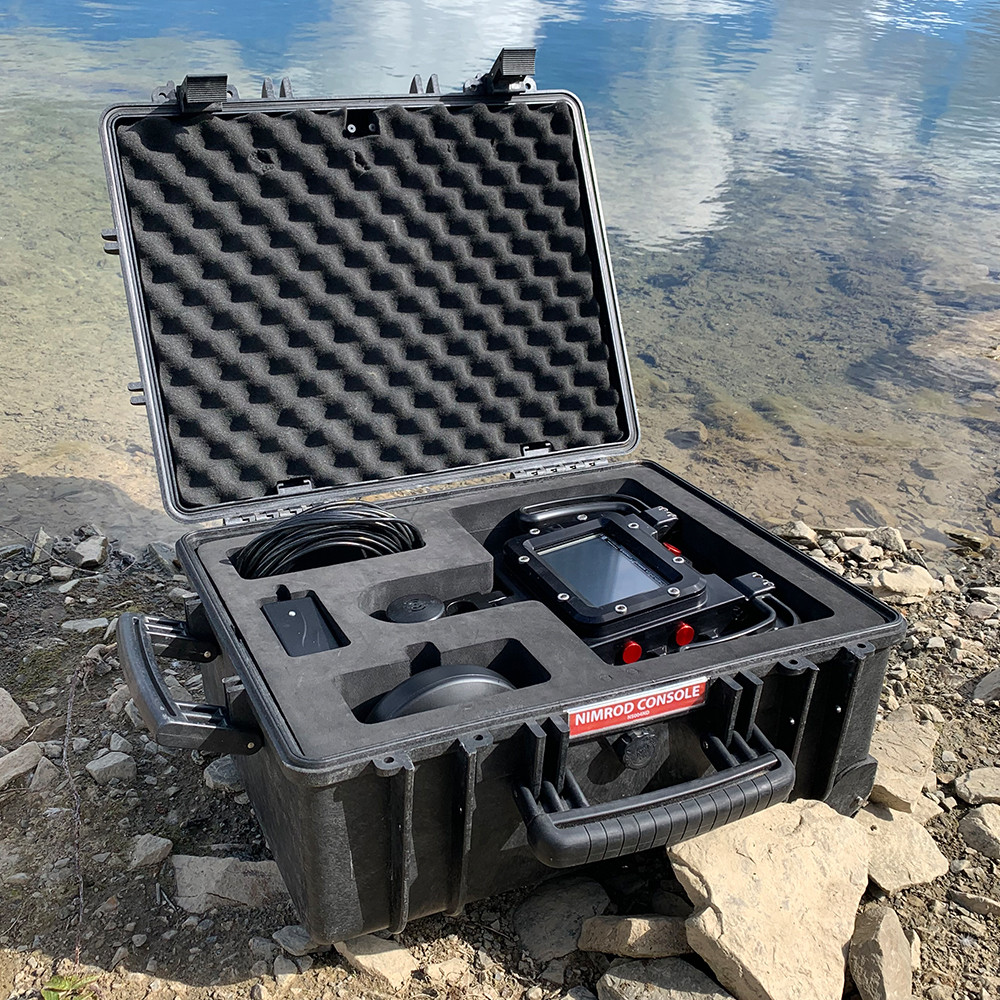

• R.A.I.D storage case
• USB to micro USB cable
• Spare O-rings
• User instructions
• USB software
• Allen keys (8mm + 6mm)
OPTIONAL ADDITIONS
OPTIONAL ADDITIONS
• NavQuest 600 micro DVL
• Single Beam Sonar
HOUSING

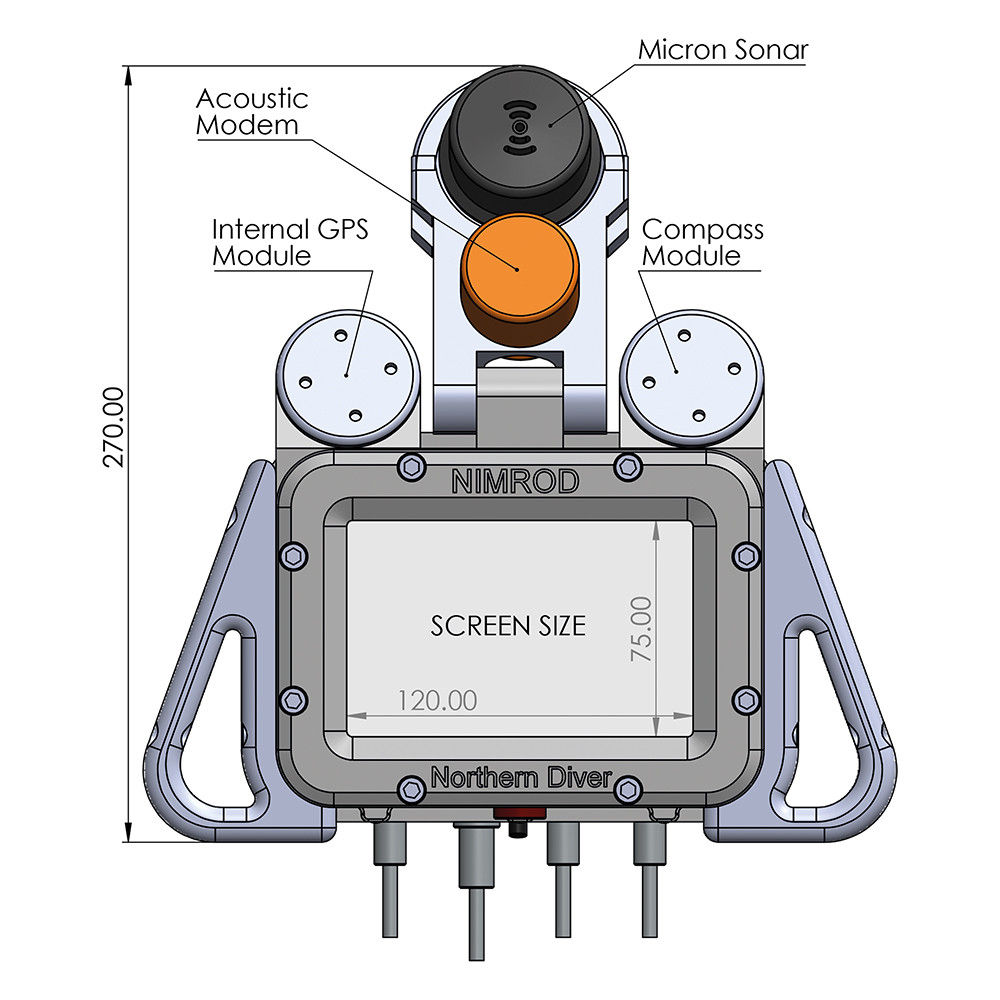

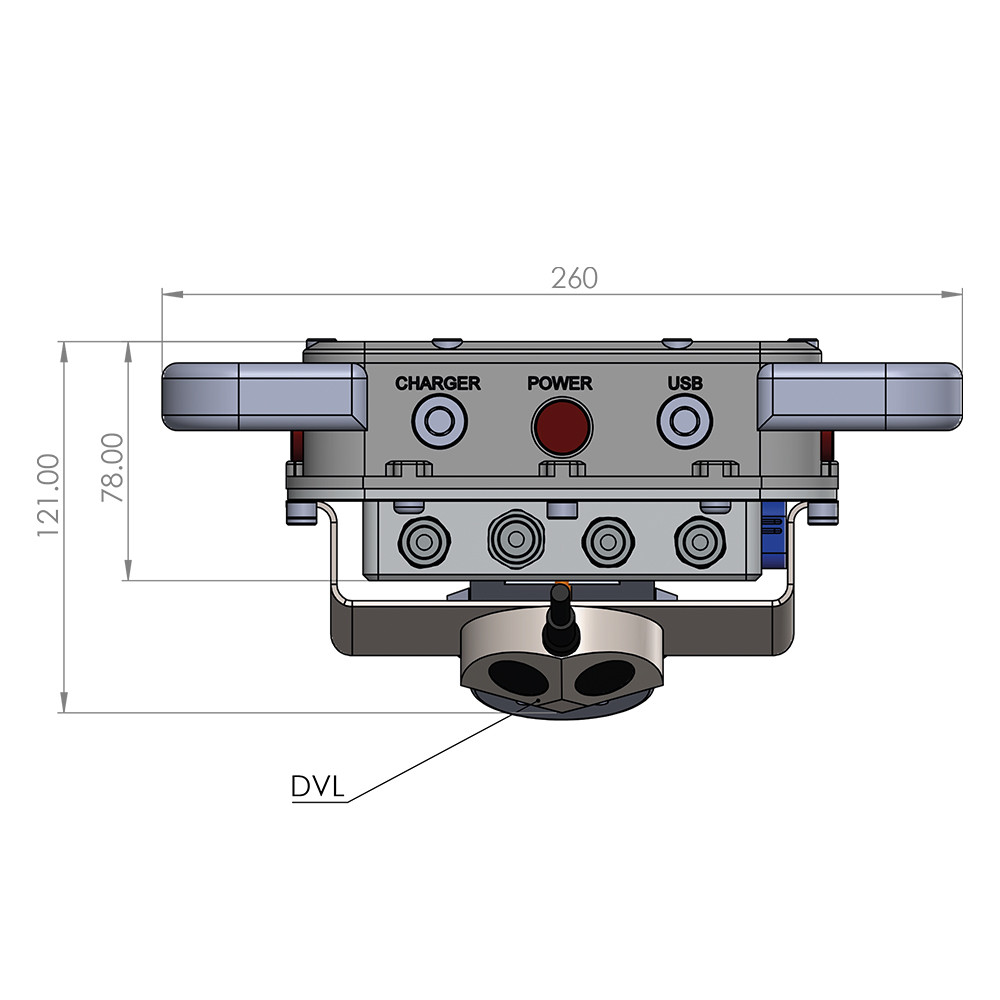

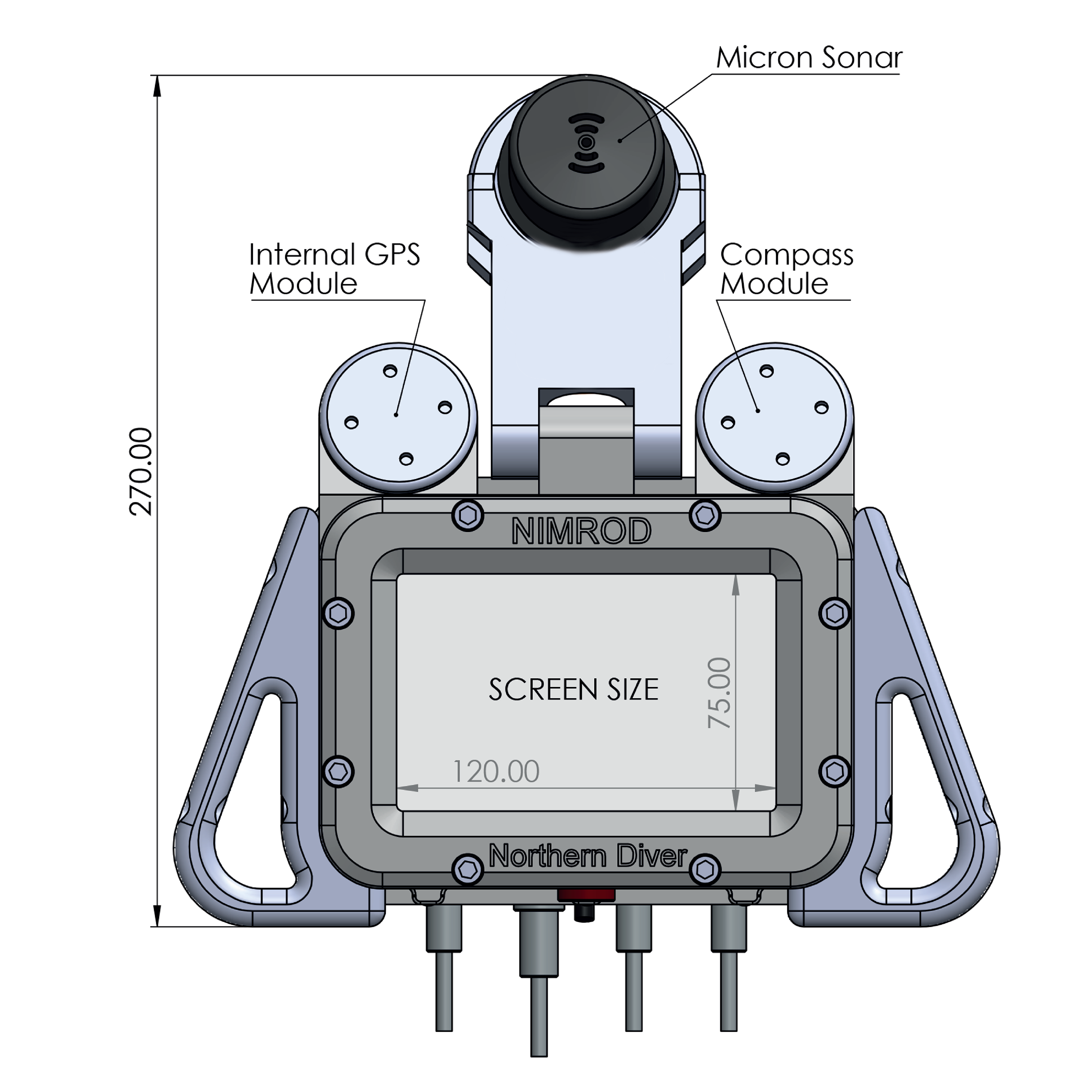

• Dimensions (Console): 169mm(L) x 134mm(W) x 76mm(H)
• Weight: ~2.3kg in air, ~0.6kg in water (inc battery)
• Weight: (with Sonar & DVL) ~3.75kg in air, ~0.8kg in water (inc battery)
• Construction: aluminium (AL 6061-T6)
• Finish: black hard anodised

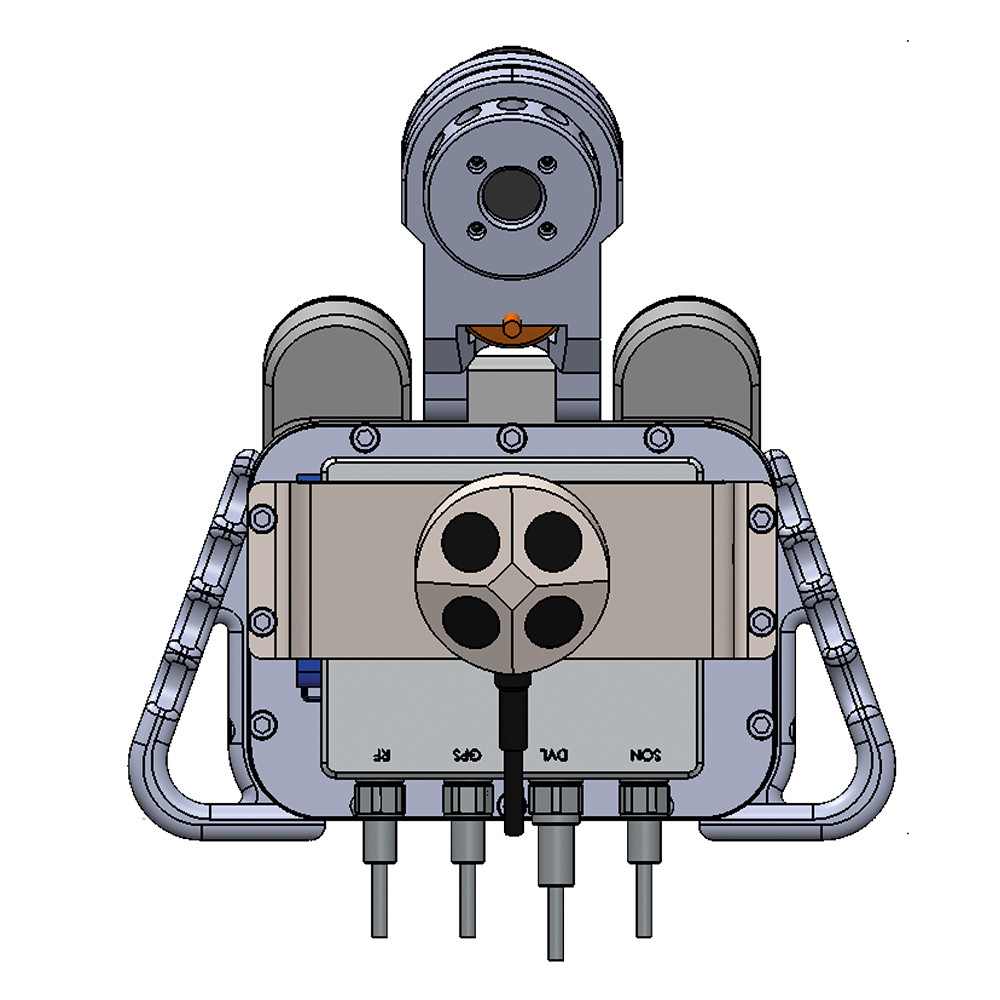

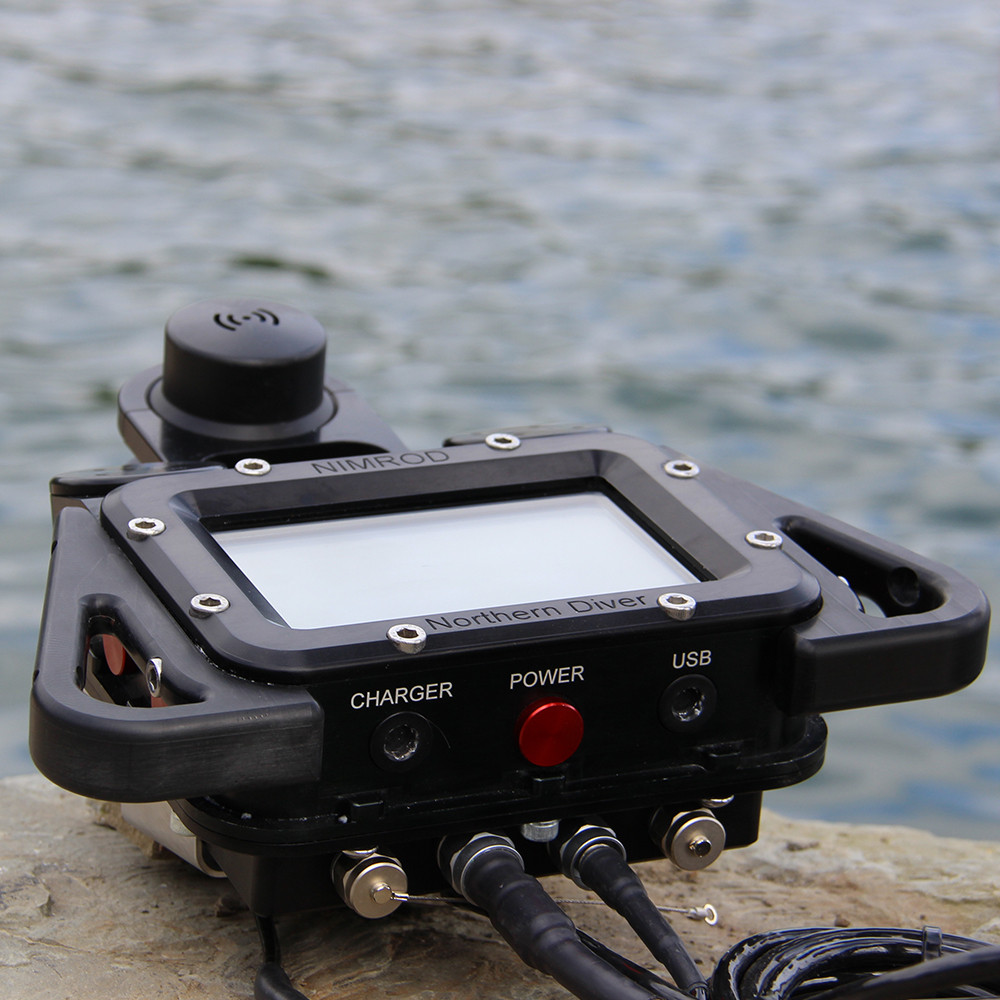

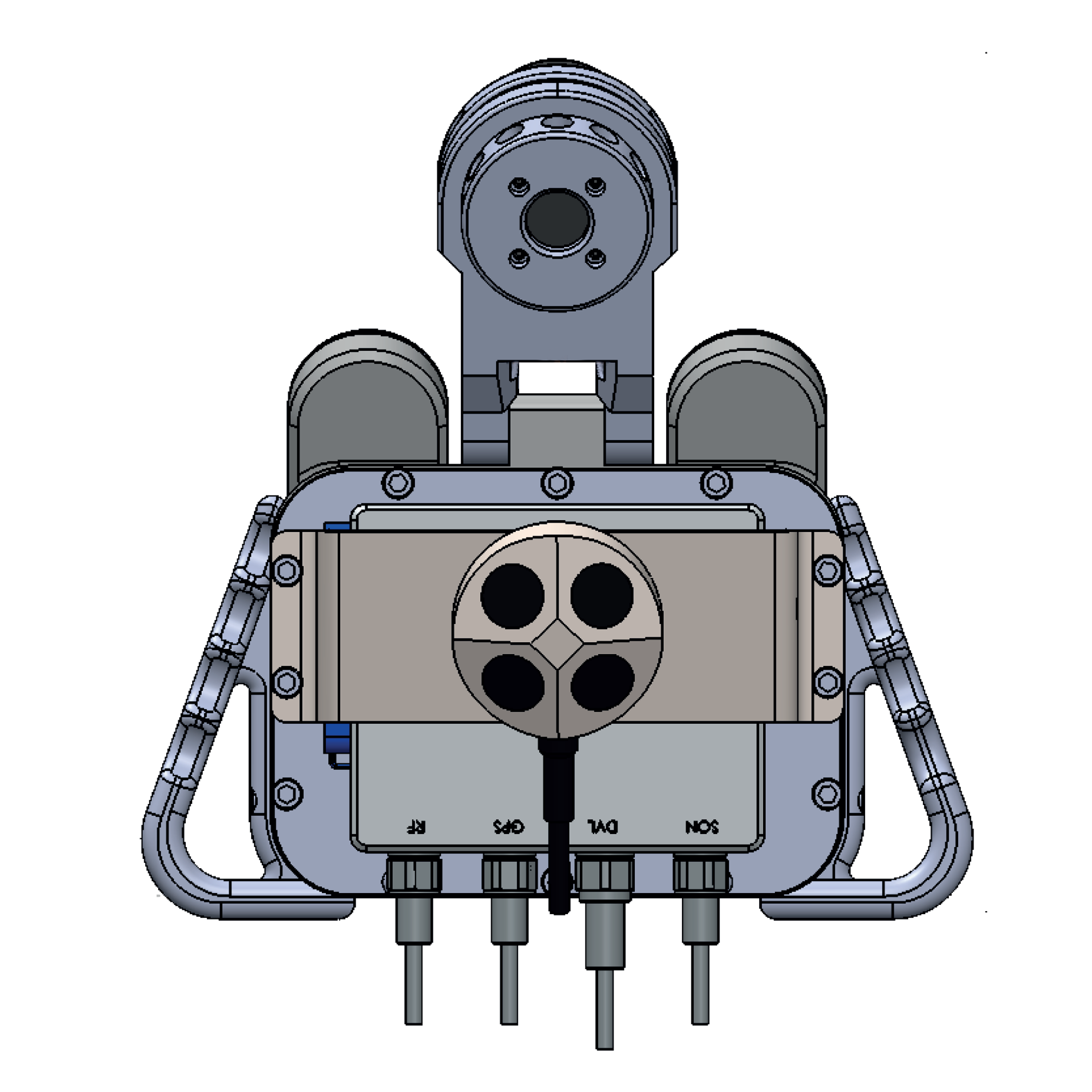

• Connectors: LEMO W Series connectors (External GPS, Sonar, DVL and auxiliary)
• Operating temperature: 0°C to +45°C
• Storage temperature: -10°C to +50°C
• Operating depth: 0m - 100m
• Dimensions (Console): 169mm(L) x 134mm(W) x 76mm(H)
• Weight: ~2.3kg in air, ~0.6kg in water (inc battery)
• Weight: (with Sonar & DVL) ~3.75kg in air, ~0.8kg in water (inc battery)
• Construction: aluminium (AL 6061-T6)
• Finish: black hard anodised
• Connectors: LEMO W Series connectors (External GPS, Sonar, DVL and auxiliary)
• Operating temperature: 0°C to +45°C
• Storage temperature: -10°C to +50°C
• Operating depth: 0m - 100m
ELECTRICAL
• Power supply: 12 -24V DC nominal from internal supplied battery pack (configurable)
• Processor: 32BIT ARM CORTEX processor

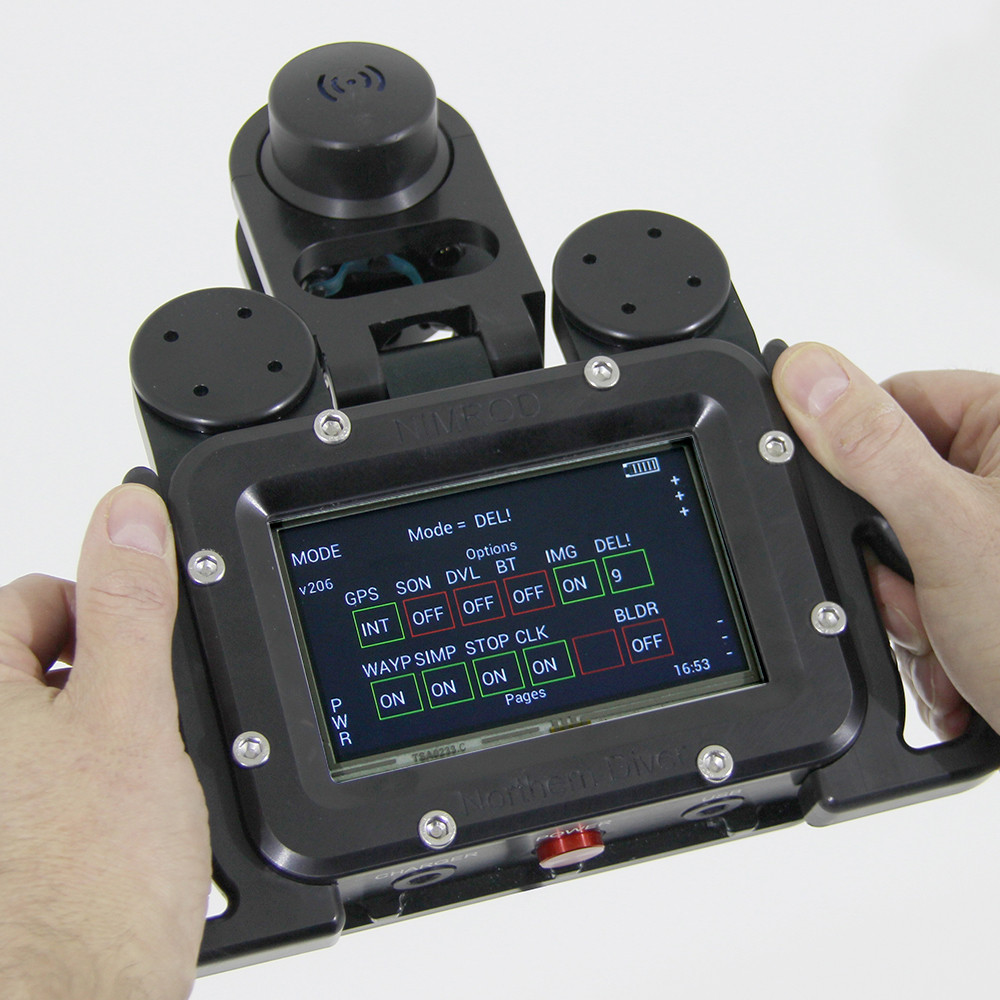

• Display: 5 inch, 320 x 240 pixel, 16-bit colour liquid crystal display
• Viewing angles: 30 to 60 deg.
• Power supply: 12 -24V DC nominal from internal supplied battery pack (configurable)
• Processor: 32BIT ARM CORTEX processor
• Display: 5 inch, 320 x 240 pixel, 16-bit colour liquid crystal display
• Viewing angles: 30 to 60 deg.
DATA STORAGE & LOGGING
• Internal 16Gb Flash memory (other capacities available on request)
• Data Logging capacity (2Mb per minute) > 100hrs on internal storage
• TW1421 High Gain Dual Feed Embedded GPS/GLONASS Antenna
• Internal 16Gb Flash memory (other capacities available on request)
• Data Logging capacity (2Mb per minute) > 100hrs on internal storage
• TW1421 High Gain Dual Feed Embedded GPS/GLONASS Antenna
• Architecture Dual, Quadrature Feeds
• 1 dB Bandwidth 31MHz
INTEGRATED SENSORS
• Pressure sensor for depth calculation
• Internal sensor for leak detection
• Altitude/Heading reference system
• Pitch, yaw, and roll
• Pressure sensor for depth calculation
• Internal sensor for leak detection
• Altitude/Heading reference system
• Pitch, yaw, and roll
• Electronic magnetic compass
• Rotational rate gyros
• Rotational rate gyros
• Battery voltage level indicator
INTERFACES
User interface:
• 5 solid-state piezo button interface for menu navigation
Communication interfaces:
User interface:
• 5 solid-state piezo button interface for menu navigation
Communication interfaces:
• Bluetooth communication for sending and downloading missions
• USB port for connection to a PC, used for updating Firmware software
SYSTEM EXTRAS

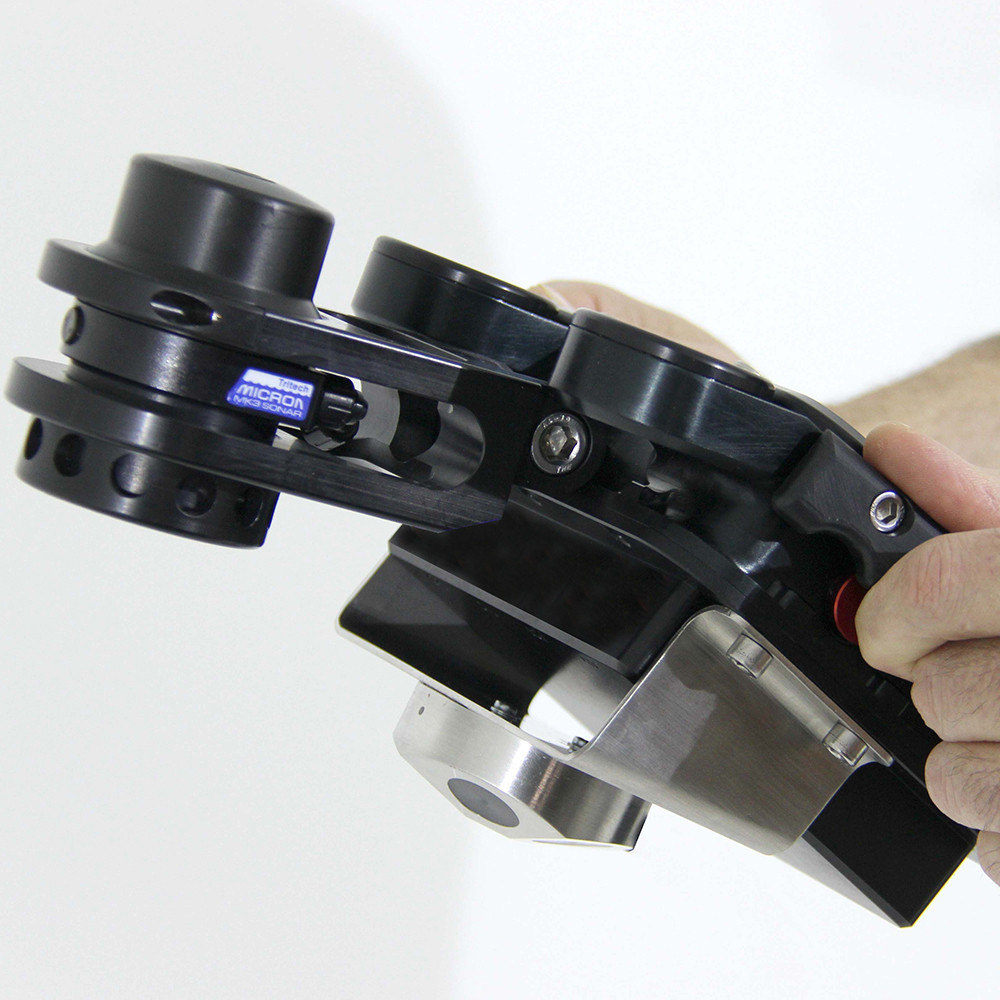

• Forward looking single beam sonar
• DVL (Doppler-Velocity-Log) tracking
• Thruster control
• Acoustic Modem
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Demonstrations are available for this piece of kit. Contact our sales team to discuss.
Downloads

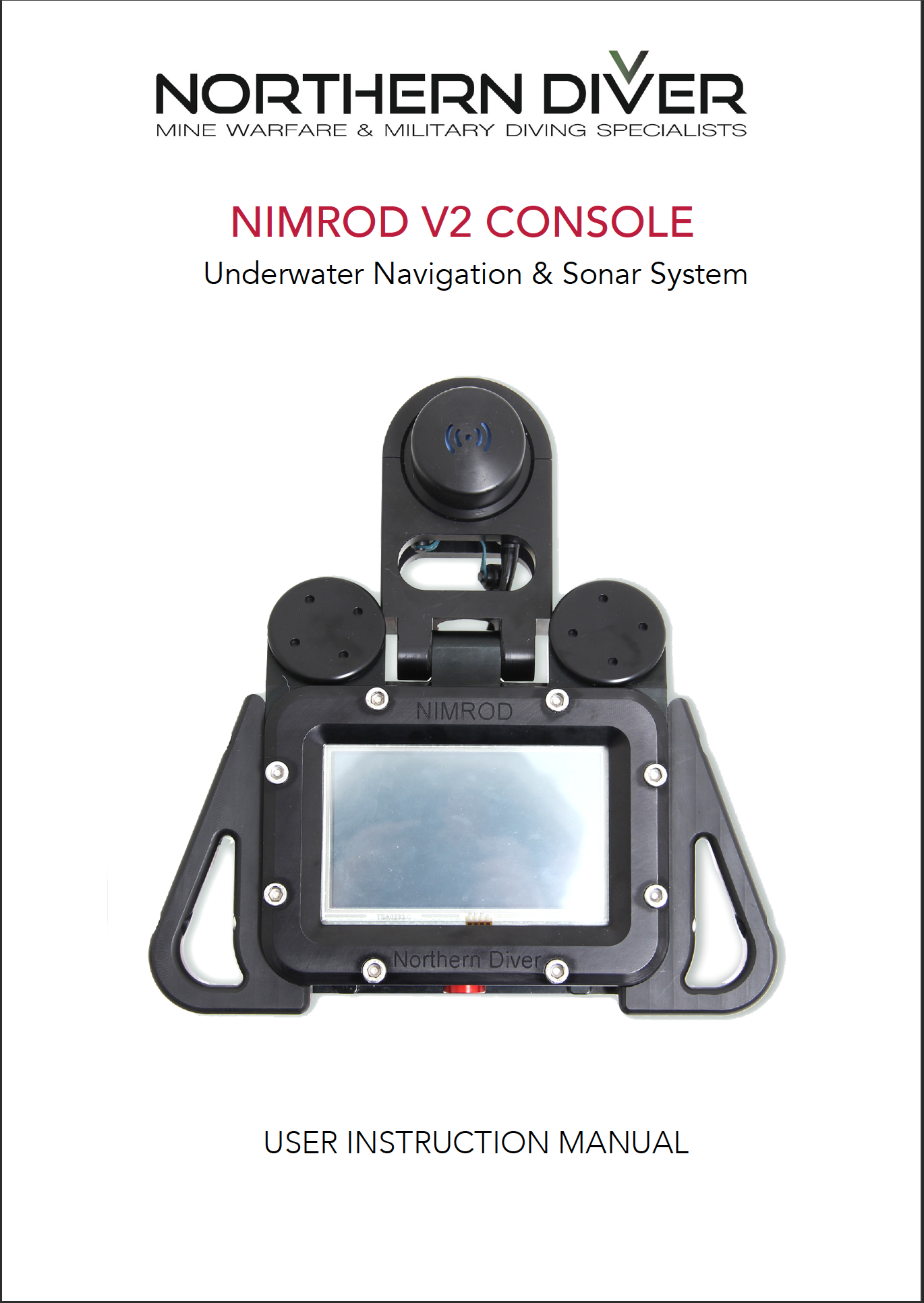

NIMROD V2 User Manual

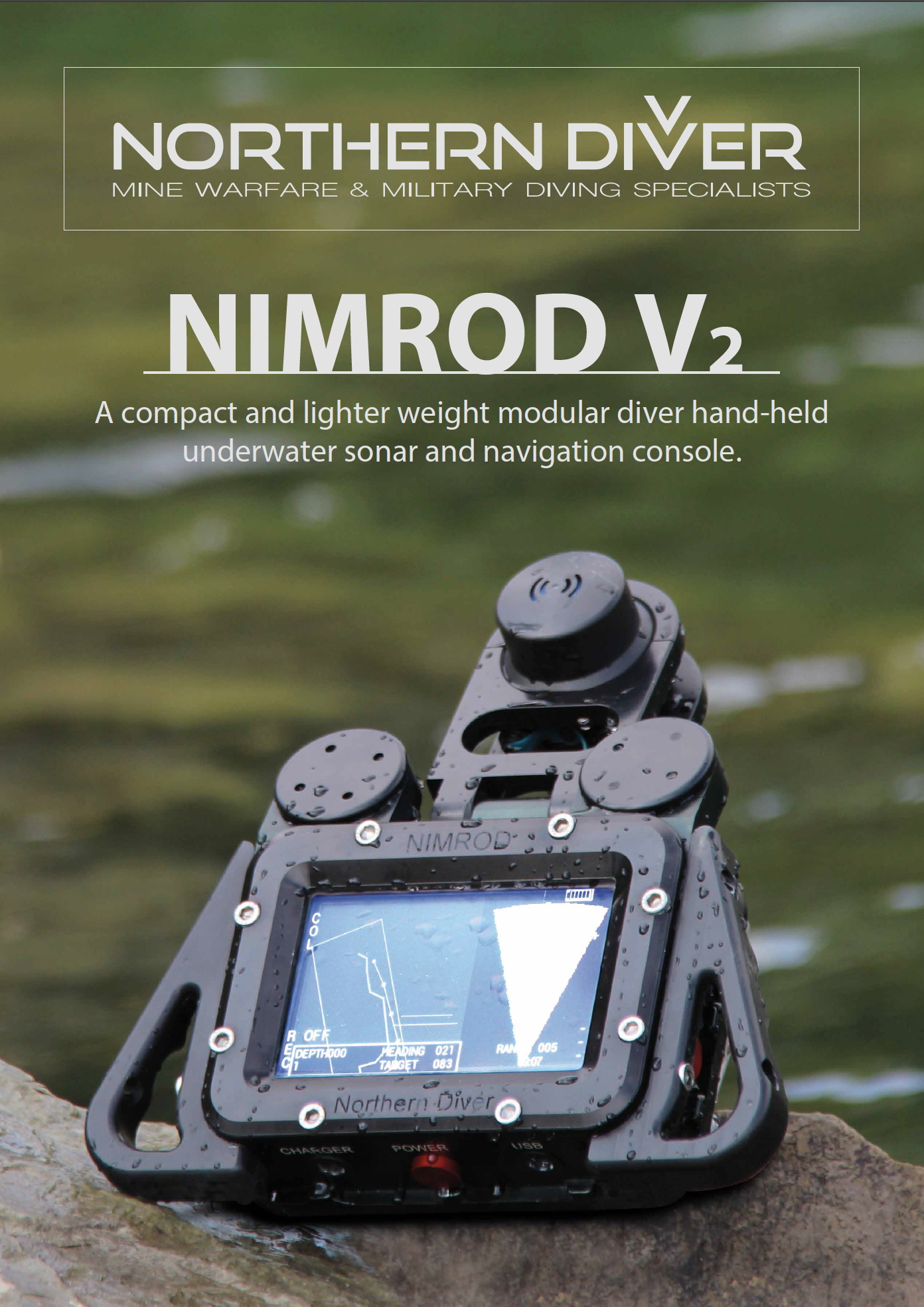

NIMROD V2 Datasheet
