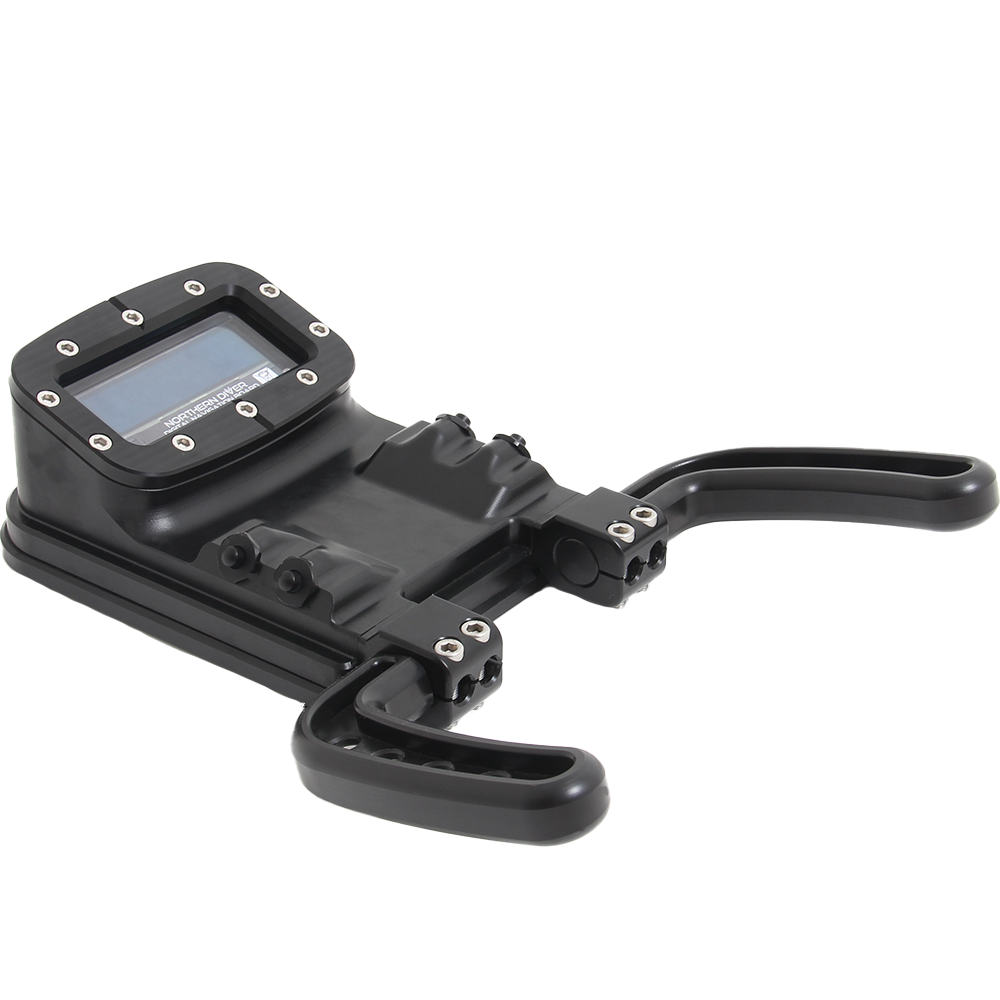

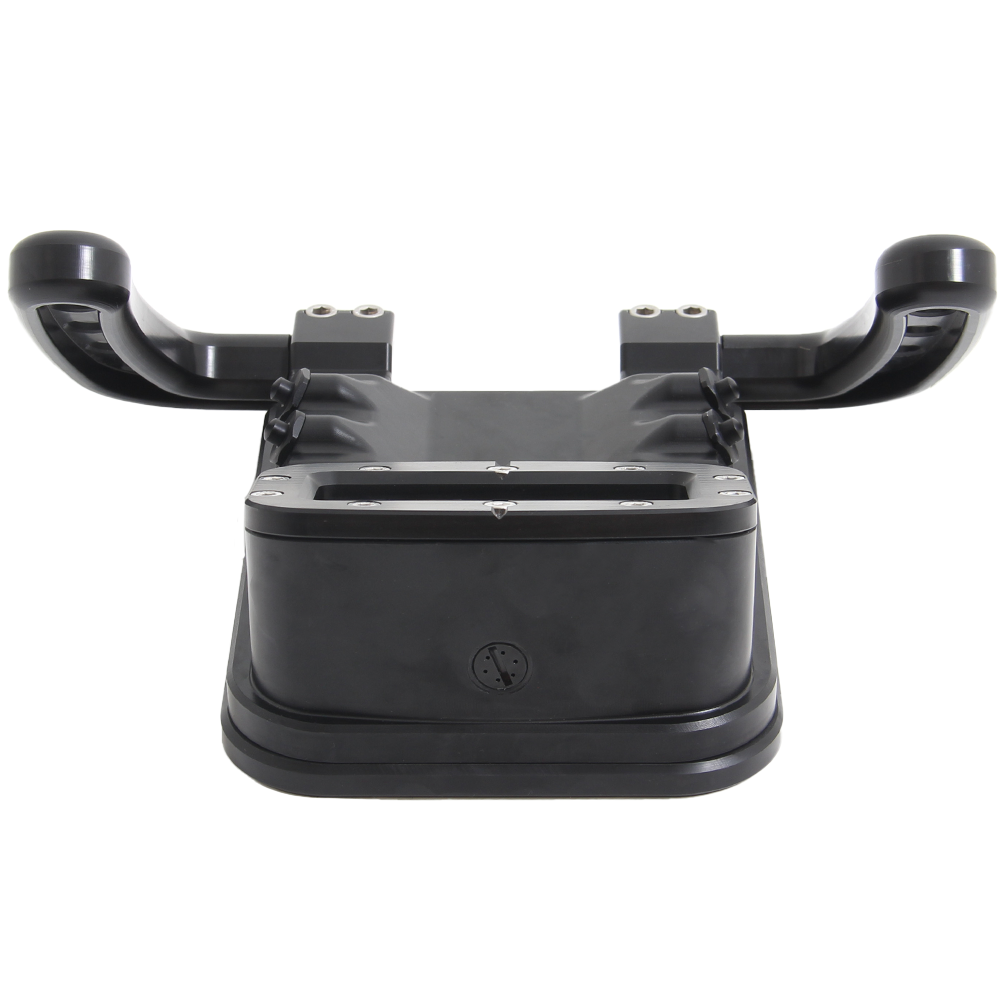

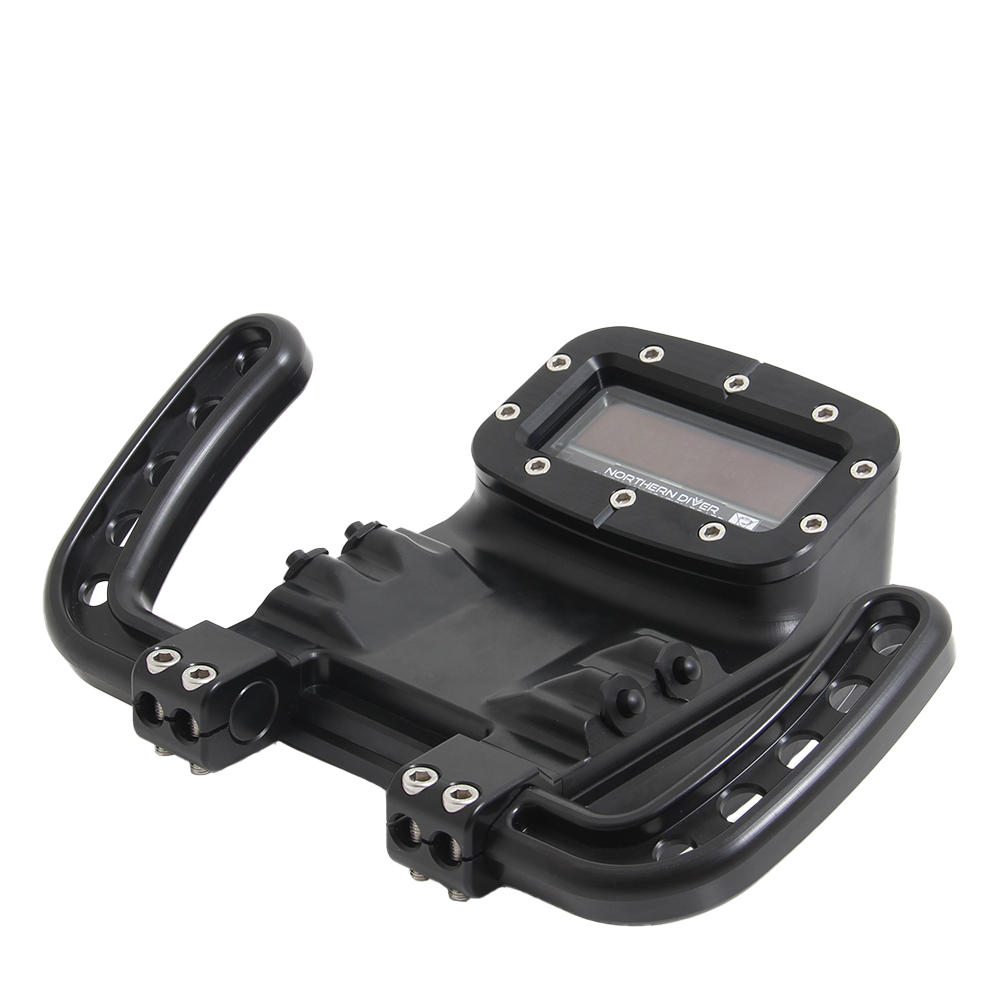

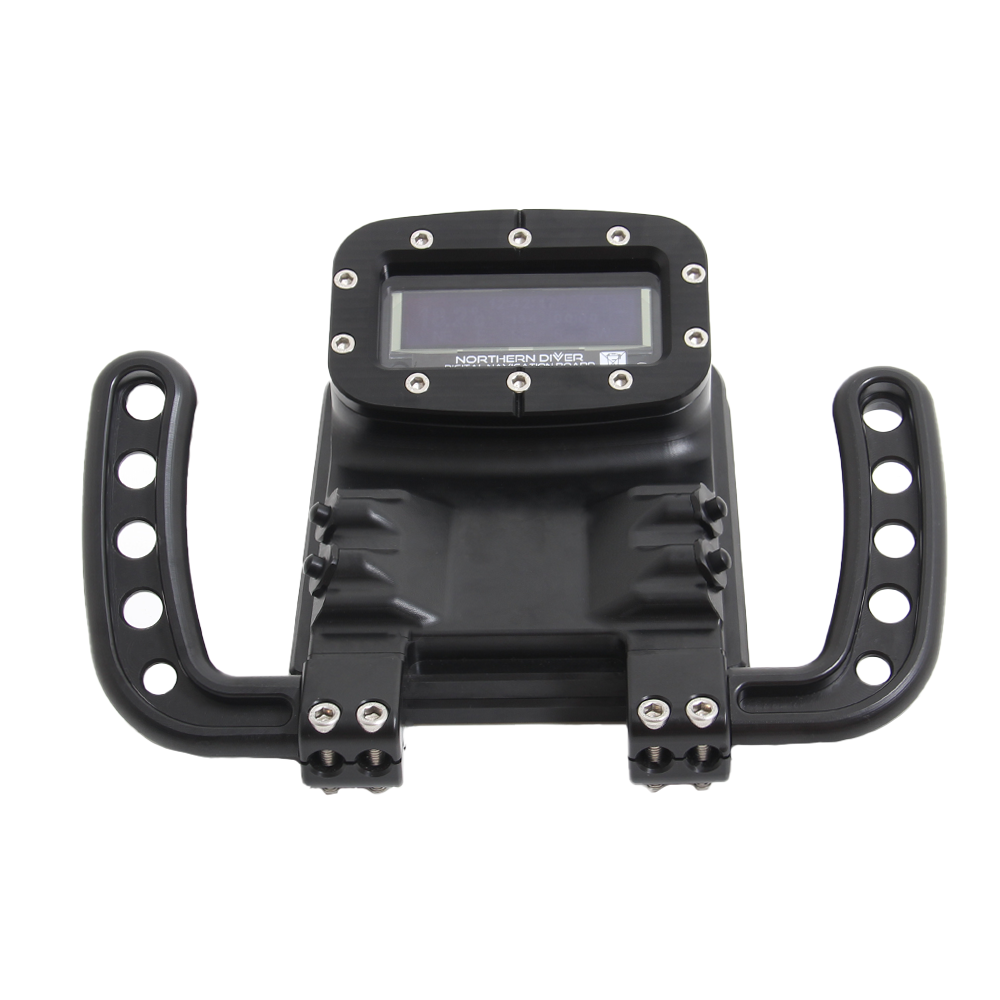

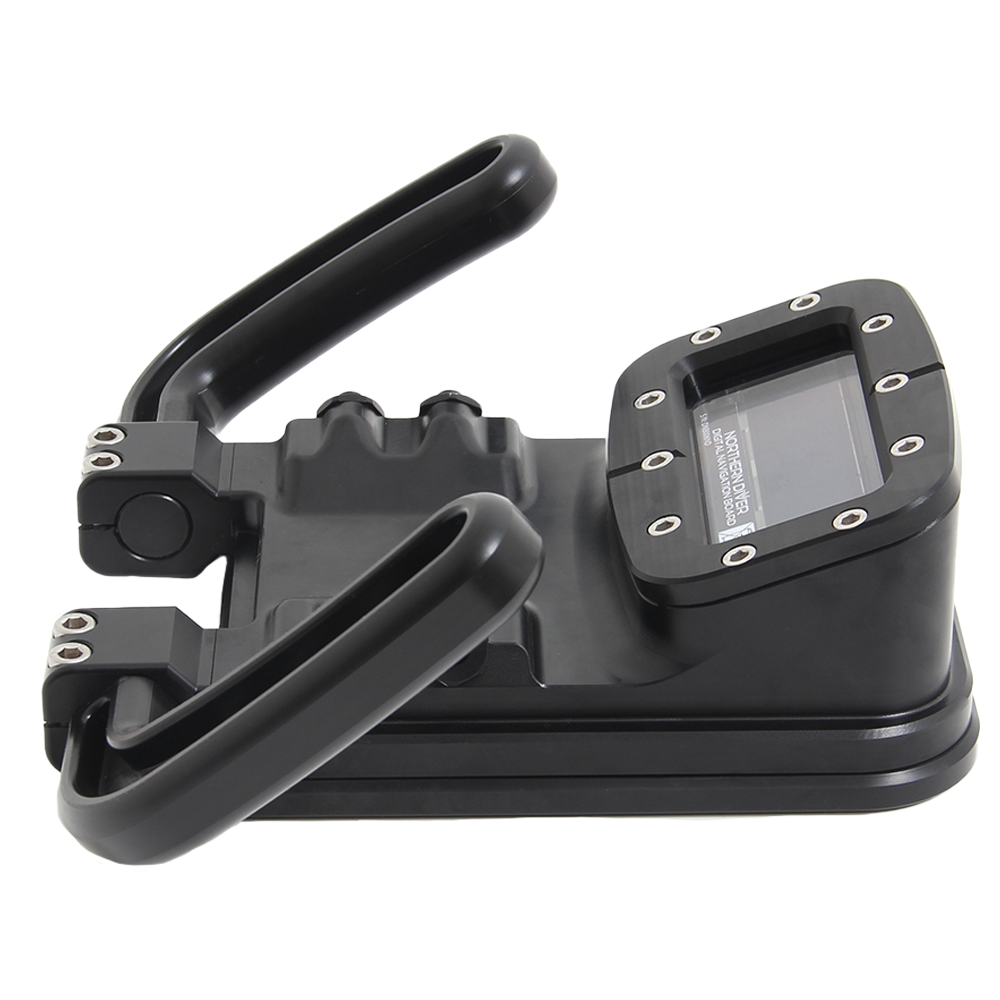

Digital Tactical Swim Board
Description
The brand-new, military-graded, digital tactical swim board is the latest navigation platform used by professional divers and military personal around the world. This product has been created by specialists at Northern Diver International and contains numerous features such as Bluetooth communication to transfer data logs to a PC and also allows configuration data to be changed inside the swim board without opening the device.
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
SPECIFICATION
- Depth, time and compass
- Powered by wireless charging to lithium ion 18650 cell
- Optional user changeable battery upon request

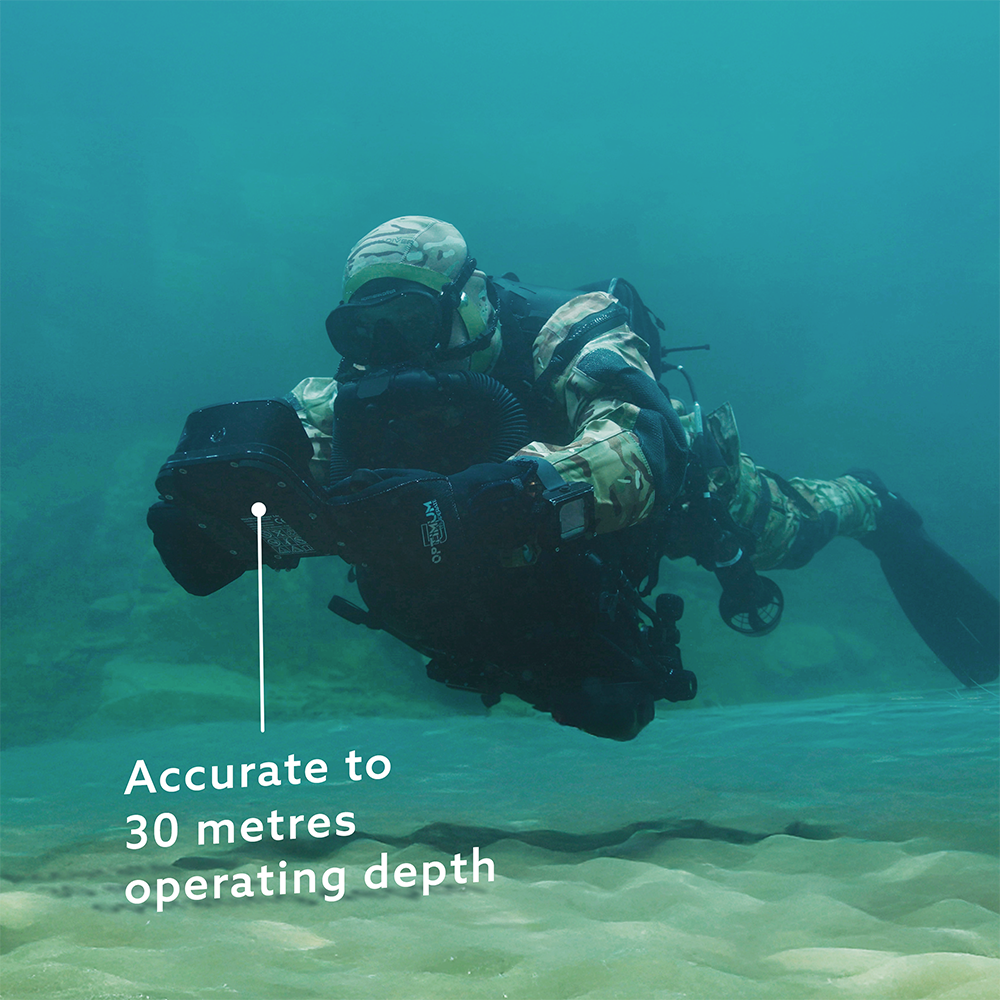

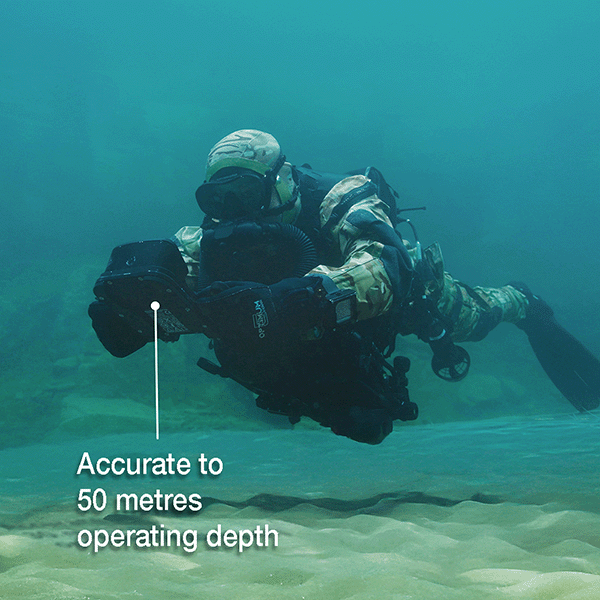

- Max operating depth 100m
- Depth accuracy +- 2% of actual depth
- Depth resolution 0.1m
- Time accuracy 2 seconds a day
- Max dive duration - 16 hours at maximum brightness.
- Data log in rate - 5 samples/sec.

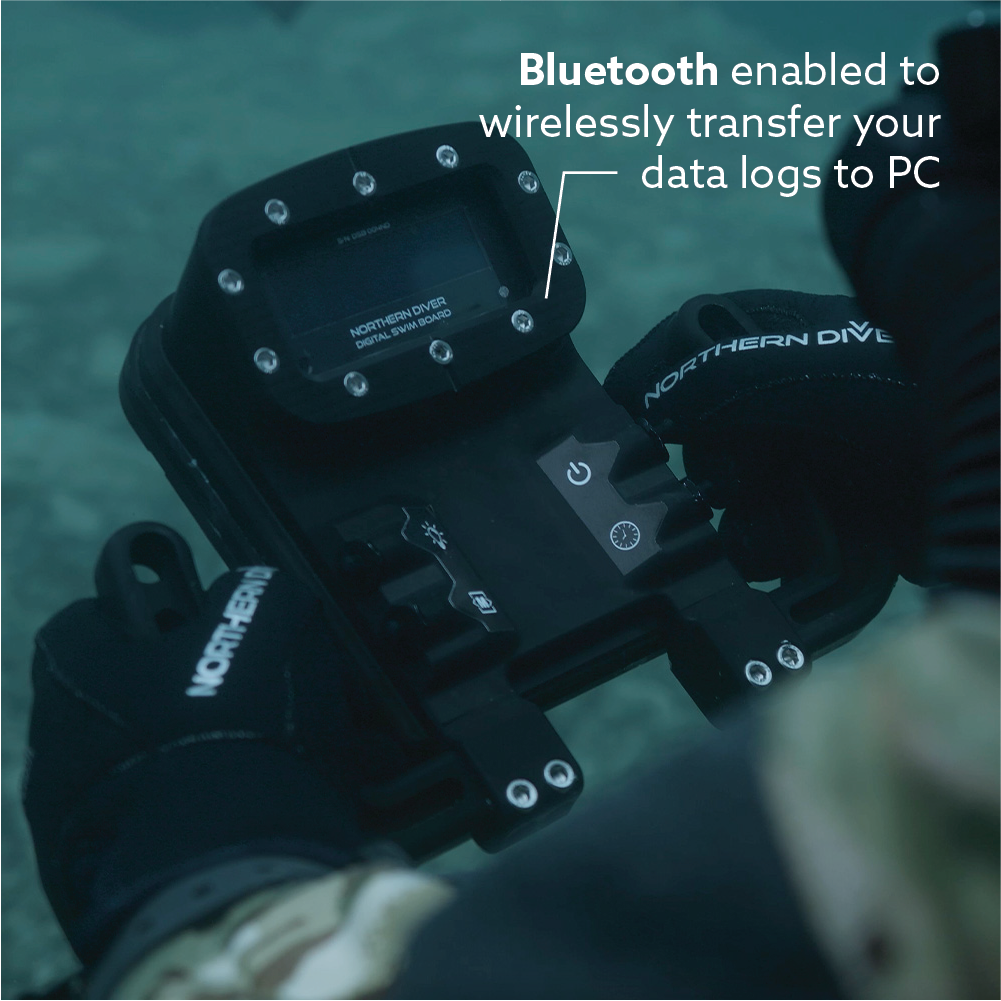

- Bluetooth communication to transfer data logs to a PC. Also allows configuration data to be changed inside the swim board without opening or hard wiring into a port. Reducing a potential leak path
- Stored dive history - Max of 256 data logs and 10 hours of data logging at one sample every 5 seconds.

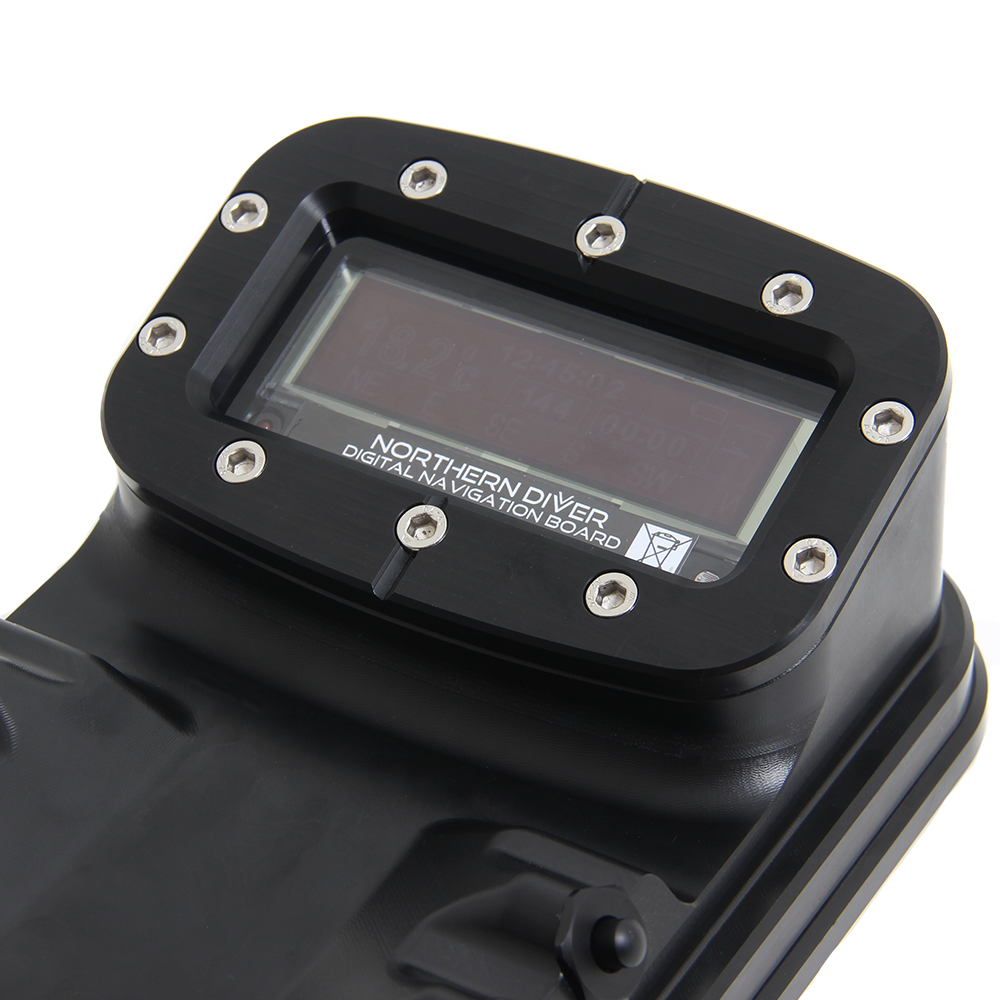

- Display: single colour dot matrix or OLED
- Display brightness - 16 hrs, at lowest brightness 30 hrs.
- Display off: 100 hrs continuous,
- Standby - Power off is approx 2.5 months for full battery
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Information displayed on screen at all times :
- Depth (Meters or Feet)
- Time (hours/minutes/seconds)
- Compass baring (numerical degrees)
- Compass baring (eight cardinal points)
- Stop Watch (Minutes/Seconds)
- Battery Level indicator (pictorial)
- AOA (Angle of attack indicator)
- More information can be togged by one press of a button
- Display can be tailored for each customer/diver, as not to over load the diver with information
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
High O2 diving features:
High O2 diving features:
- 6 meter/20 feet over ride max depth warning indication
- ETM (Elapsed Time at Maximum depth)
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
For more information regarding this product please contact our sales team to discus on +44(0)1257 25 44 44
Downloads

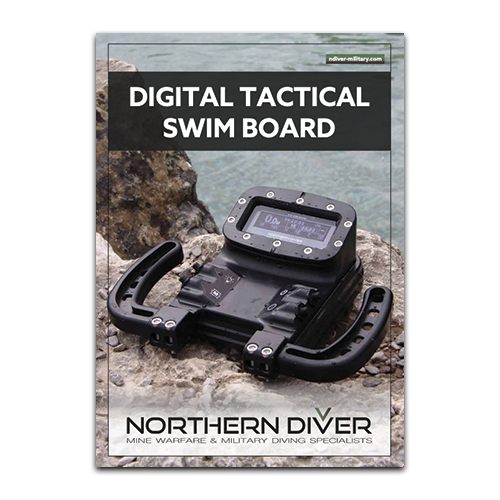

Digital Swim Board Data Sheet
