Navigation Platform (NPS)
Description
Analog Metric Depth Gauge (0-16m)
and Dive Chronometer.

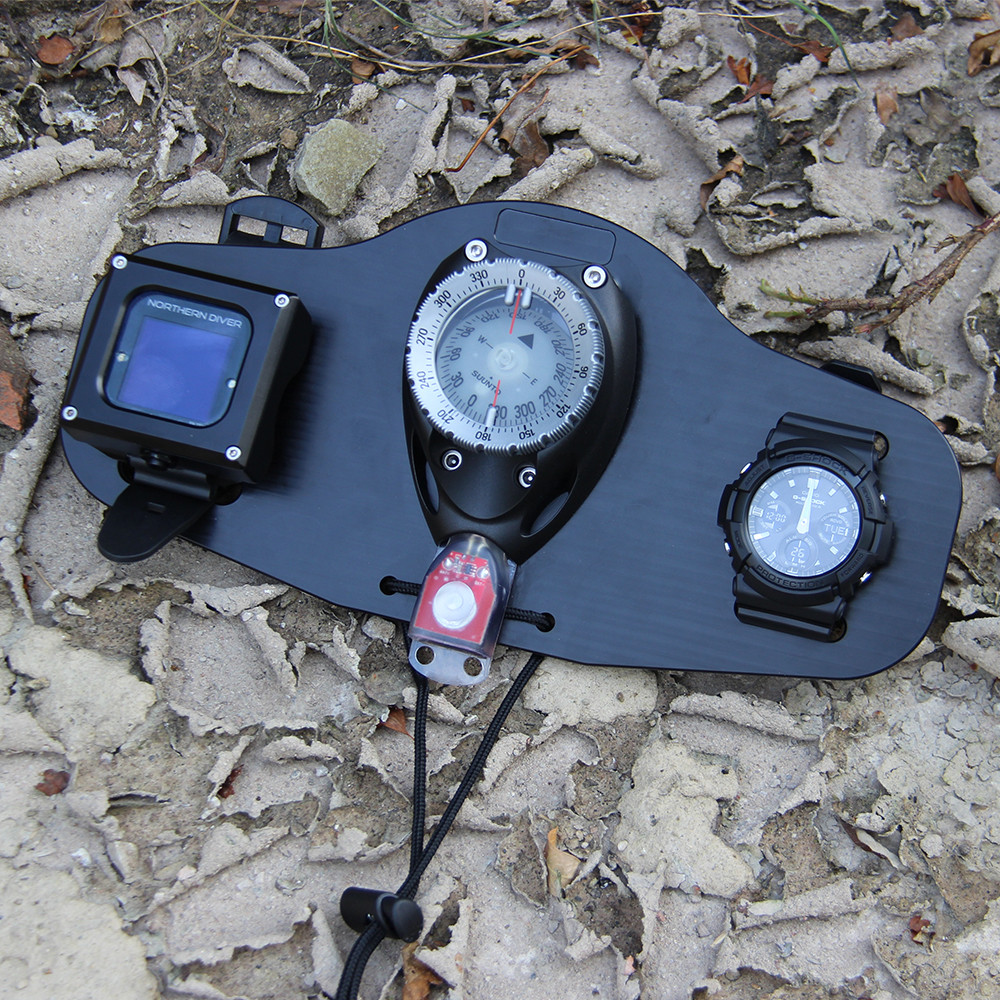

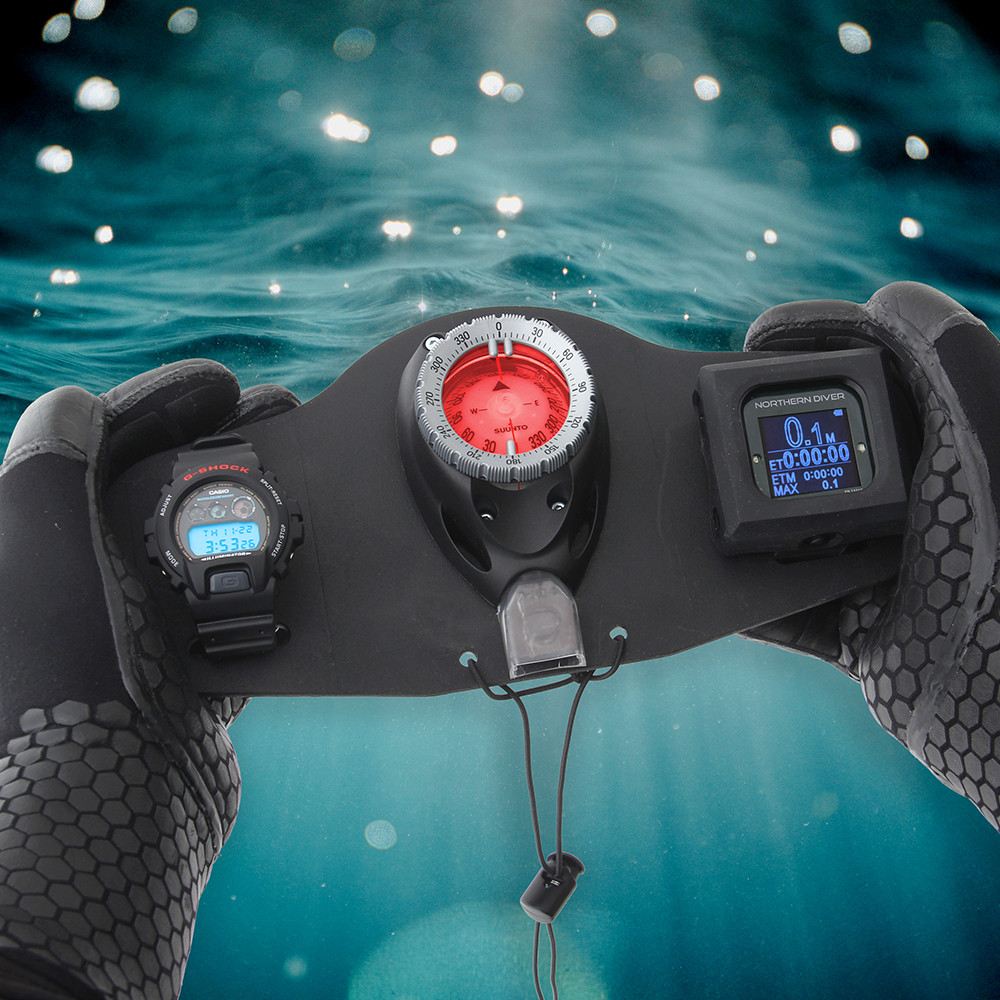

The Northern Diver Navigation Platform (NPS) has been designed as a versatile navigation solution for professional and military divers. Our compact swim board platform houses the SUUNTO SK8, which is the world’s most popular and extremely accurate dive compass combined with a back light to illuminate underwater that is available in 5 colour choices. A simple lanyard is attached to the platform.
Instrument accessories that can be mounted onto the platform include analogue depth gauge, CASIO G-Shock and digital depth gauge that displays current depth, max depth, dive duration and exceeding maximum depth.

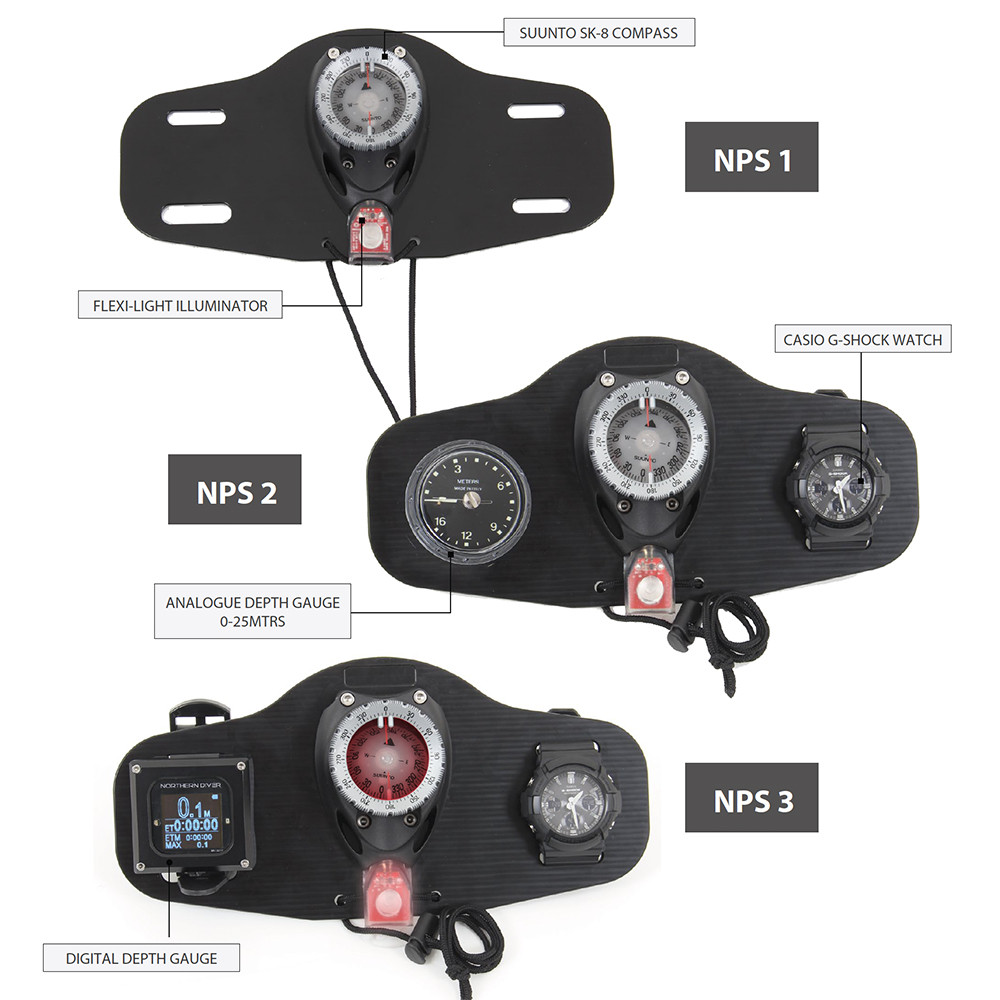

NPS OPTIONS

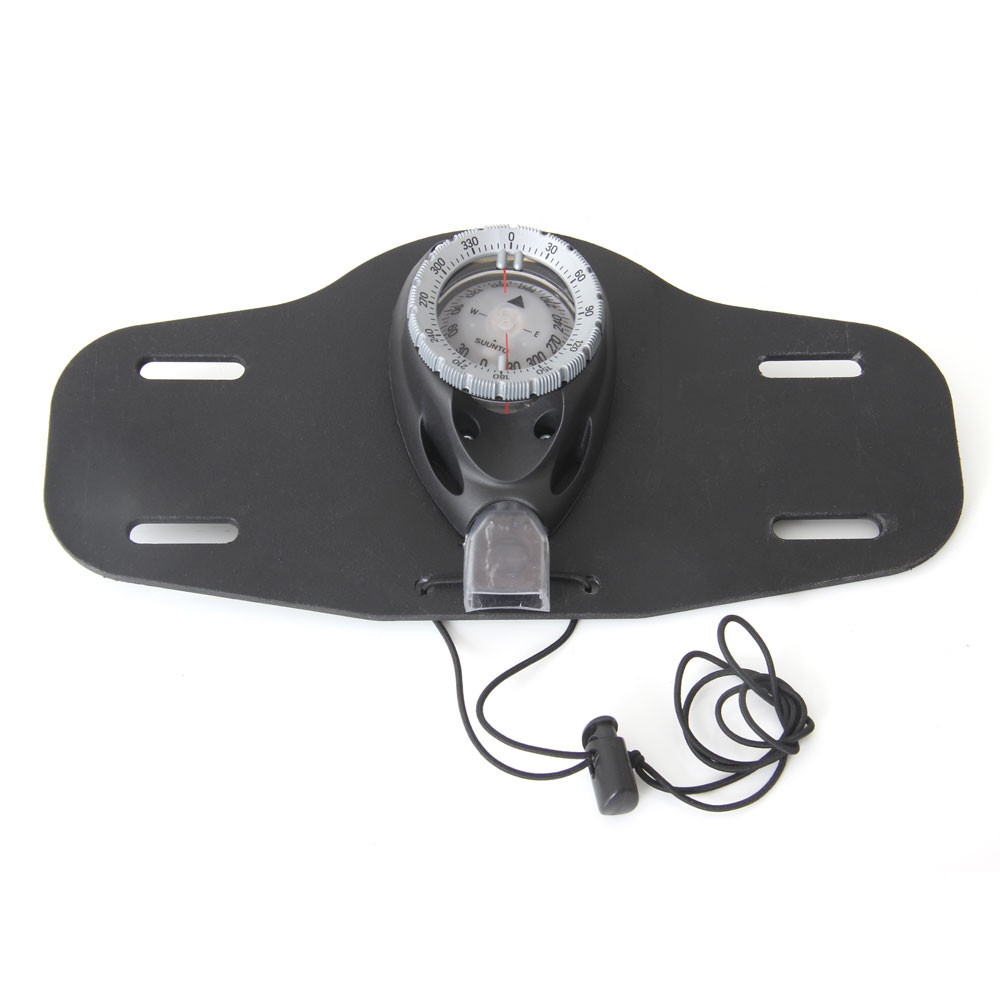

NPS-1 > Navigation board, compass and flexi-light illuminator

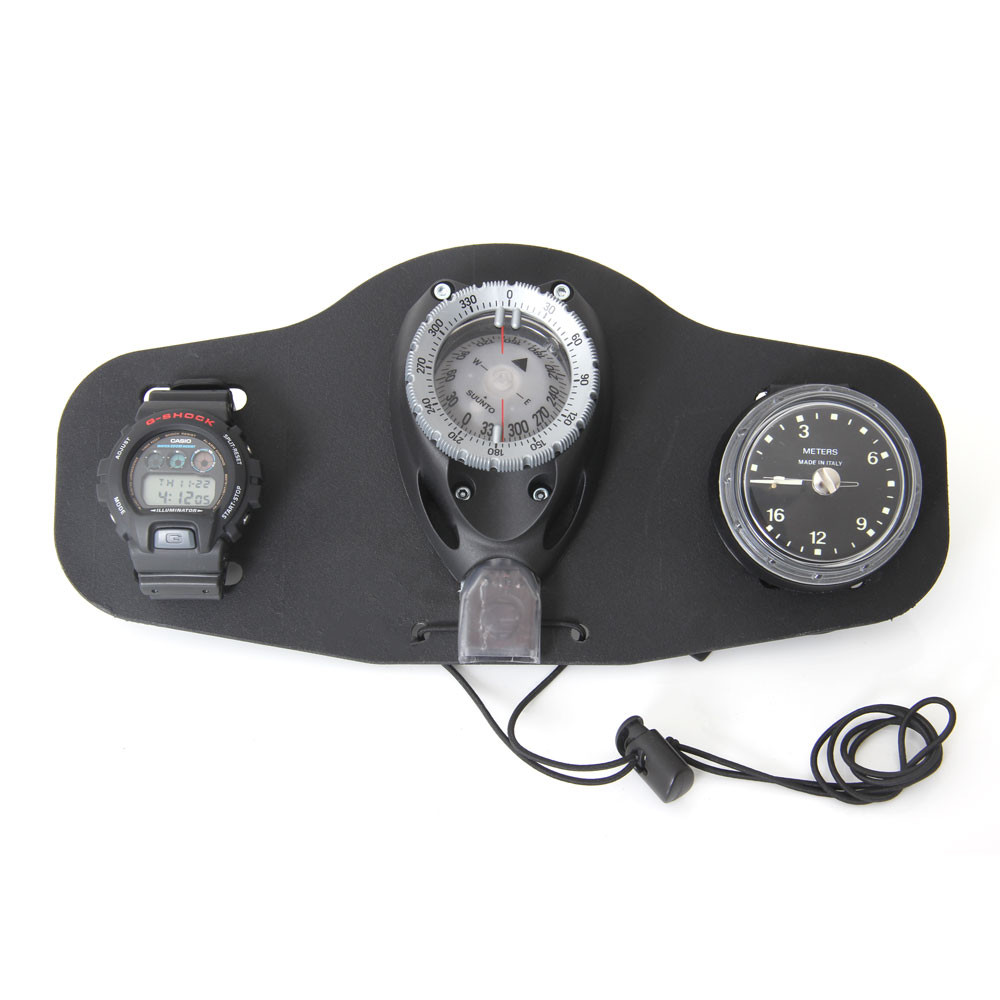

NPS-2 > Navigation board, compass, flexi-light illuminator, analog metric depth gauge (0-16m) and dive chronometer

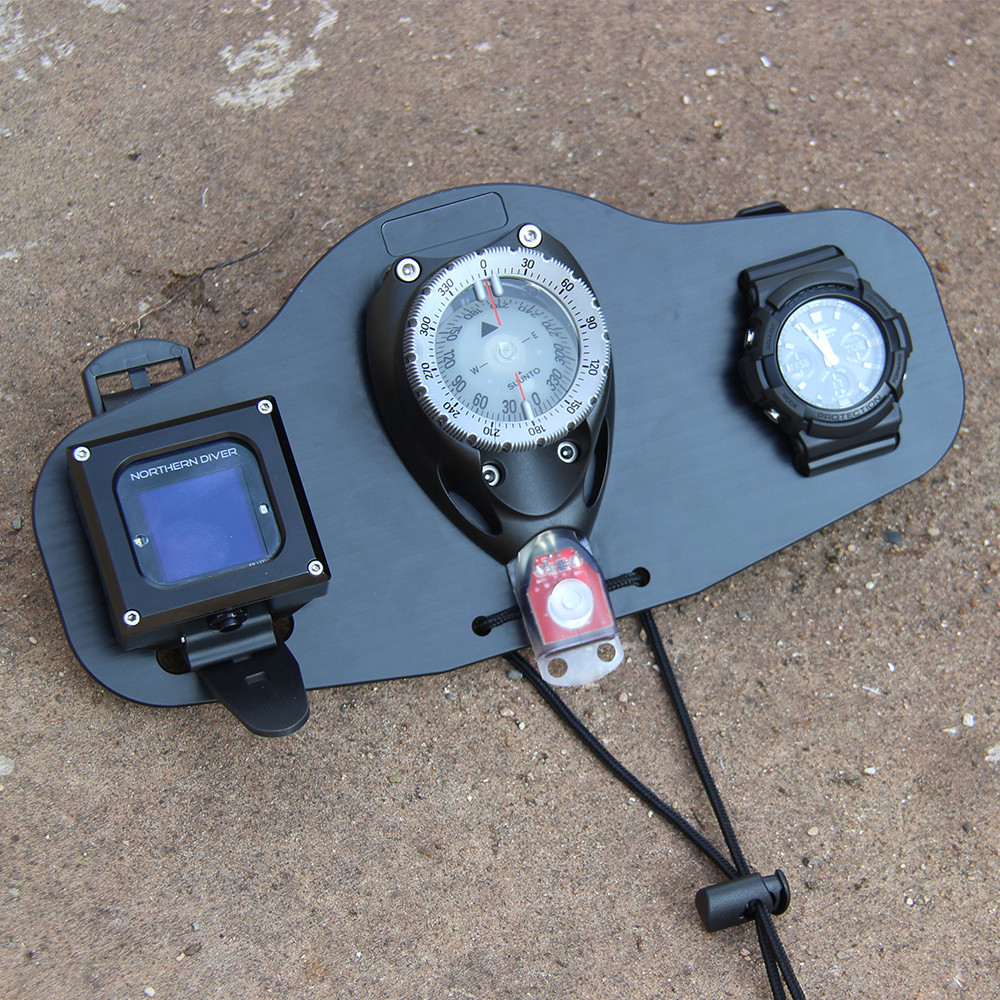

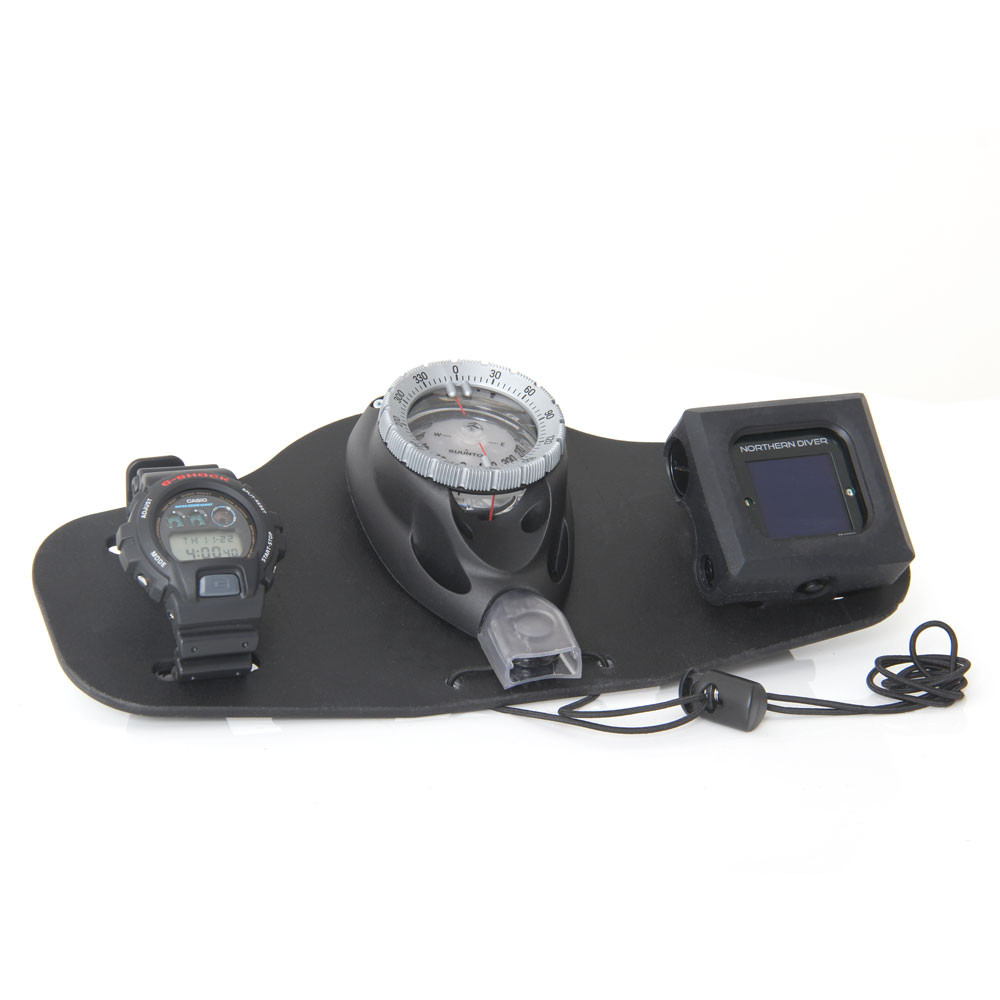

NPS-3 > Navigation board, compass, flex-light, digital depth gauge and dive chronometer
NPS-2 > Navigation board, compass, flexi-light illuminator, analog metric depth gauge (0-16m) and dive chronometer
NPS-3 > Navigation board, compass, flex-light, digital depth gauge and dive chronometer

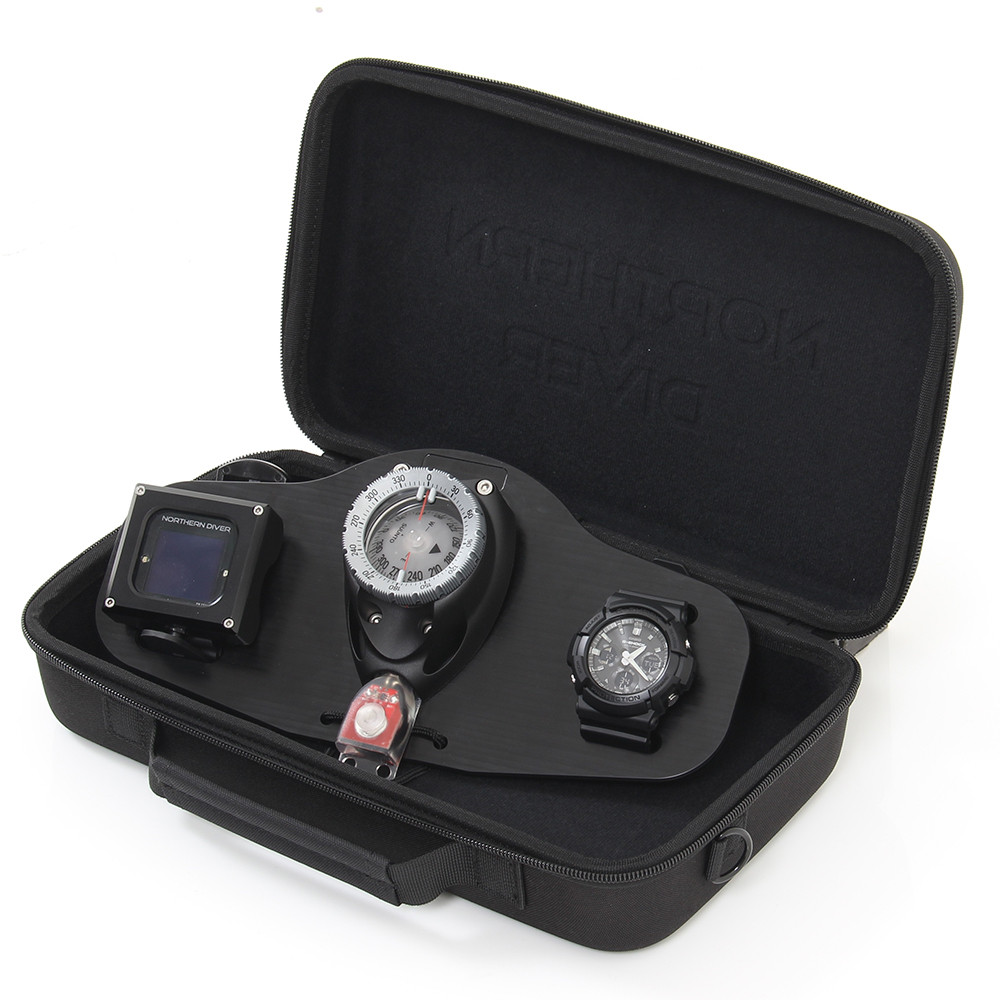

All NPS are provided in a carry bag. *SUUNTO compass available in north & south hemisphere. Please state your requirements when ordering.
THE PLATFORM
Size of board: 11”L (13.5cm), 5.5”W (28cm) , 1.6”H (4cm)
Weight (platform) in air: 0.57lbs (0.26kg)
Board material: black acetyl
Compass illumination: LED light stick
Size of board: 11”L (13.5cm), 5.5”W (28cm) , 1.6”H (4cm)
Weight (platform) in air: 0.57lbs (0.26kg)
Board material: black acetyl
Compass illumination: LED light stick

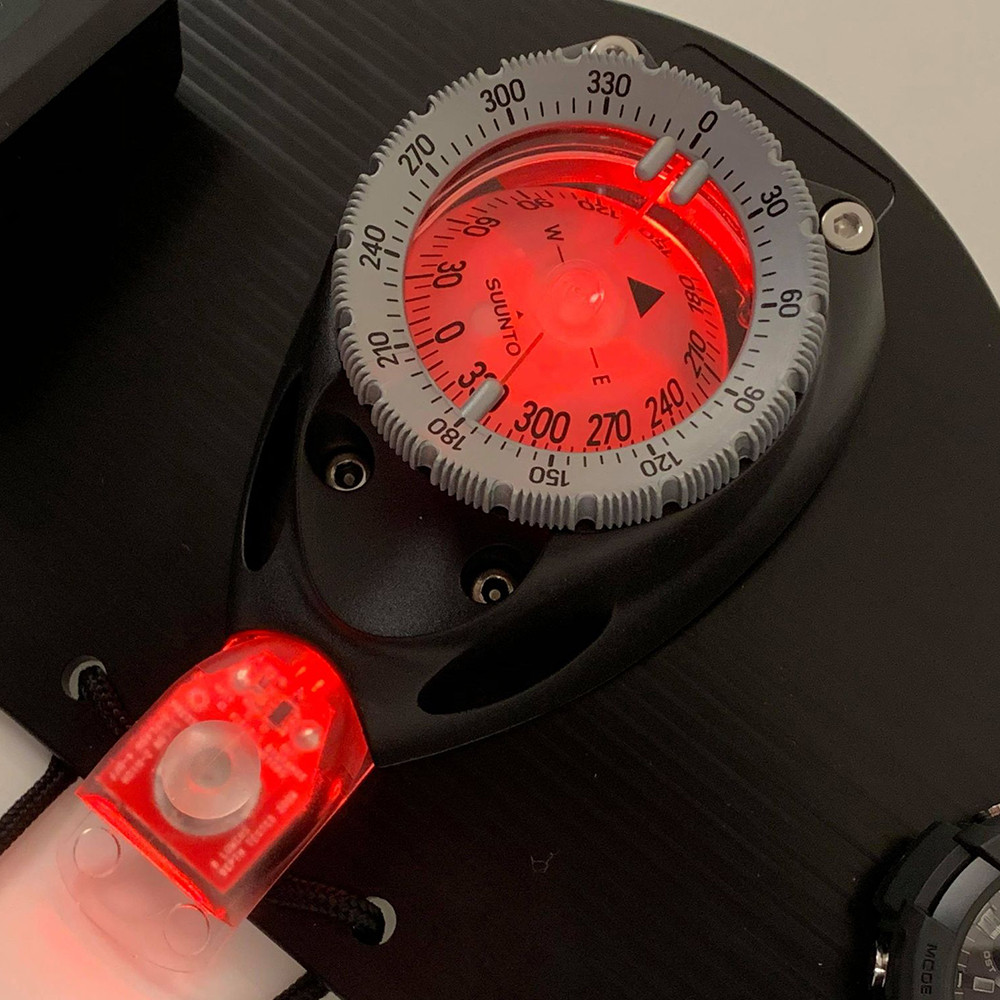

NSP COMPASS* – SK-8 (Suunto)
Compass card bearings: 5 degrees markings
Compass card: black with luminous bearing marks
Compass card tilt: 20°
Size: 2.4” dia (6cm), 1.6” H (4cm)

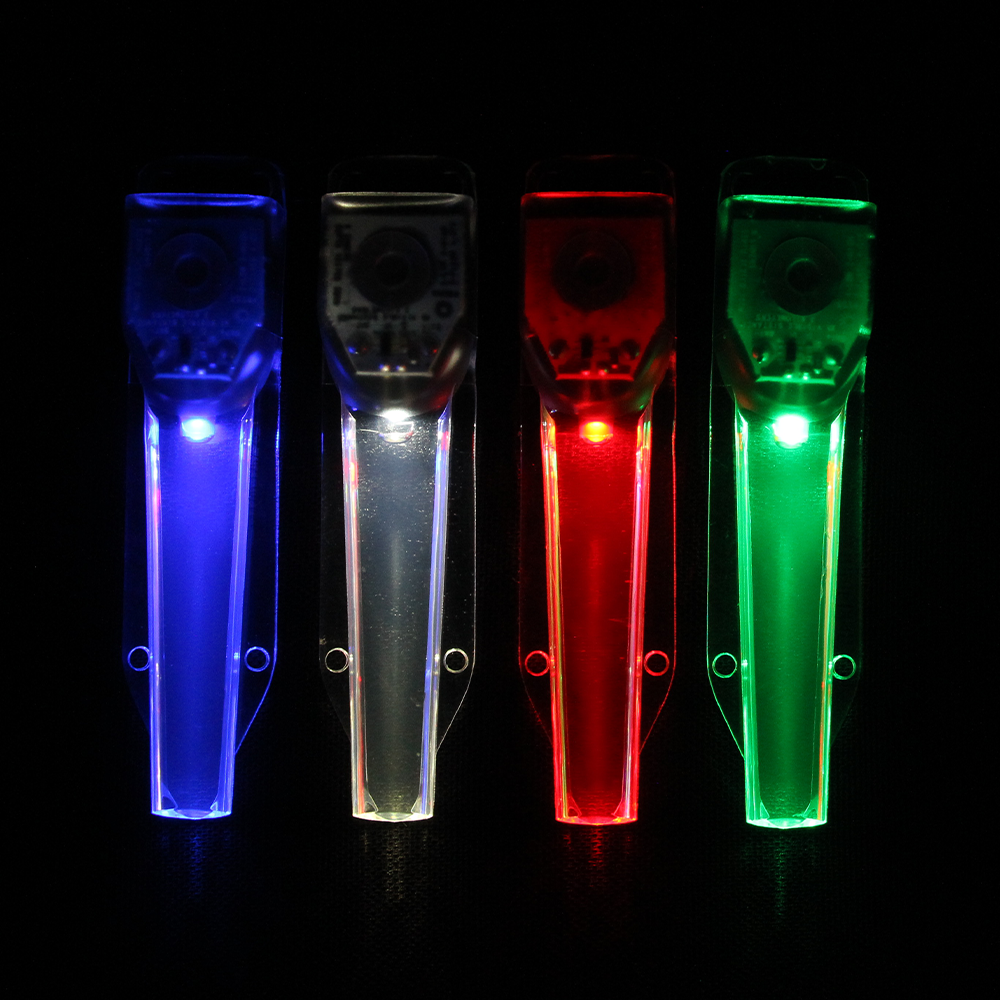

Back light illuminator colour choices: red, white, blue, yellow & green
Operation: press on/off
Easy replaceable
Compass card bearings: 5 degrees markings
Compass card: black with luminous bearing marks
Compass card tilt: 20°
Size: 2.4” dia (6cm), 1.6” H (4cm)
Back light illuminator colour choices: red, white, blue, yellow & green
Operation: press on/off
Easy replaceable
ANALOG DEPTH GAUGE
Metric model: 0 to 25m
Max depth marker: resettable tell-tale
Face: black with luminous white numerals
Cert: EN13319
Metric model: 0 to 25m
Max depth marker: resettable tell-tale
Face: black with luminous white numerals
Cert: EN13319
DIVE CHRONOMETER
Casio G-Shock GAW-100B-1AER watch
Stop watch
LED lit analogue display
Date & time
Casio G-Shock GAW-100B-1AER watch
Stop watch
LED lit analogue display
Date & time
ND DIGITAL DEPTH GAUGE
Displays: current depth, max depth, exceeded max depth, dive duration
Depth: 0-100m
Displays: current depth, max depth, exceeded max depth, dive duration
Depth: 0-100m
