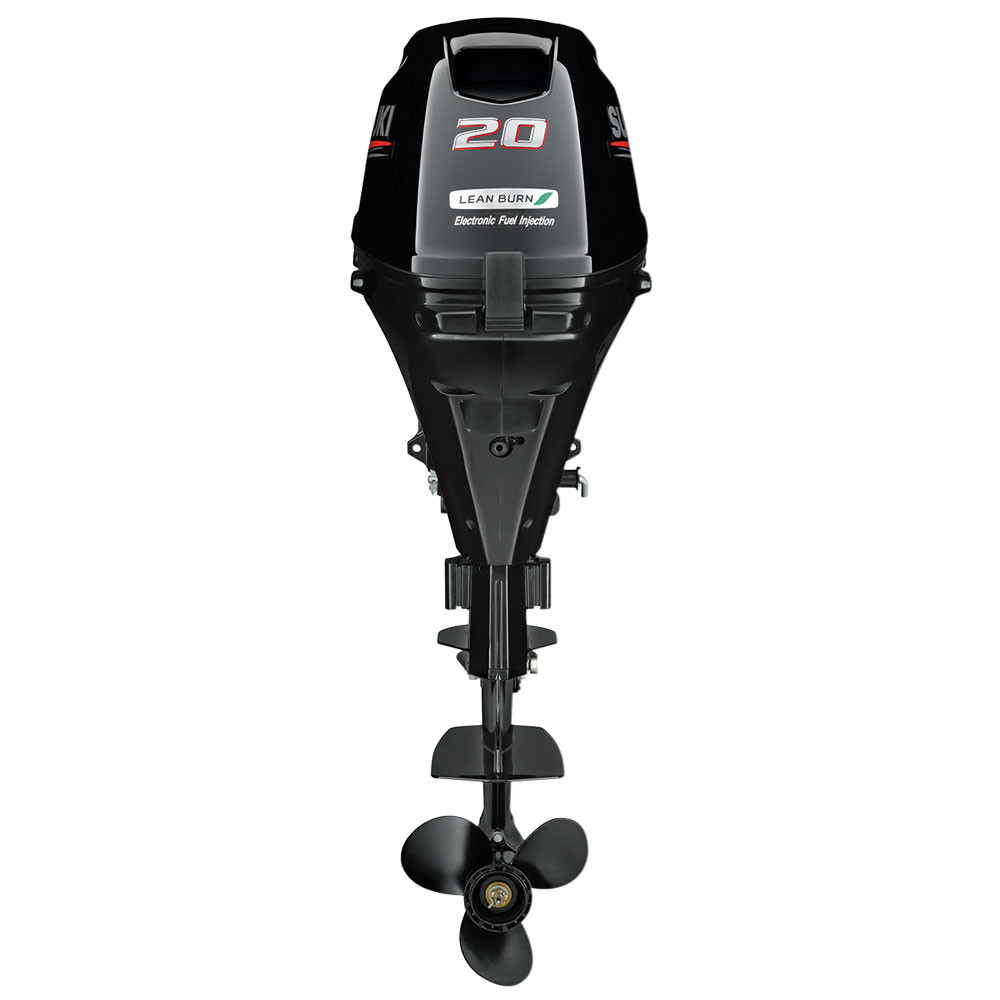

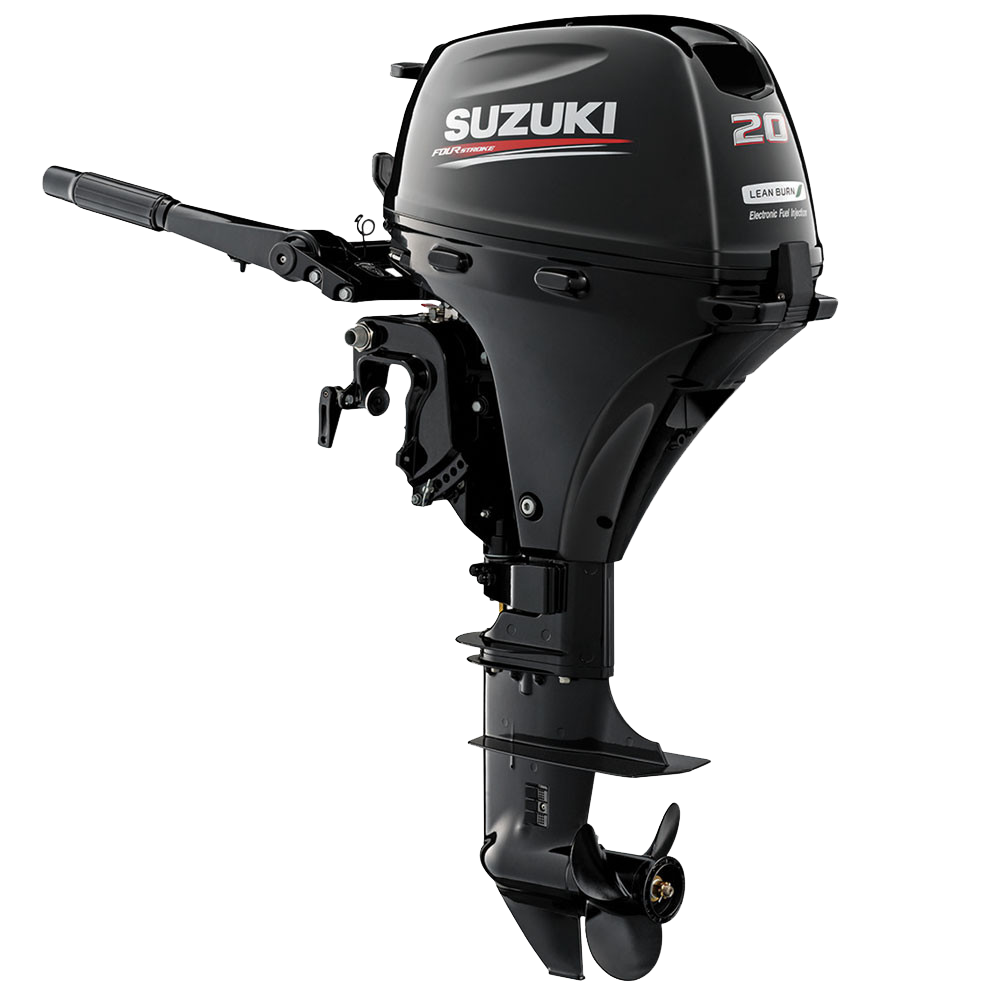

Suzuki Engine DF20AS
Description
High performance, lightweight, compact and low on fuel consumption - you can have it all.
Lightweight and compact
The innovative technology used in the DF20AS makes this the lightest outboard in its class.
The innovative technology used in the DF20AS makes this the lightest outboard in its class.
Battery-less electronic fuel injection
Delivers quicker easier starts, smoother running and quick acceleration without the bulk and weight of a battery.
Delivers quicker easier starts, smoother running and quick acceleration without the bulk and weight of a battery.
Lean Burn control systems
Suzuki's Lean Burn Fuel Control Technology predicts fuel needs according to operating conditions, then delivers the optimum fuel/air mixture to the engine resulting in greater fuel economy.
Suzuki's Lean Burn Fuel Control Technology predicts fuel needs according to operating conditions, then delivers the optimum fuel/air mixture to the engine resulting in greater fuel economy.
DF20AS
| Steering Type | Tiller
| Tilt | Manual
| Starter | Manual
| Shaft Length | Short (381mm / 15 inches)
| Weight | 44kg
| Tilt | Manual
| Starter | Manual
| Shaft Length | Short (381mm / 15 inches)
| Weight | 44kg
Key Features
- Starting System: Manual
- Engine Type: 4-Stroke OHC
- Fuel Delivery System: Battery-less Electronic Fuel Injection
- No. of Cylinders: 2
- Piston Displacement: 327cc
- Maximum Output: 14.7KW
- Full Throttle Operating Range: 5,300 - 6,300
- Steering: Tiller or Remote
- Oil Pan Capacity: 1.0L
- Oil Pan Capacity: 1.0L
- Ignition System: Digital CDI
- Alternator: 12V 6A or 12V 12A
- Engine Mounting: Shear Mount
- Trim Method: Manual or Power
- Gear Ratio: 2.08:1
- Gear Shift: F-N-R
- Exhaust: Through Prop Hub Exhaust
- Fuel Tank Capacity: 12L
- Recommended transom height: S:381mm (15in) L:508mm (20in)
- Weight: 44.0kg - 55.5kg
- Bore x Stroke: 60.4 x 57mm
- Propeller Selection (pitch): 7"-12"
