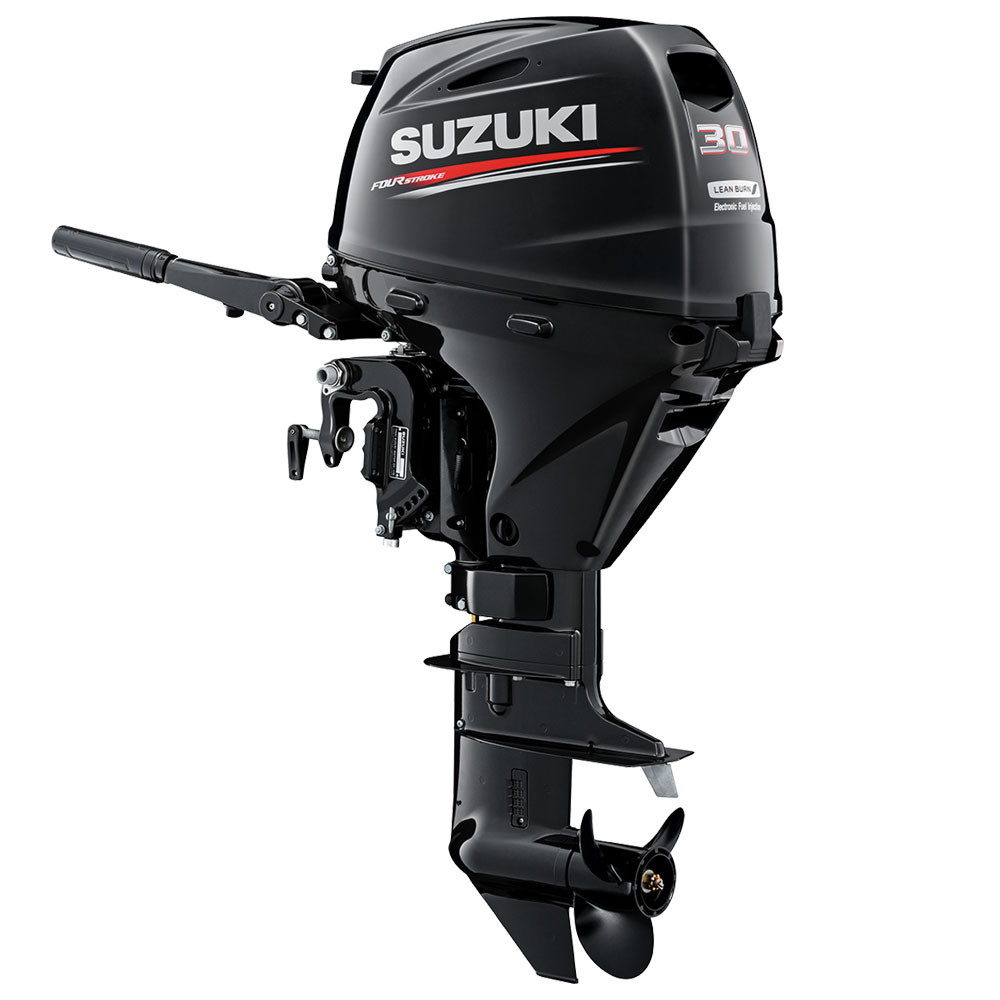

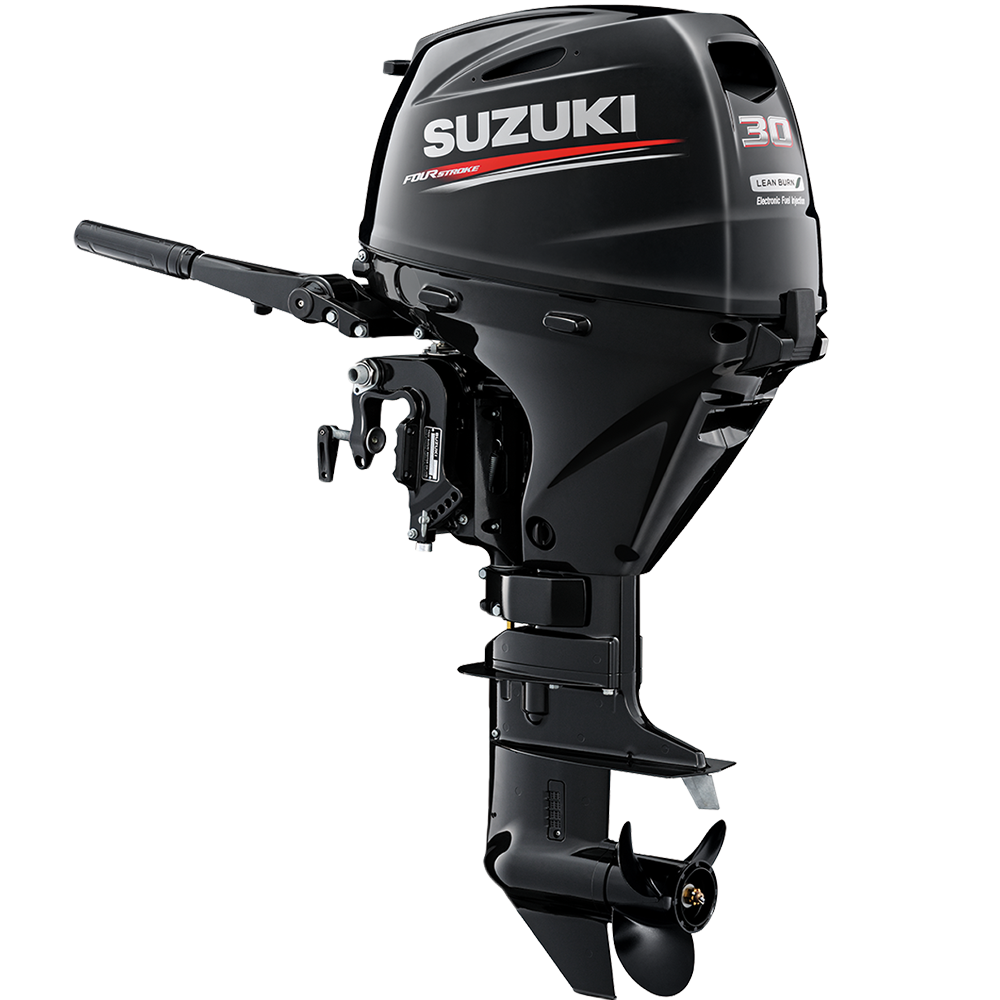

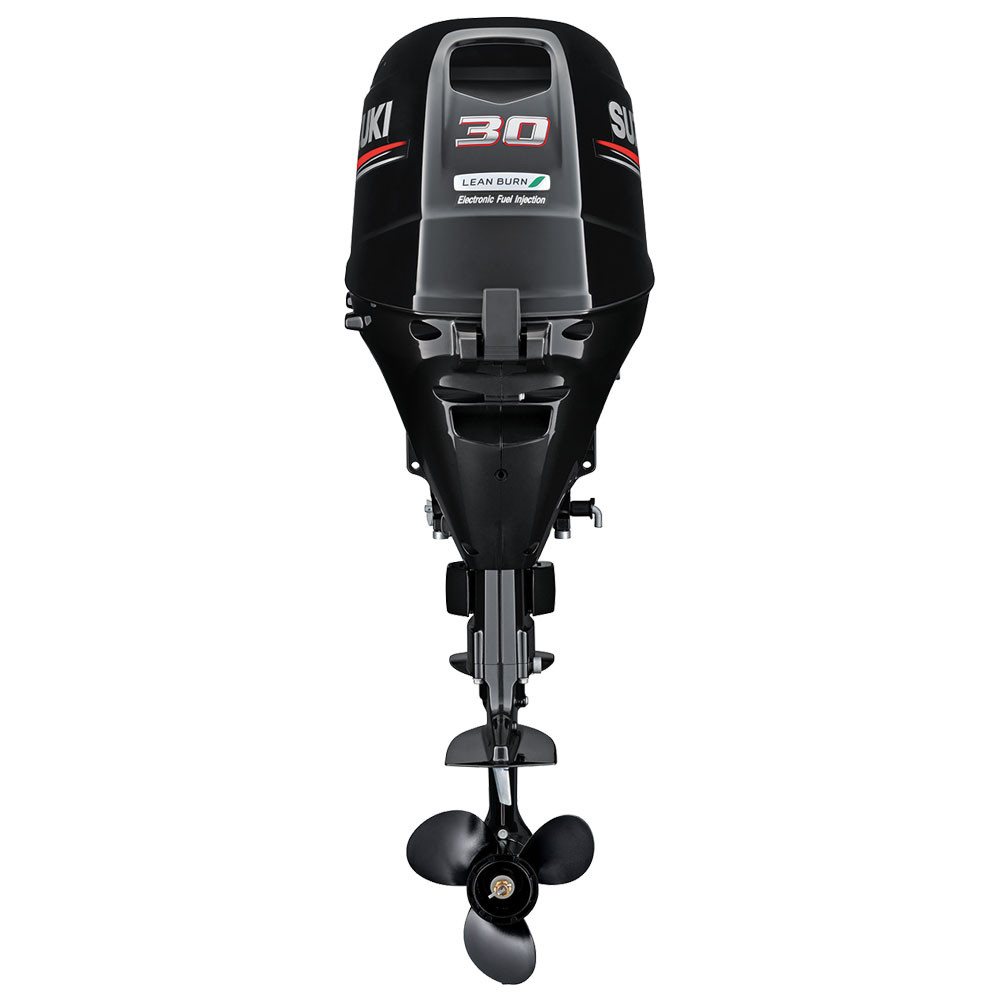

Suzuki Engine DF30ATS

STOCK CODE: OUTBOARD-DF30ATS

Description

High performance, lightweight, compact and low on fuel consumption. The DF30A is lightest in class with the largest reduction gear ratio. Offset crankshaft Positioning the crankshaft slightly off-centre from the cylinder the lateral pressure on the cylinder wall is reduced resulting in a smoother piston movement which improves operating efficiency. Largest reduction gear ratio in its class A large reduction gear ratio leads to powerful torque for quick acceleration and great top-end speed....

Read More

Tell Us What You Think

Customer Reviews

0 out of 5 Stars (Not yet rated)

Write a Review

No Reviews available

Features

  • Starting System: Electric
  • Engine Type: 4-Stroke OHC
  • Fuel Delivery System: Battery-less Electronic Fuel Injection
  • No. of Cylinders: 3
  • Piston Displacement: 490cc
  • Maximum Output: 22.1KW
  • Full Throttle Operating Range: 5,300 - 6,300
  • Steering: Remote
  • Oil Pan Capacity: 1.5L
  • Fuel Tank Capacity: 25L
  • Ignition System: Digital CDI
  • Alternator: 12V 14A
  • Engine Mounting: Shear Mount
  • Trim Method: Power Trim & Tilt
  • Gear Ratio: 2.09:1
  • Gear Shift: F-N-R
  • Exhaust: Through prop Hub Exhaust
  • Recommended transom height: 381mm (15in)
  • Weight: 71.0kg
  • Bore x Stroke: 60.4 x 57.0mm
  • Propeller Selection (pitch): 9" - 15"
