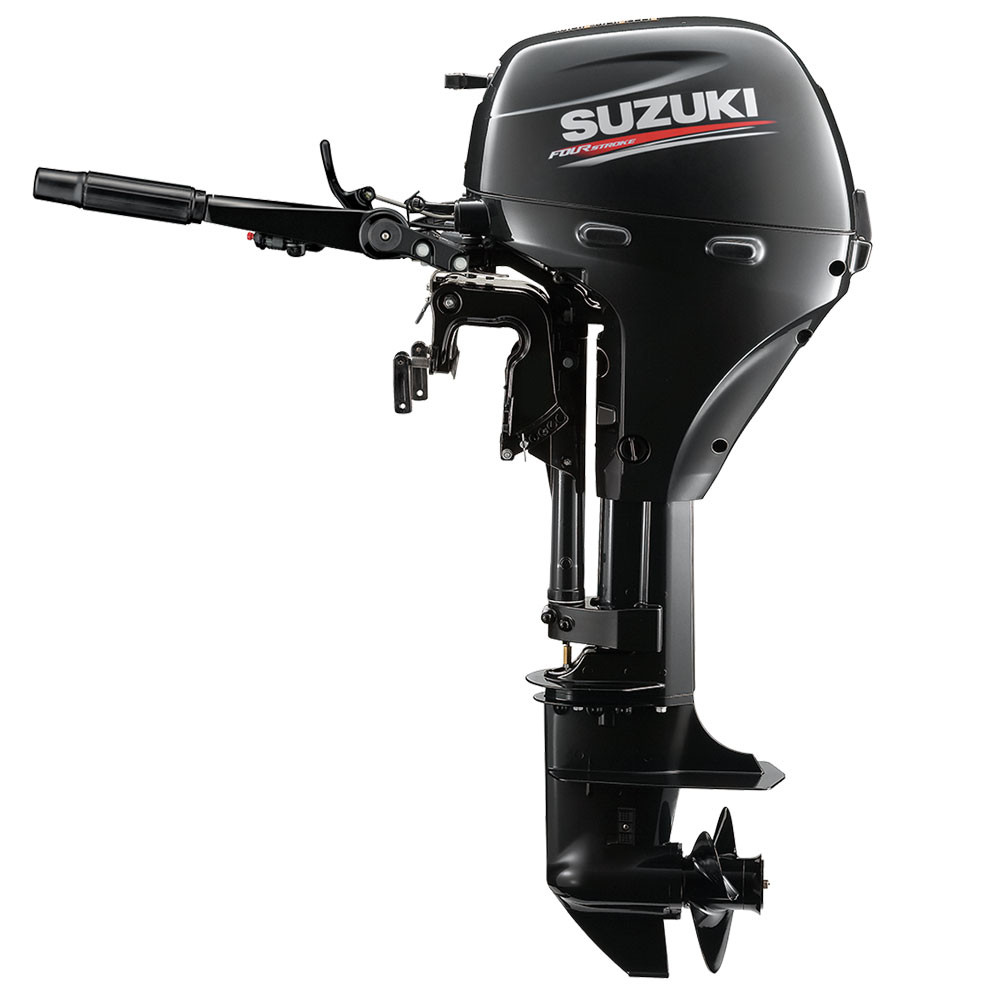

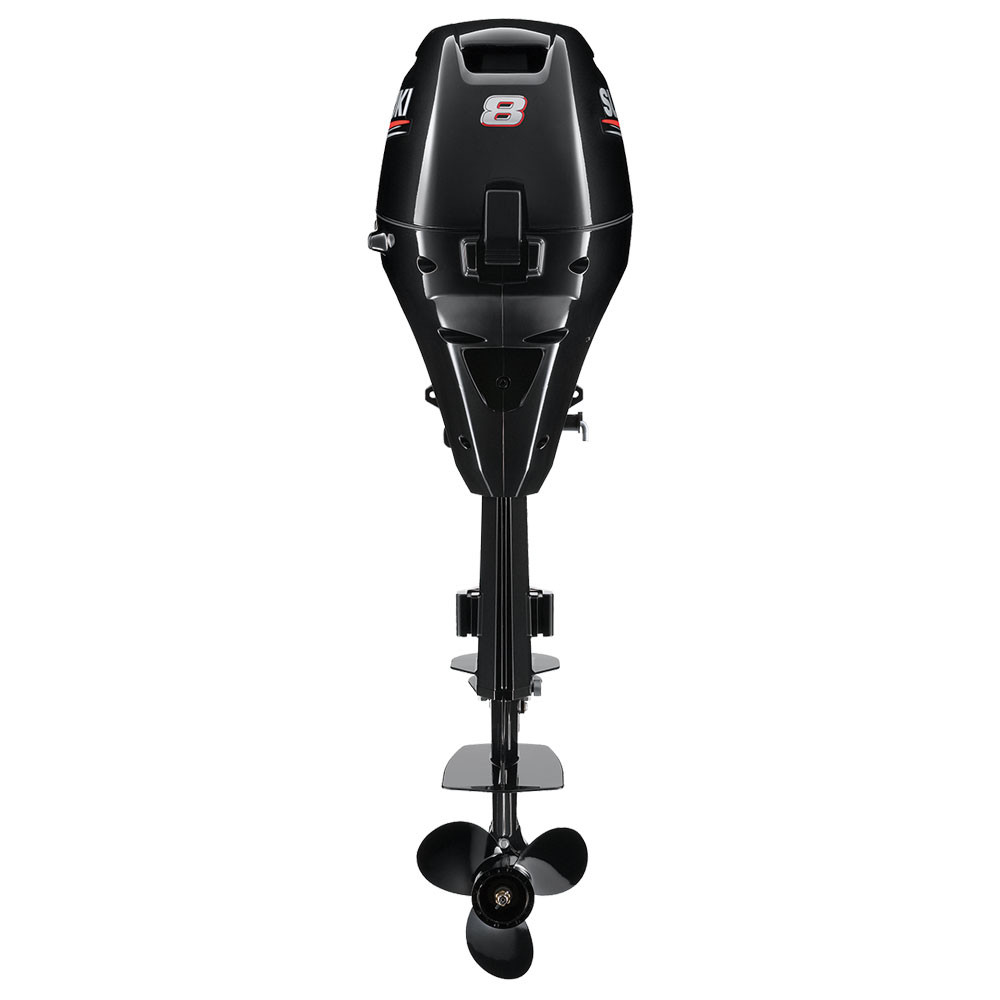

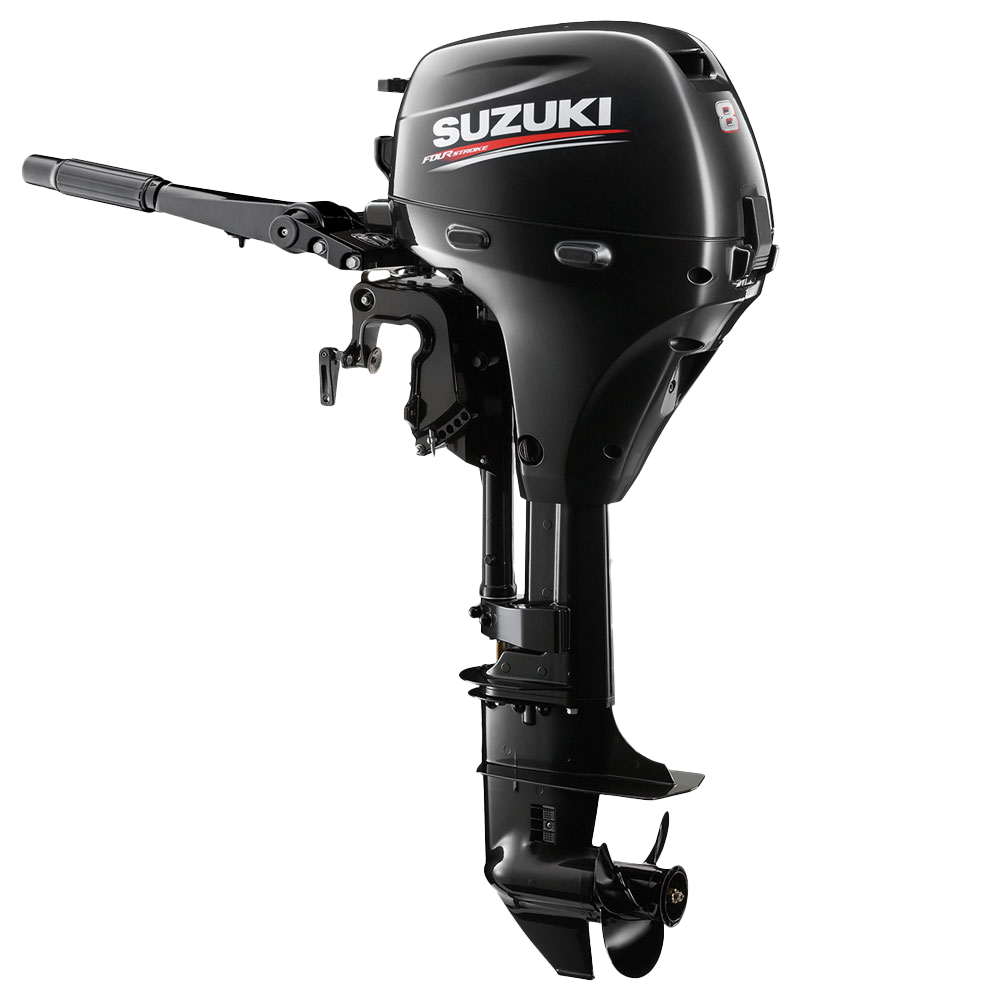

Suzuki Engine DF8AS
Description
A new generation of small outboard designed with features that offer greater ease of use, better portability and more economical operation.
Lightweight and compact
Compact dimensions and stylish design make this outboard genuinely portable and easy to install and operate.
Suzuki Anti-Corrosion Finish
Specially formulated to protect your outboard from exposure to salt and fresh water.
Economical operation
Offers a wide operating range providing fuel efficiency at low and high speeds.
| Steering Type | Tiller |
| Tilt | Manual |
| Starter | Manual |
| Shaft Length | Short (381mm / 15 inches) |
| Weight | 39.5kg |
Key Features
- Recommended transom height: 381mm (15in)
- Weight: 39.5kg
- Bore x Stroke: 51 x 51mm
- Propeller Selection (pitch): 9"
- Starting System: Manual
- Engine Type: 4-Stroke OHC
- Fuel Delivery System: Carburettor
- No. of Cylinders: 2
- Piston Displacement: 208cc
- Maximum Output: 5.9KW
- Full Throttle Operating Range: 4,700 - 5,700
- Steering: Tiller
- Choke: Manual
- Oil Pan Capacity: 0.8L
- Fuel Tank Capacity: 12L
- Ignition System: Digital CDI
- Alternator: 12V 6A
- Engine Mounting: Shear Mount
- Trim Method: Manual Trim and Tilt
- Gear Ratio: 2.08:1
- Gear Shift: F-N-R
- Exhaust: Through Prop Hub Exhaust
