ARION: Asset Recovery System
Description
ARION
Asset Recovery Indicating Over-depth Notification
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯

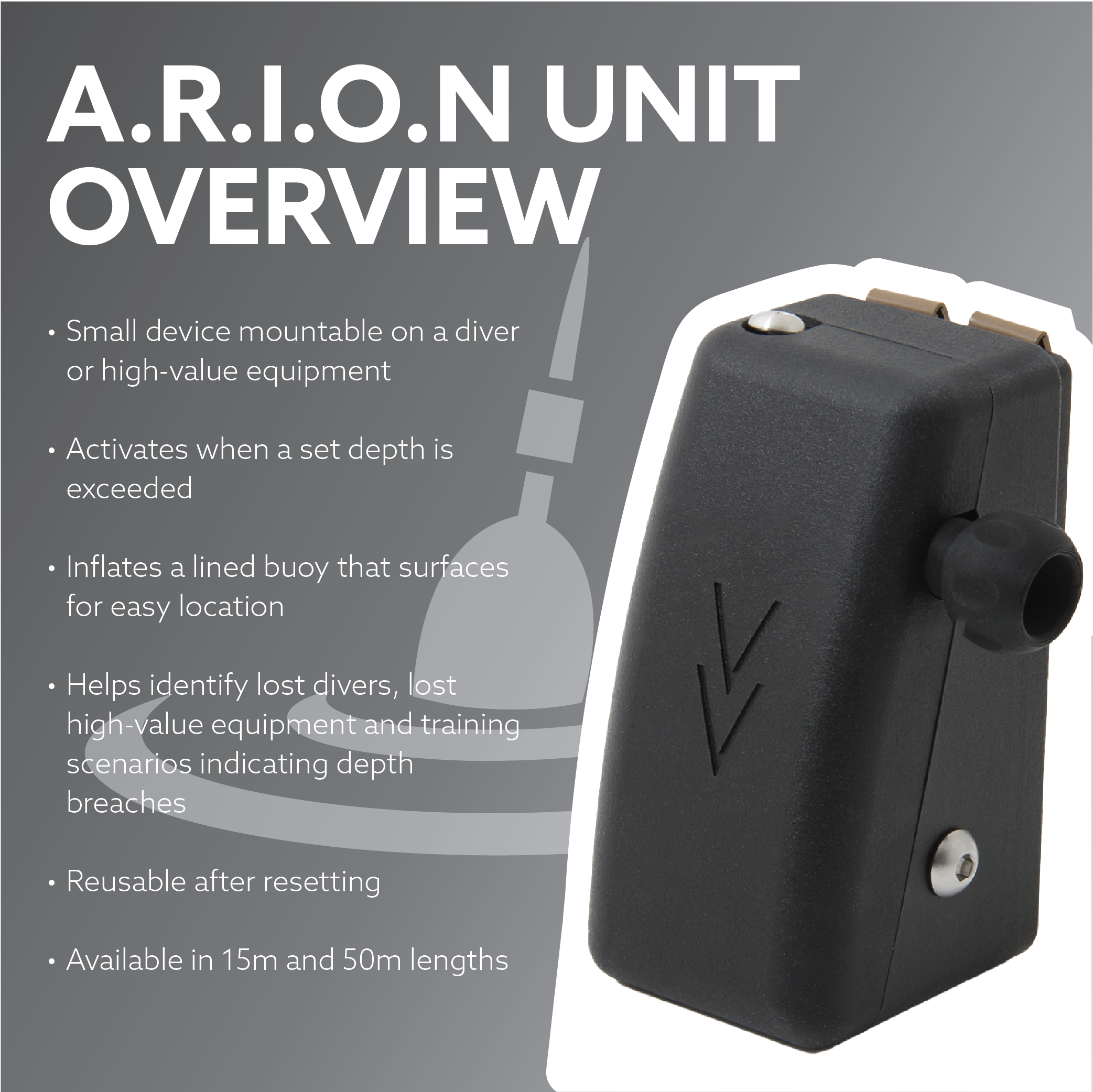

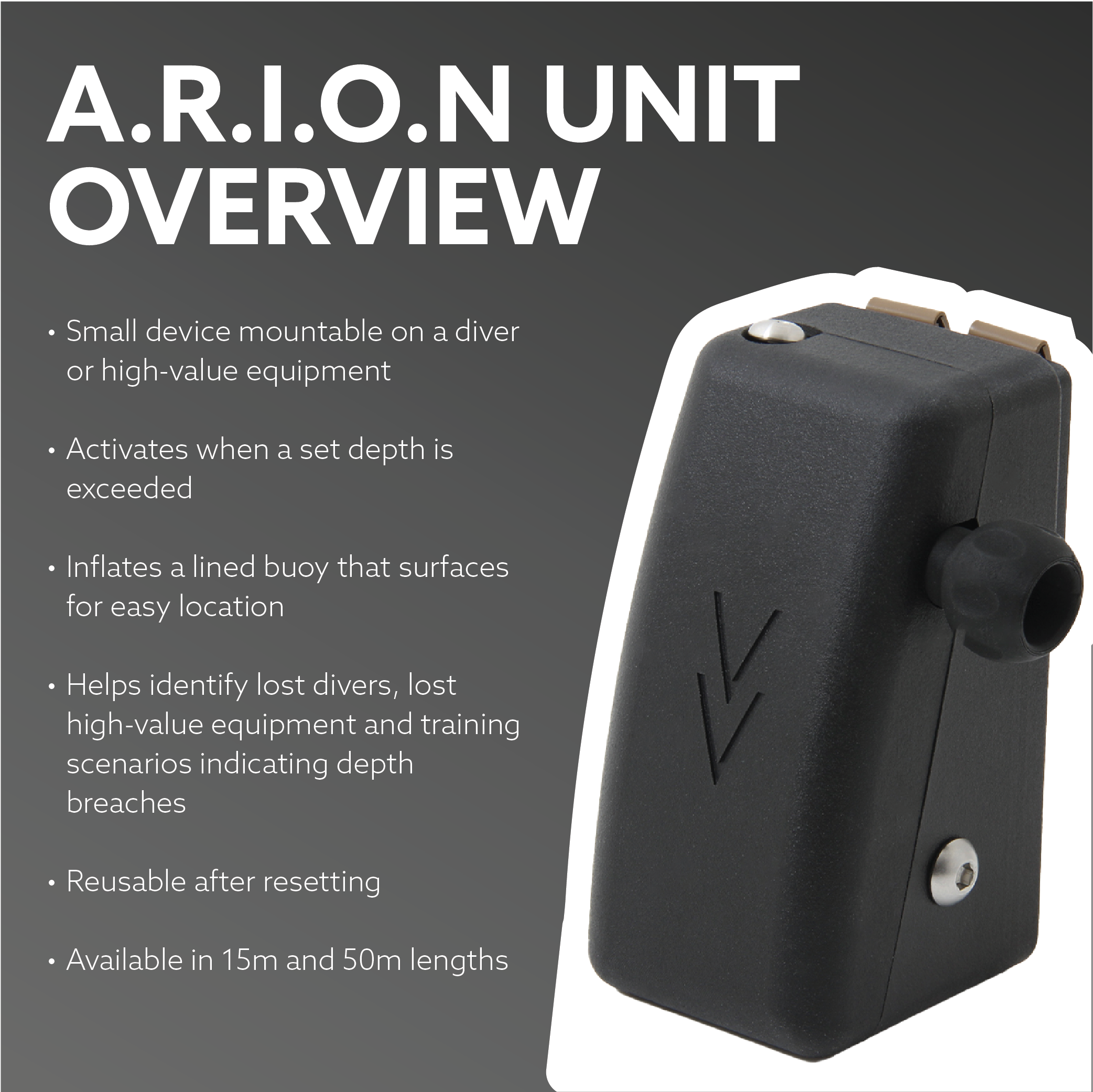

A small device that can be mounted to a BCD, cylinder, or any high-value equipment; once a pre-determined set depth is exceeded, the system will fire and inflate a lined buoy to the surface. ARION is designed to assist in identifying a lost diver, important equipment, and/or aid in training scenarios to indicate when a diver has dropped below the set depth.

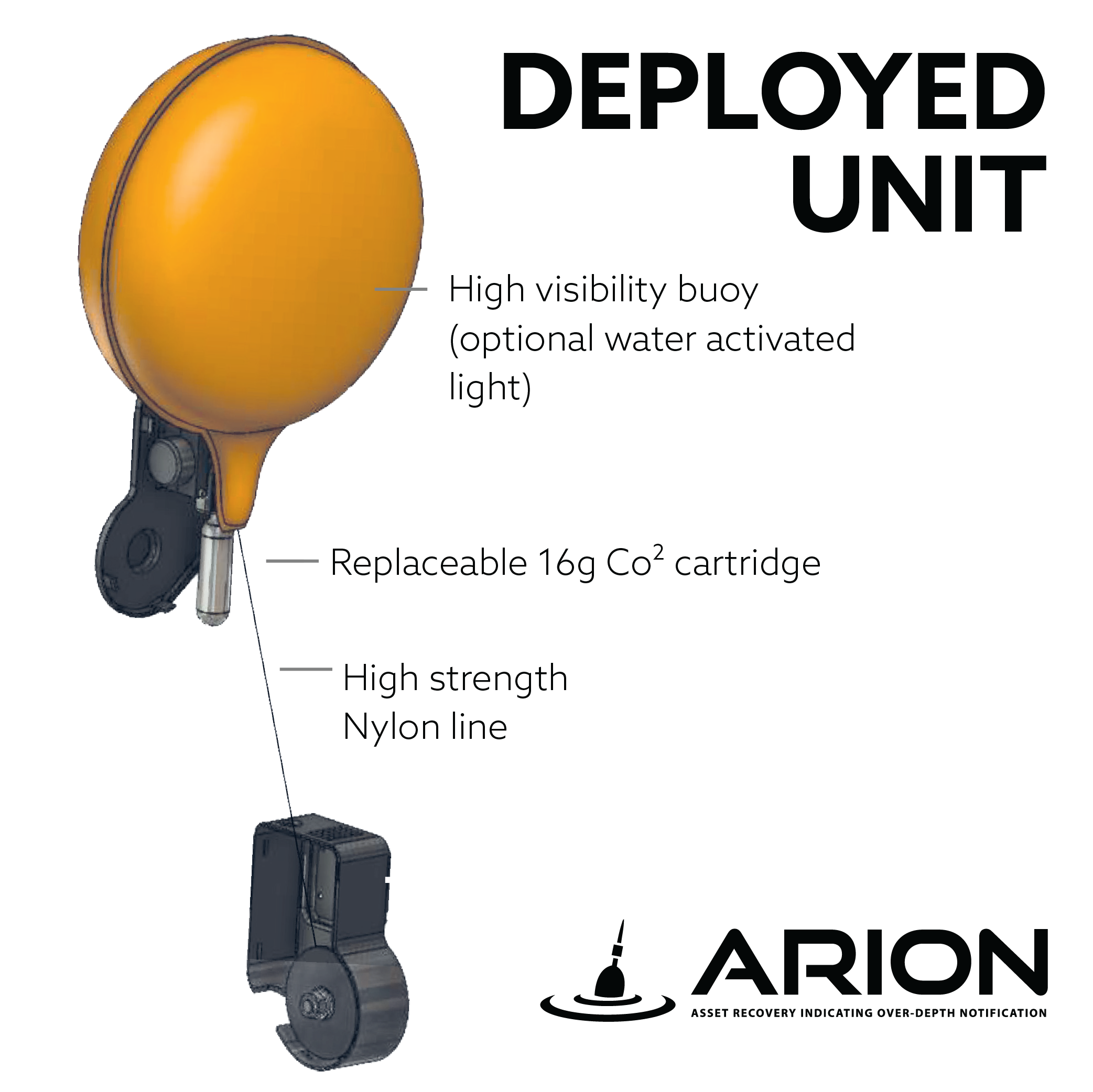

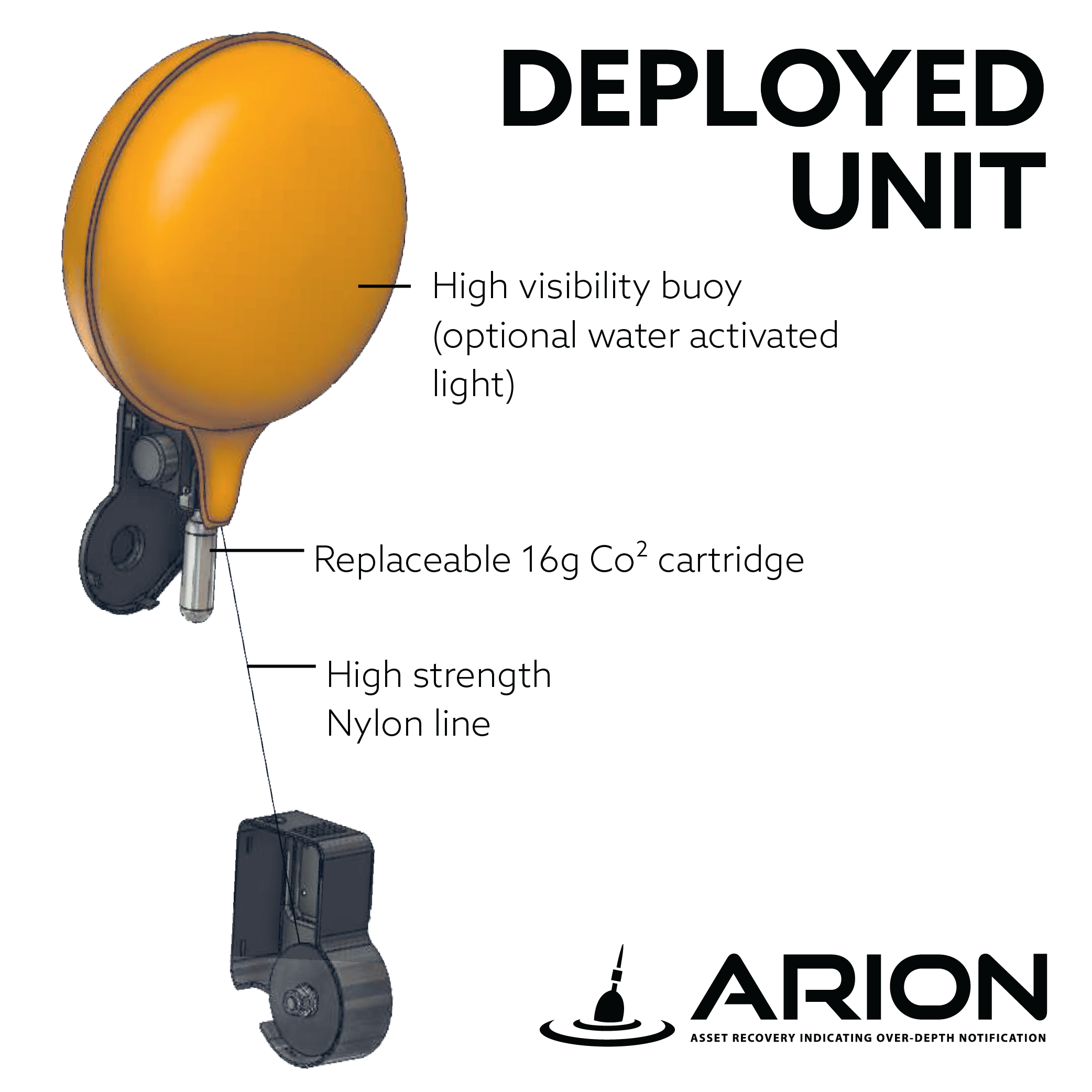

The depth is set by Northern Diver engineers and detected by way of a sensor on the device. On triggering, the buoy (which comes in varying colours depending on stealth or visibility requirements) inflates and rises to the surface on a line of a pre-determined length.
A small device that can be mounted to a BCD, cylinder, or any high-value equipment; once a pre-determined set depth is exceeded, the system will fire and inflate a lined buoy to the surface. ARION is designed to assist in identifying a lost diver, important equipment, and/or aid in training scenarios to indicate when a diver has dropped below the set depth.
The depth is set by Northern Diver engineers and detected by way of a sensor on the device. On triggering, the buoy (which comes in varying colours depending on stealth or visibility requirements) inflates and rises to the surface on a line of a pre-determined length.

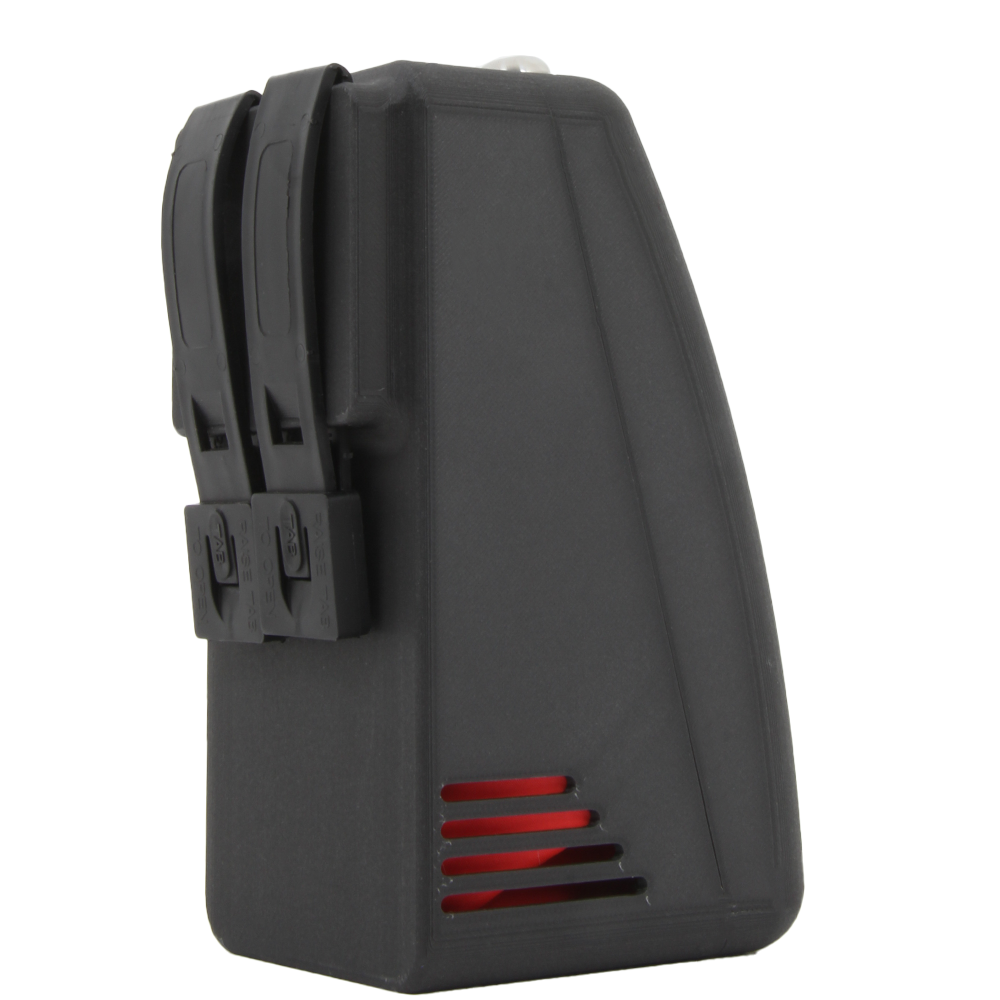

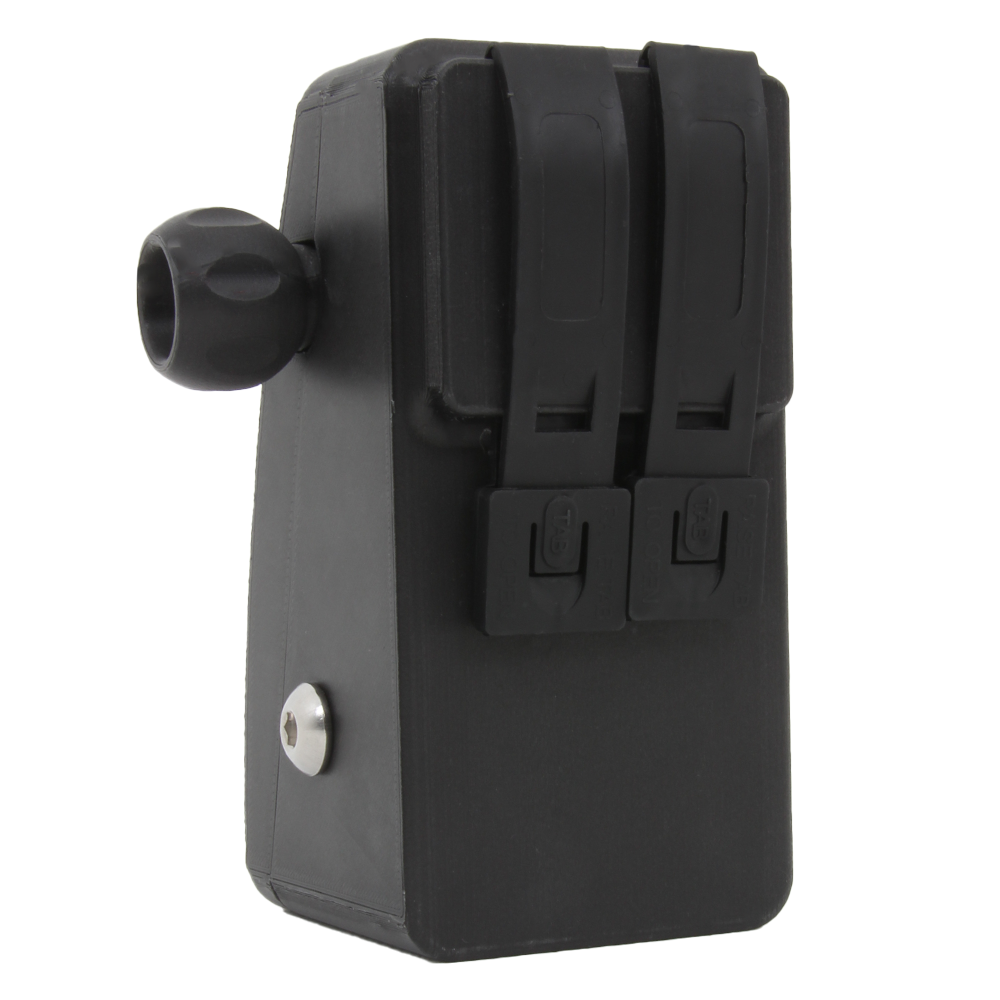

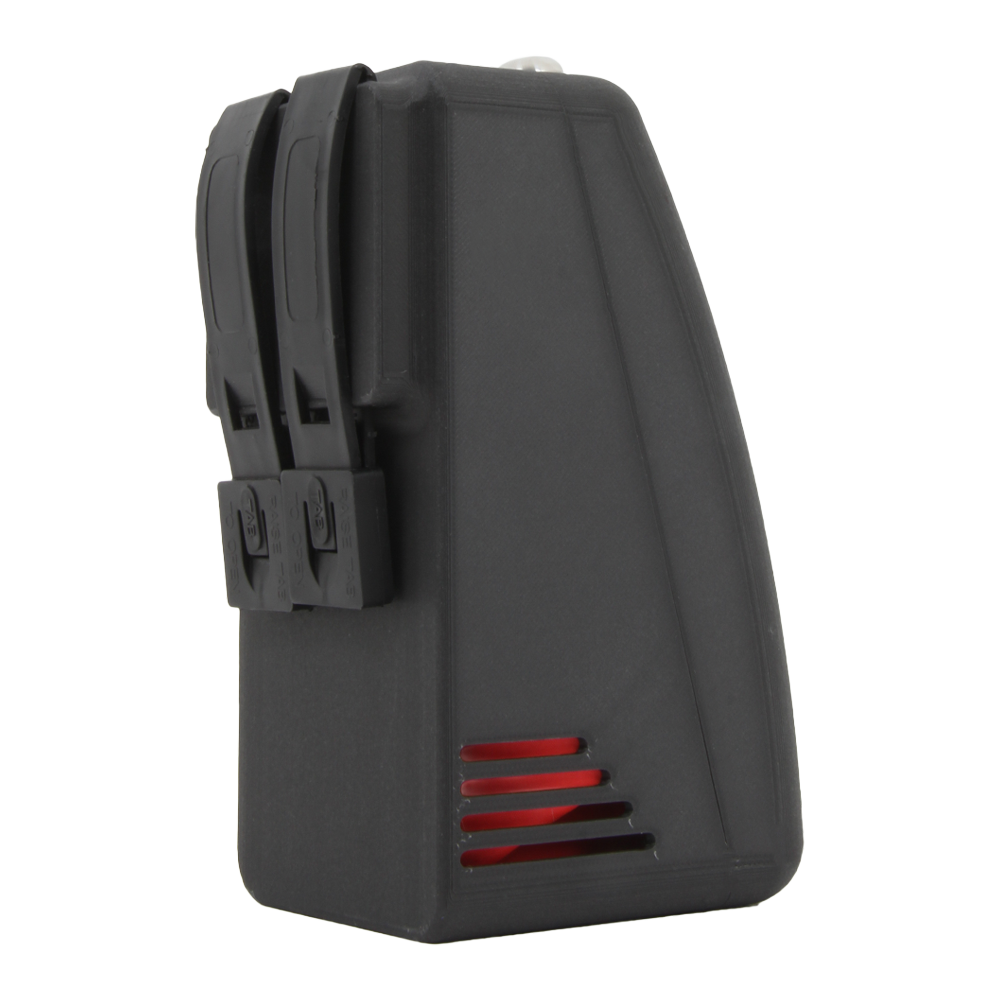

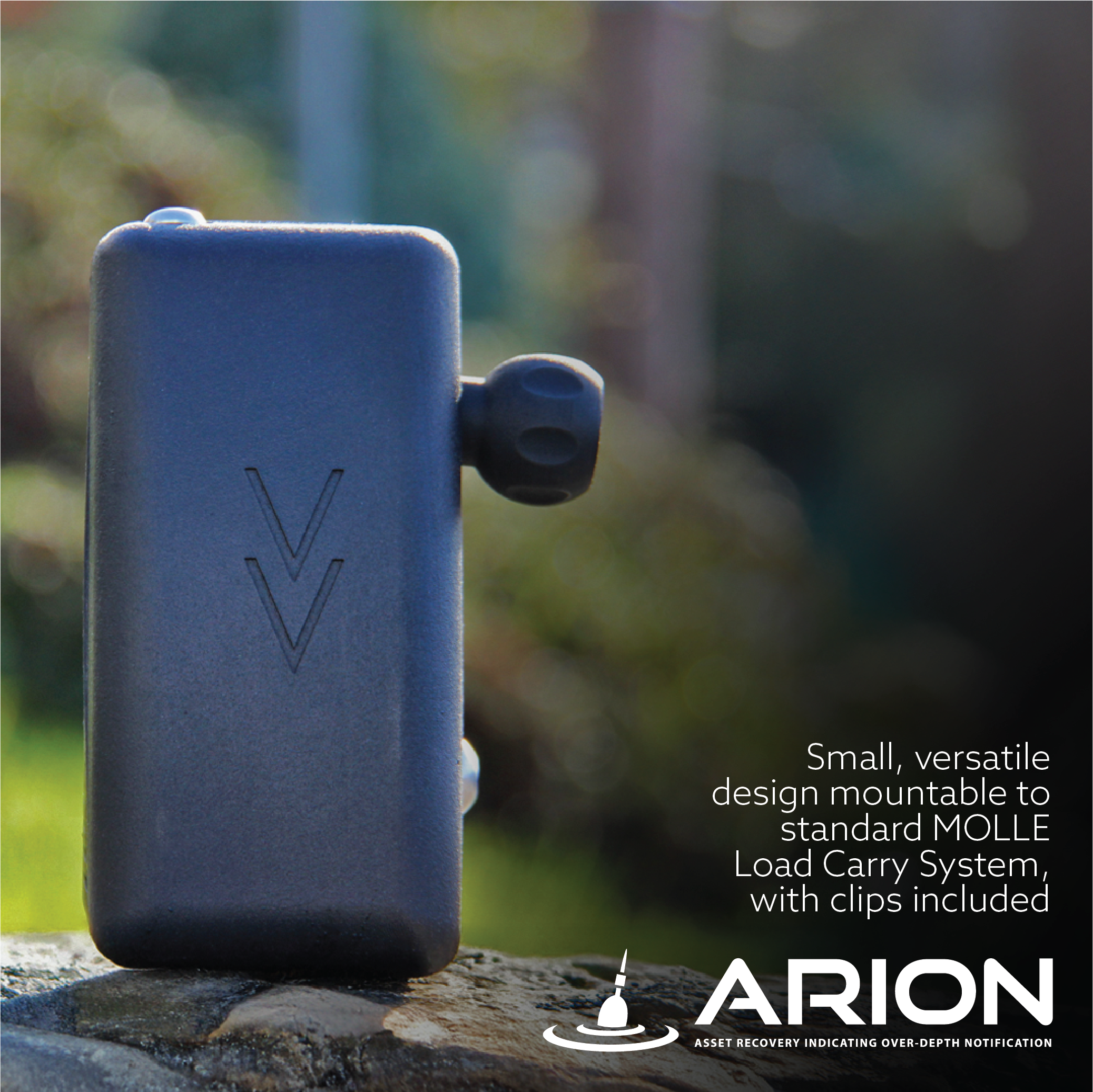

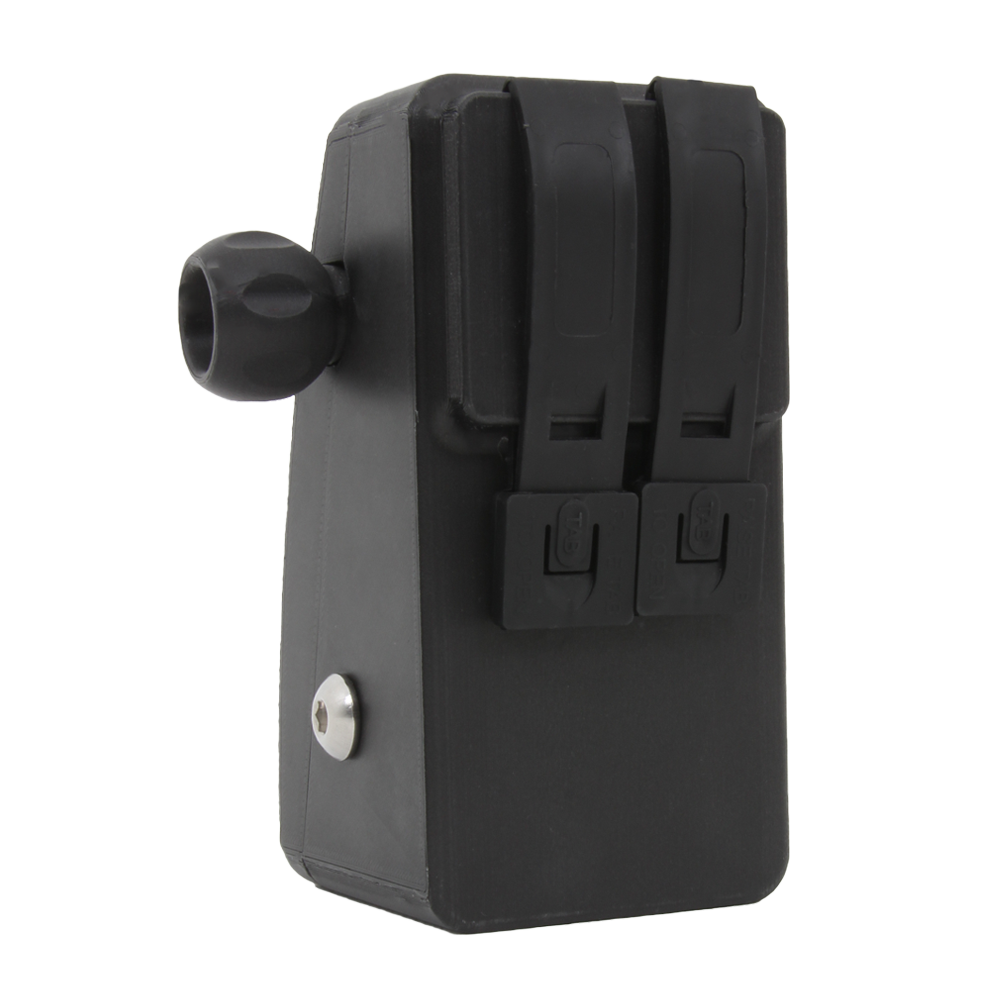

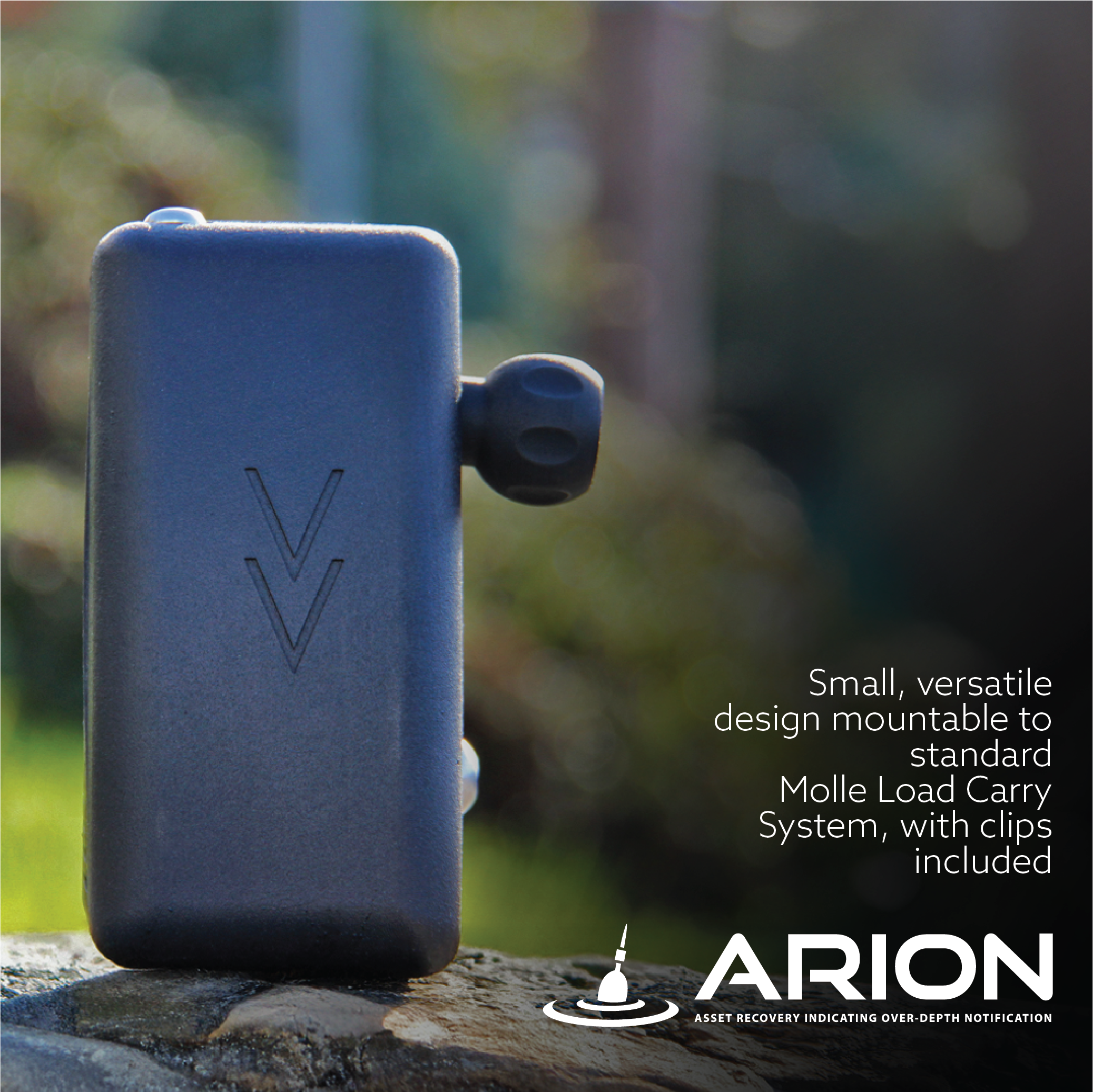

Mounts to standard MOLLE Load Carry System (securing clips included)
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯

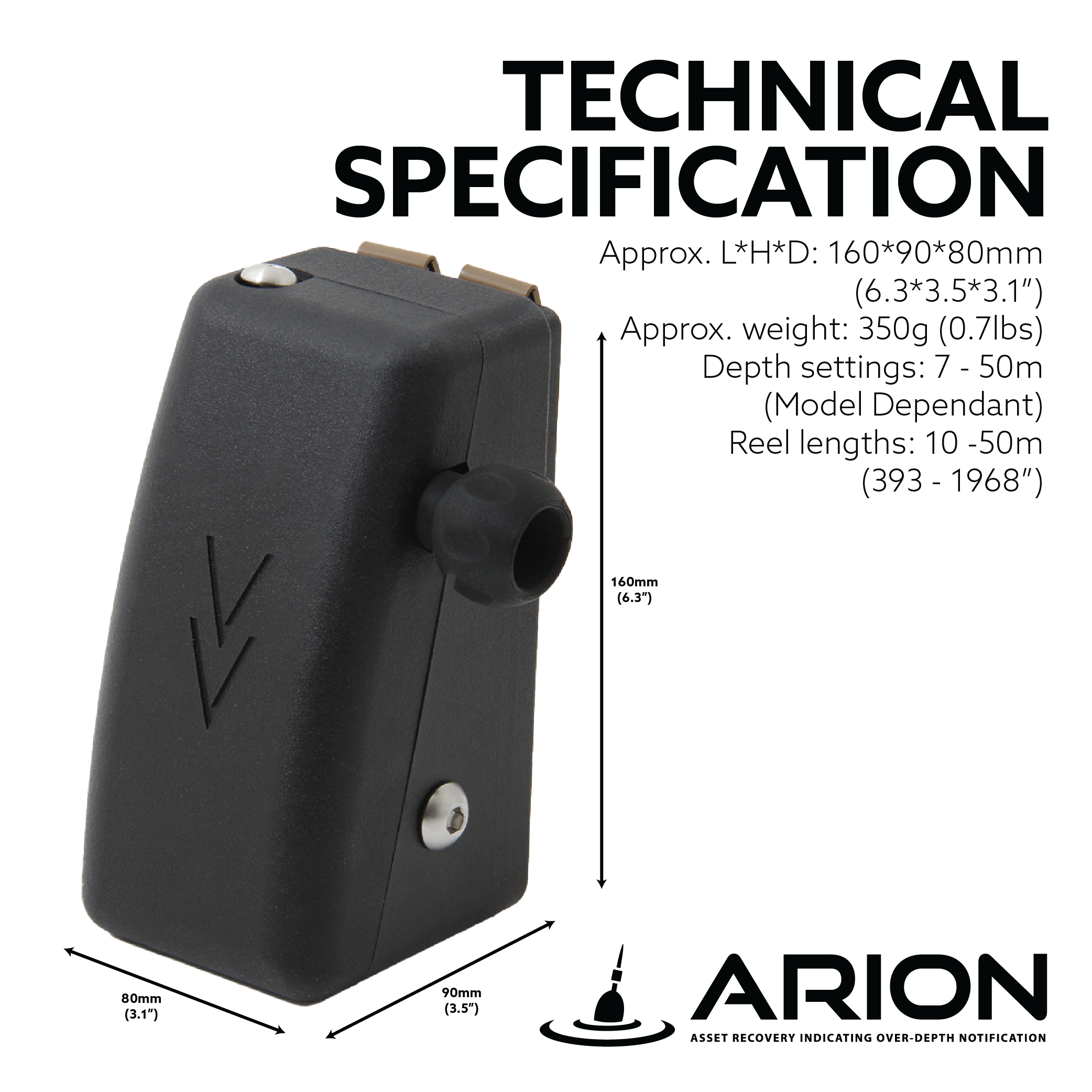

➤ TECHNICAL
Approx. L*H*D: 150*115*85 mm ( 5.91*4.53*3.35" )
Approx. Weight: 350 g ( 0.77 lbs )
Depth Settings: 7 - 50 m ( 23' - 164' ) (Model Dependant)
Reel Lengths: 10 – 50 m ( 32'10" - 164'0.5" )
CO² cartridge: 16 g ( 0.035 lbs )
Buoy diameter: 350 mm ( 13.78" )
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
➤ TECHNICAL
Approx. L*H*D: 150*115*85 mm ( 5.91*4.53*3.35" )
Approx. Weight: 350 g ( 0.77 lbs )
Depth Settings: 7 - 50 m ( 23' - 164' ) (Model Dependant)
Reel Lengths: 10 – 50 m ( 32'10" - 164'0.5" )
CO² cartridge: 16 g ( 0.035 lbs )
Buoy diameter: 350 mm ( 13.78" )
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
➤ LENGTHS AVAILABLE
ND0003630 ( 15m | 49'2.5" )
ND0003631 ( 50m | 164.05" )
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
ND0003630 ( 15m | 49'2.5" )
ND0003631 ( 50m | 164.05" )
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
➤ OPTIONAL EXTRAS
A water activated flashing beacon can be fitted to the inflation buoy for night operations.
A water activated flashing beacon can be fitted to the inflation buoy for night operations.
Key Features
- Asset Recovery Indicating Over-depth Notification

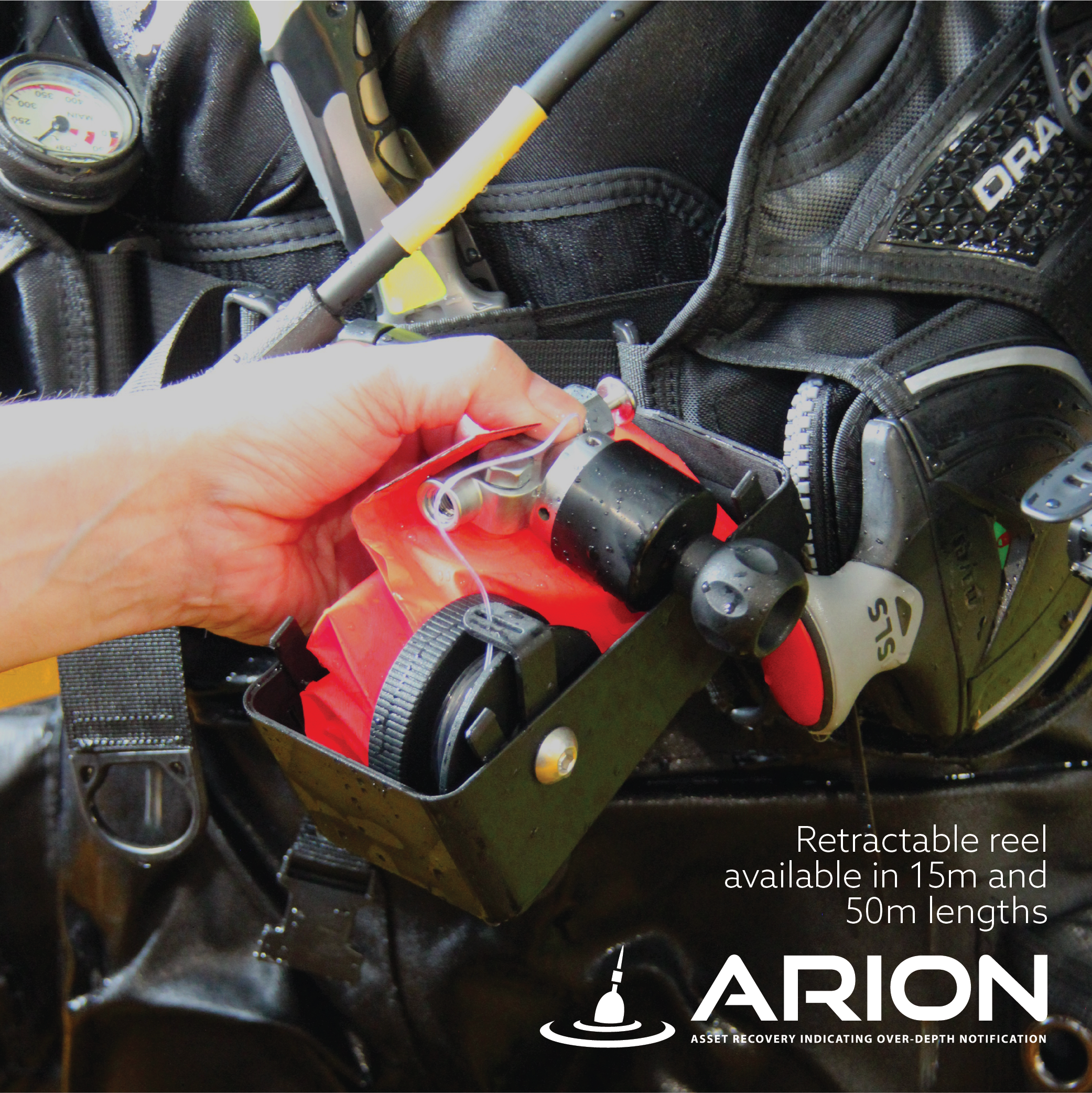

- 15 - 50 metre line length

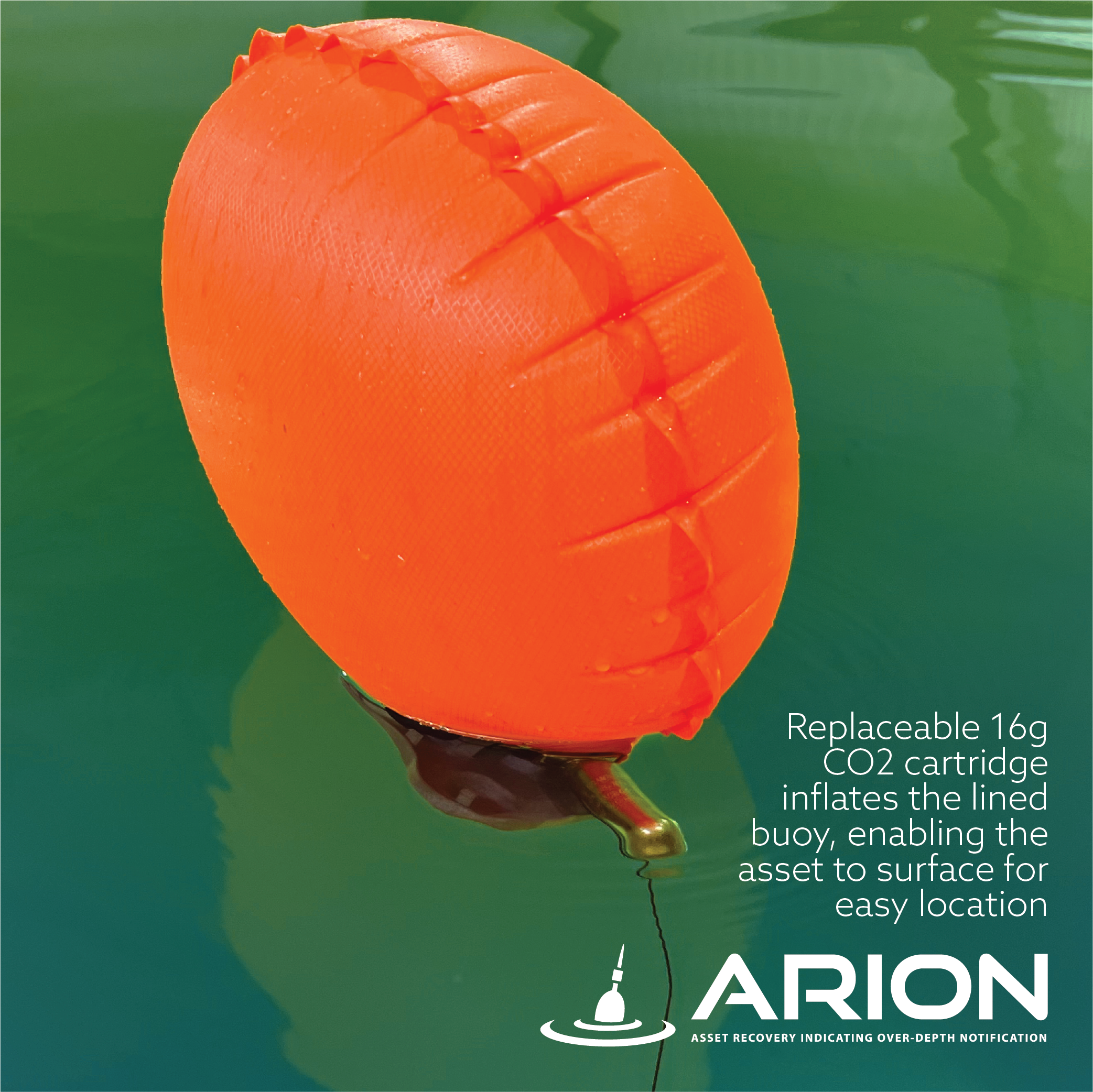

- Reusable, with replaceable CO₂ Inflation Cartridge
- MOLLE Load System Compatible
- Buoy with Optional Flashing Light for Surface Identification and Recovery
- Customisable Depth Sensor for Specific Exceeded Depth Inflation
