RR5 Inflatable Self-Righting Rapid Deployment Raft
Description
RR5 | Self-Righting Rapid Deployment Rescue Raft (4.7 m | 15'4")

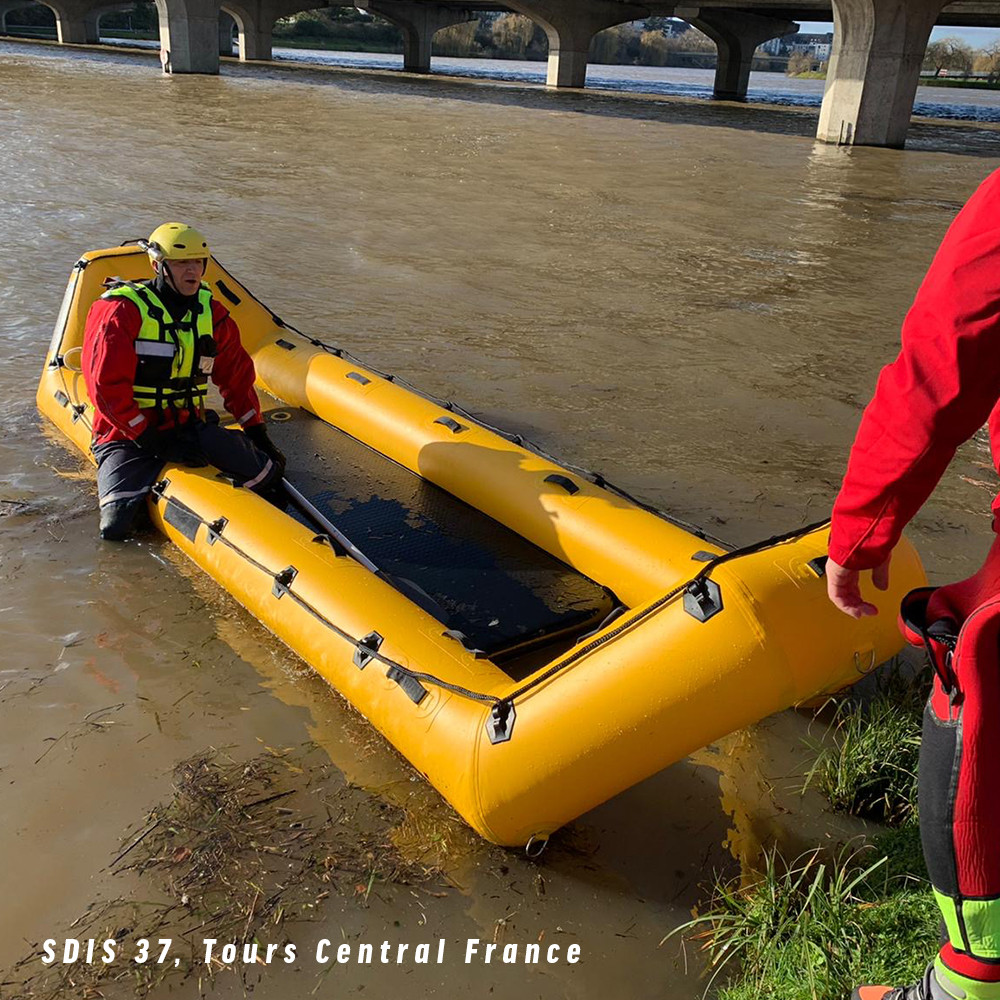

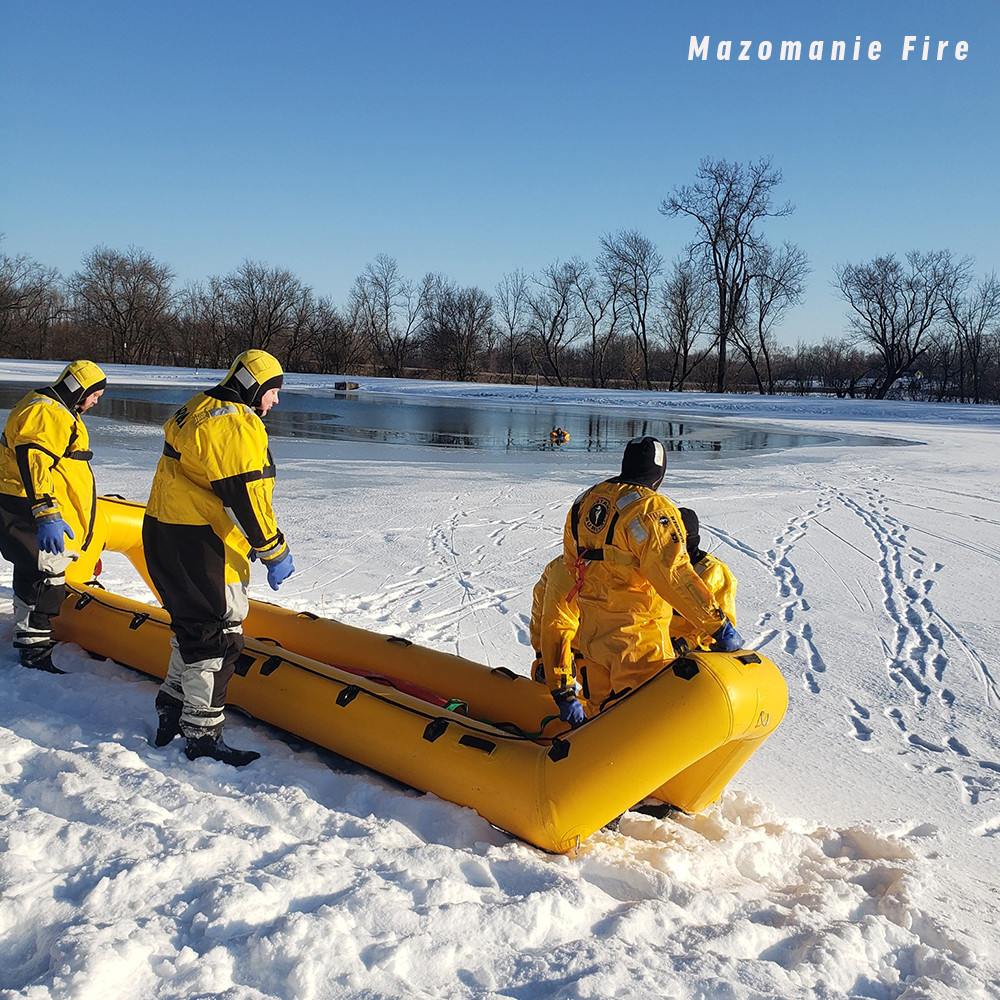

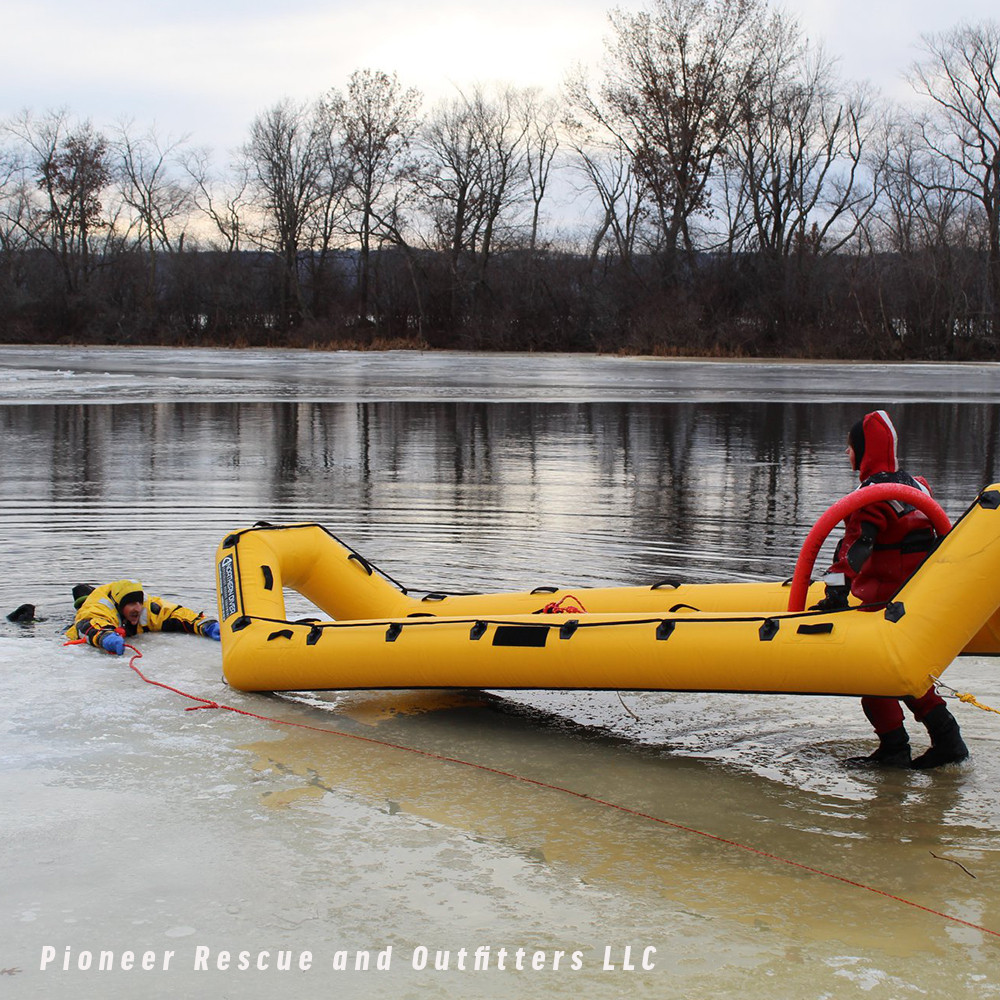

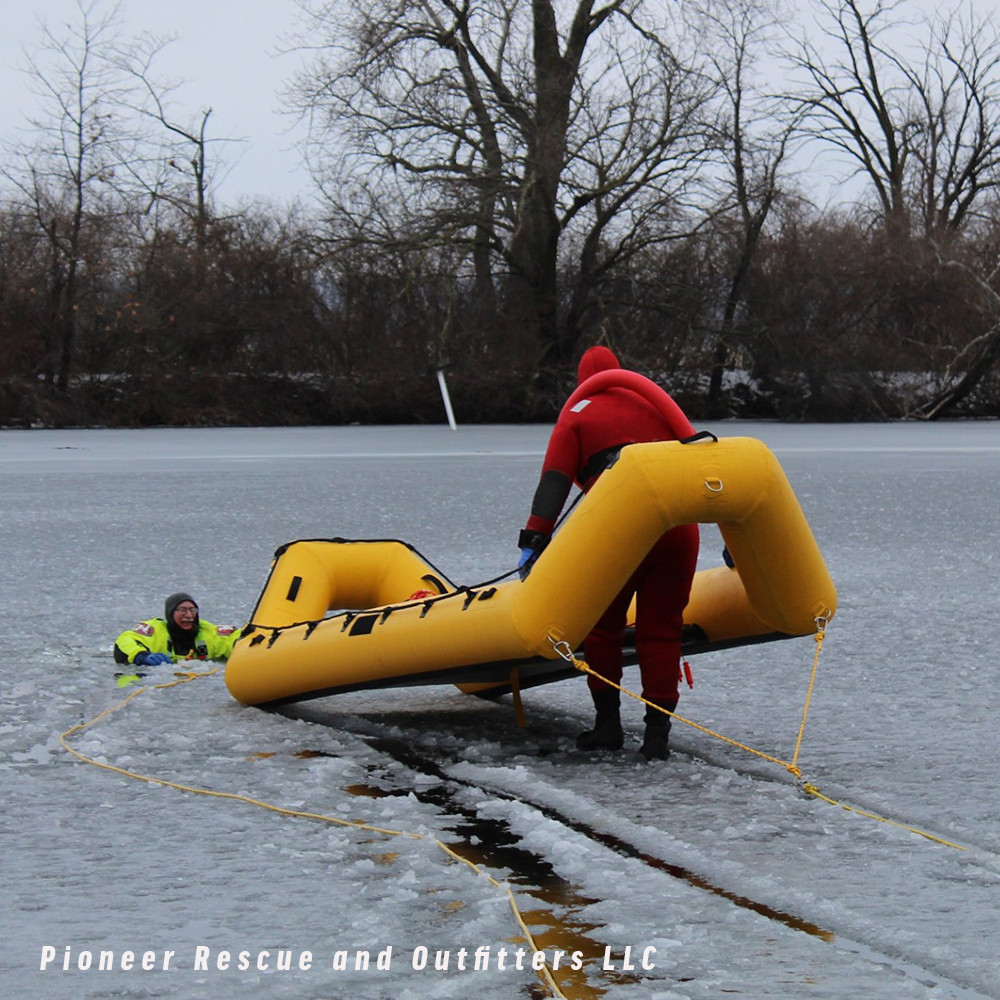

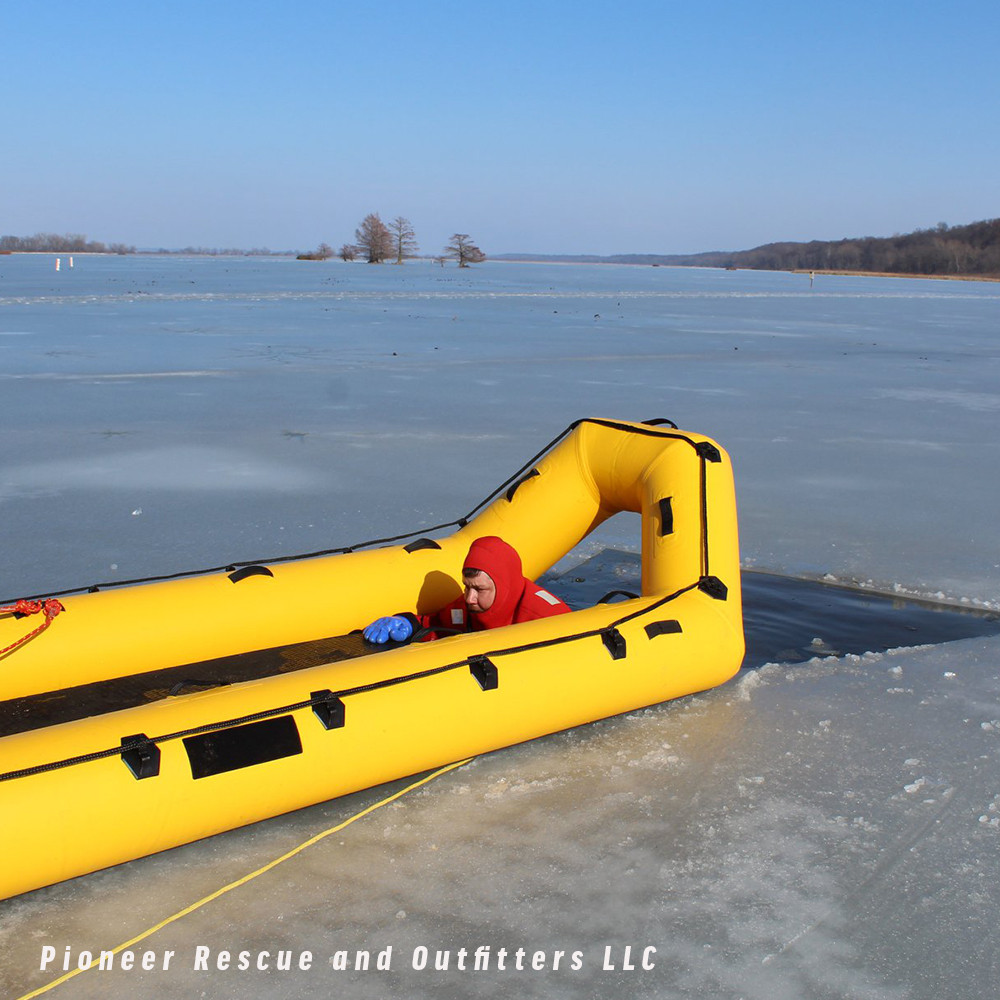

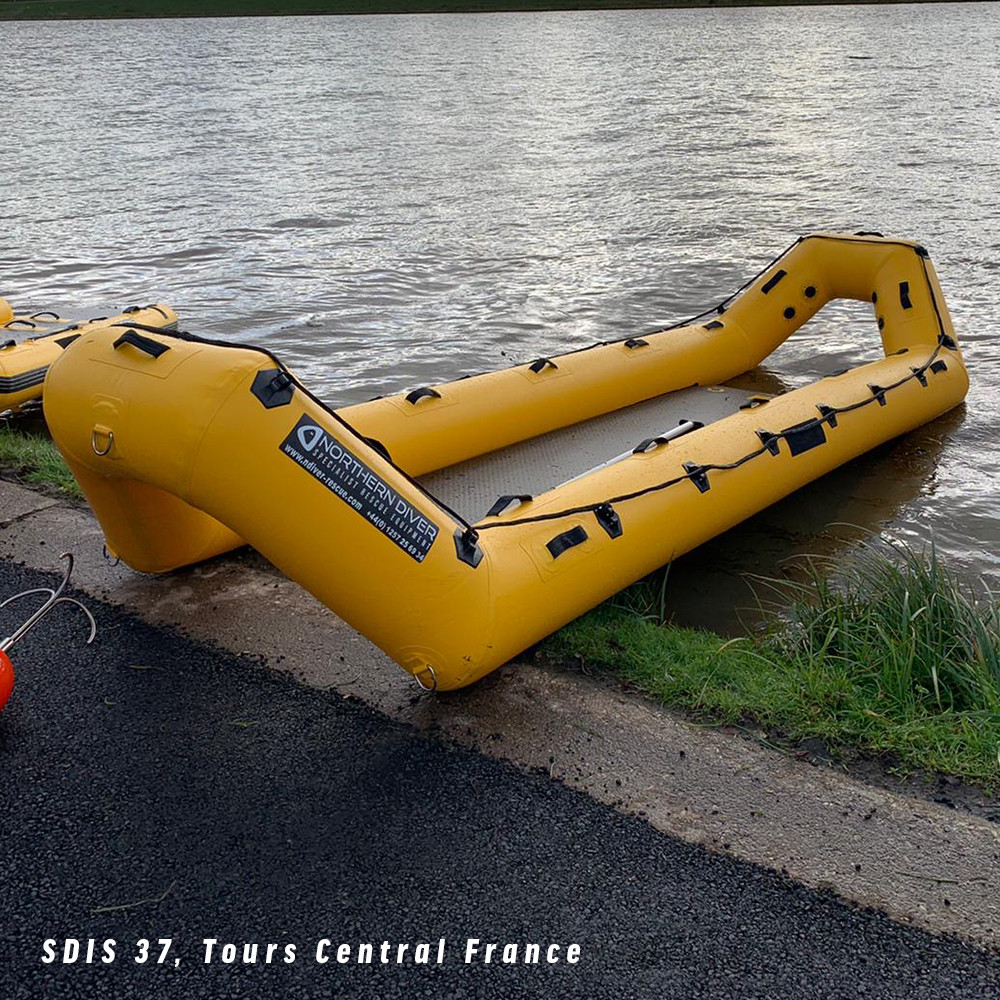

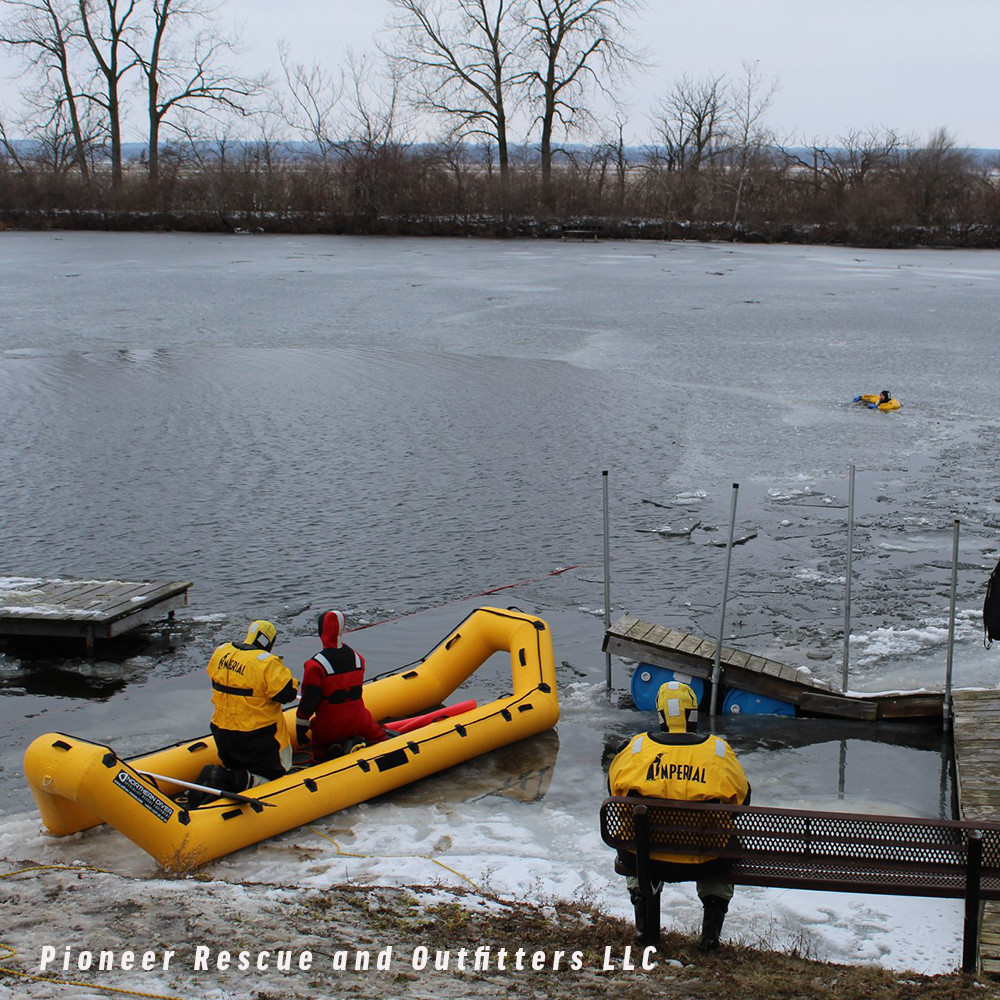

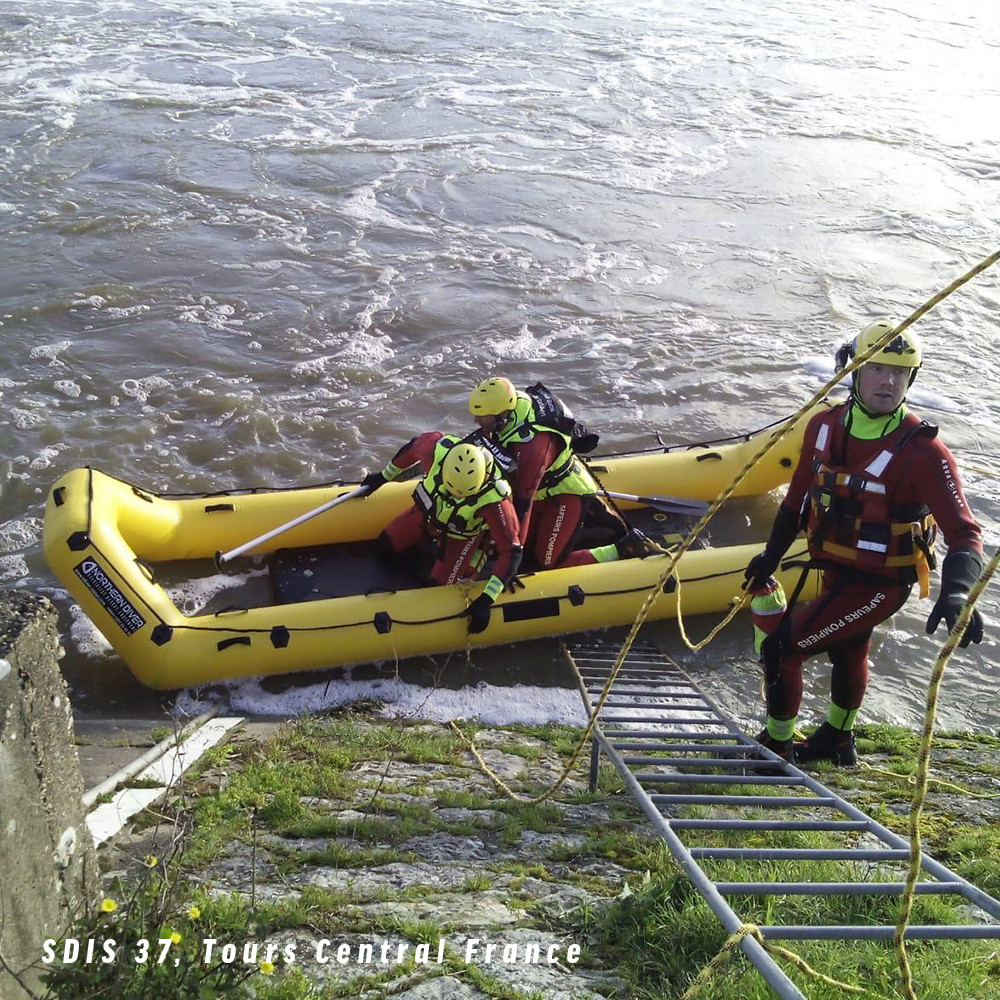

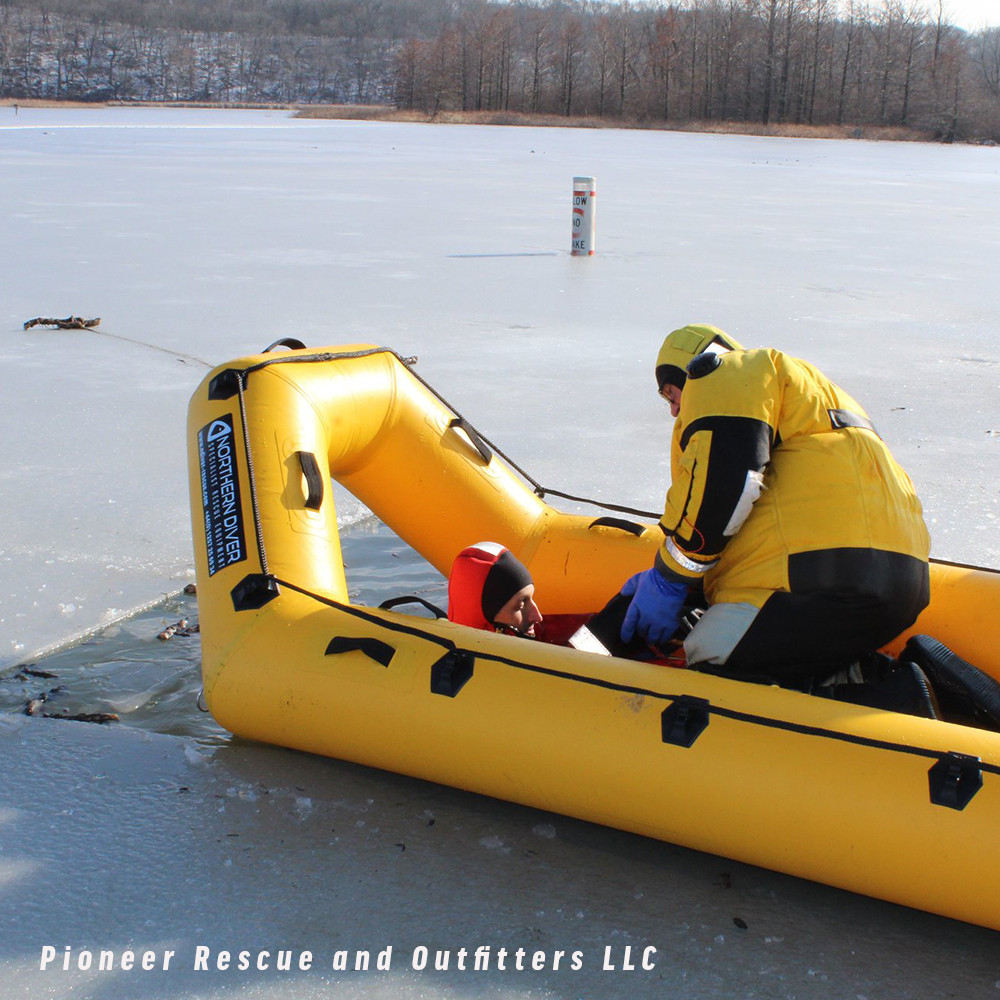

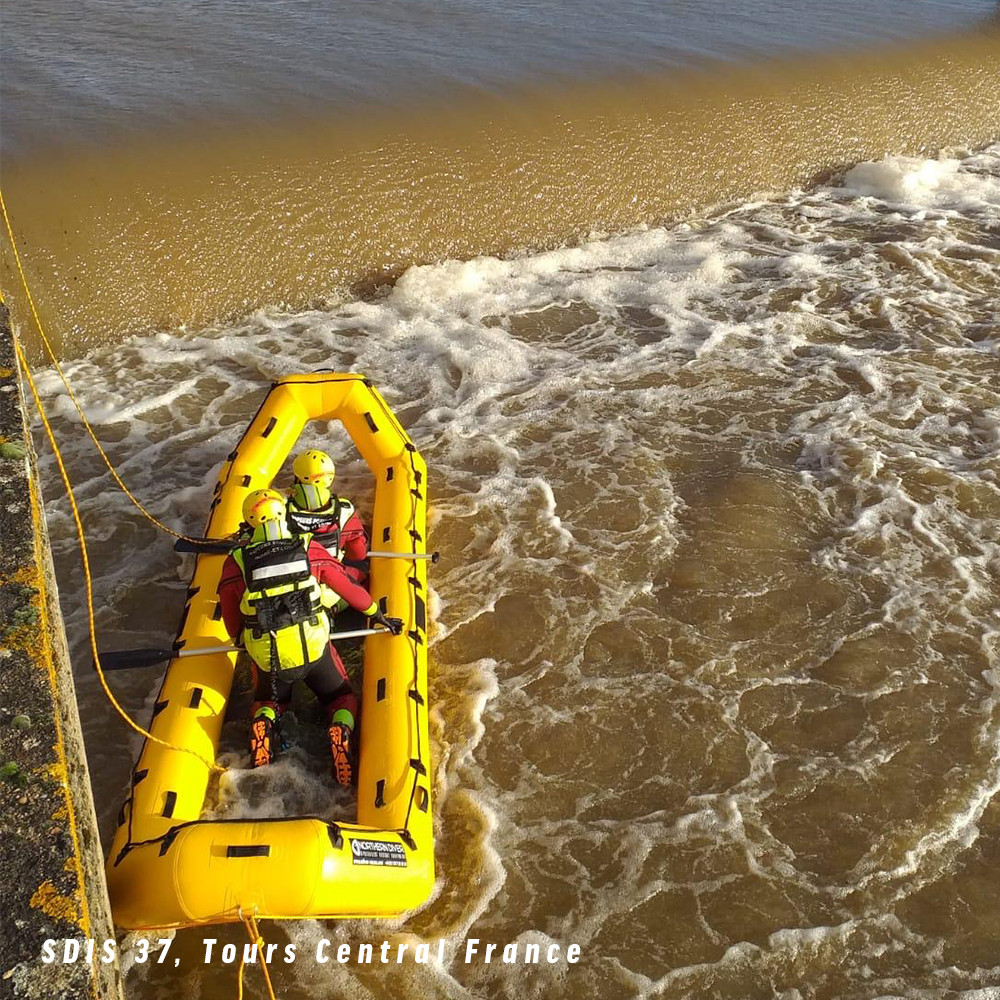

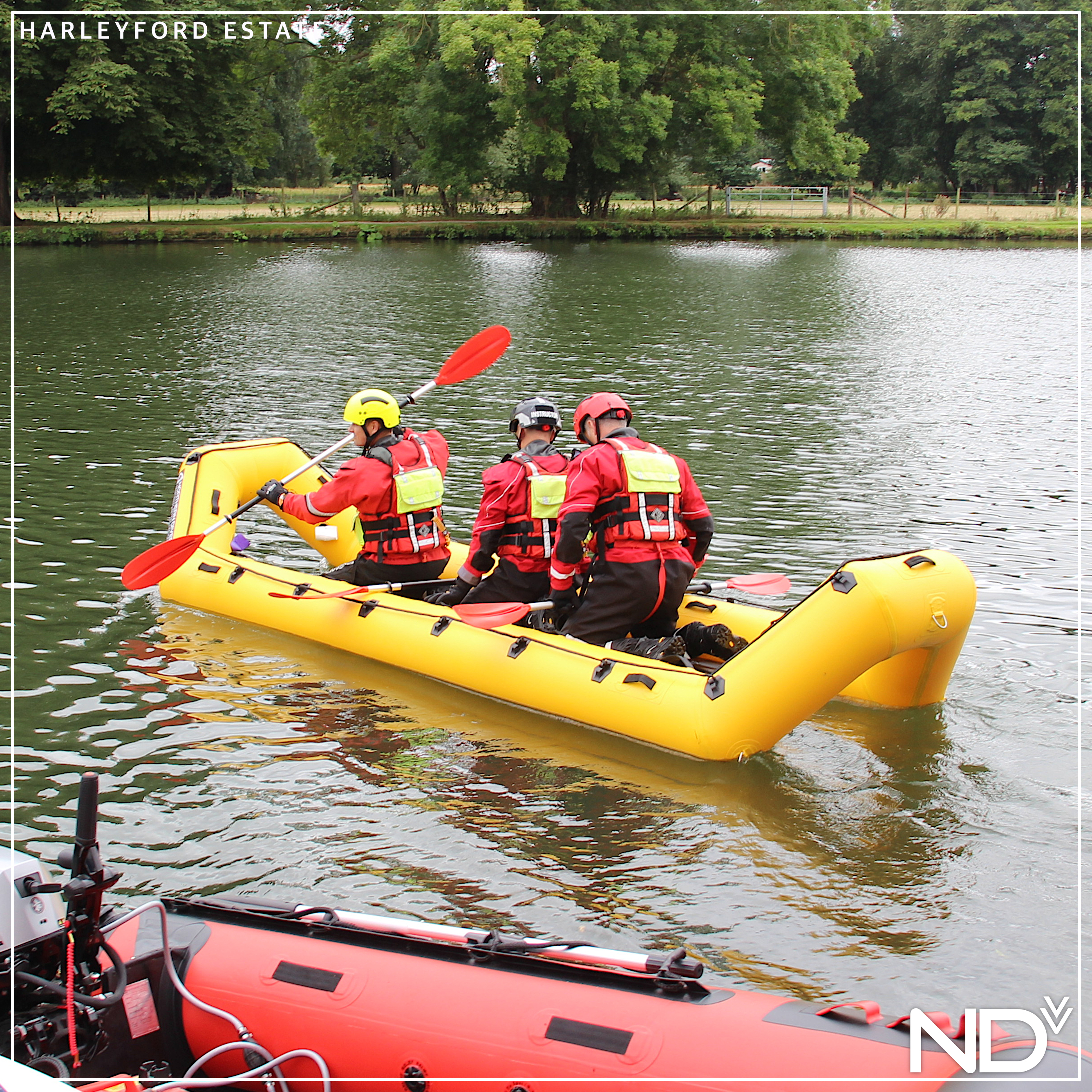

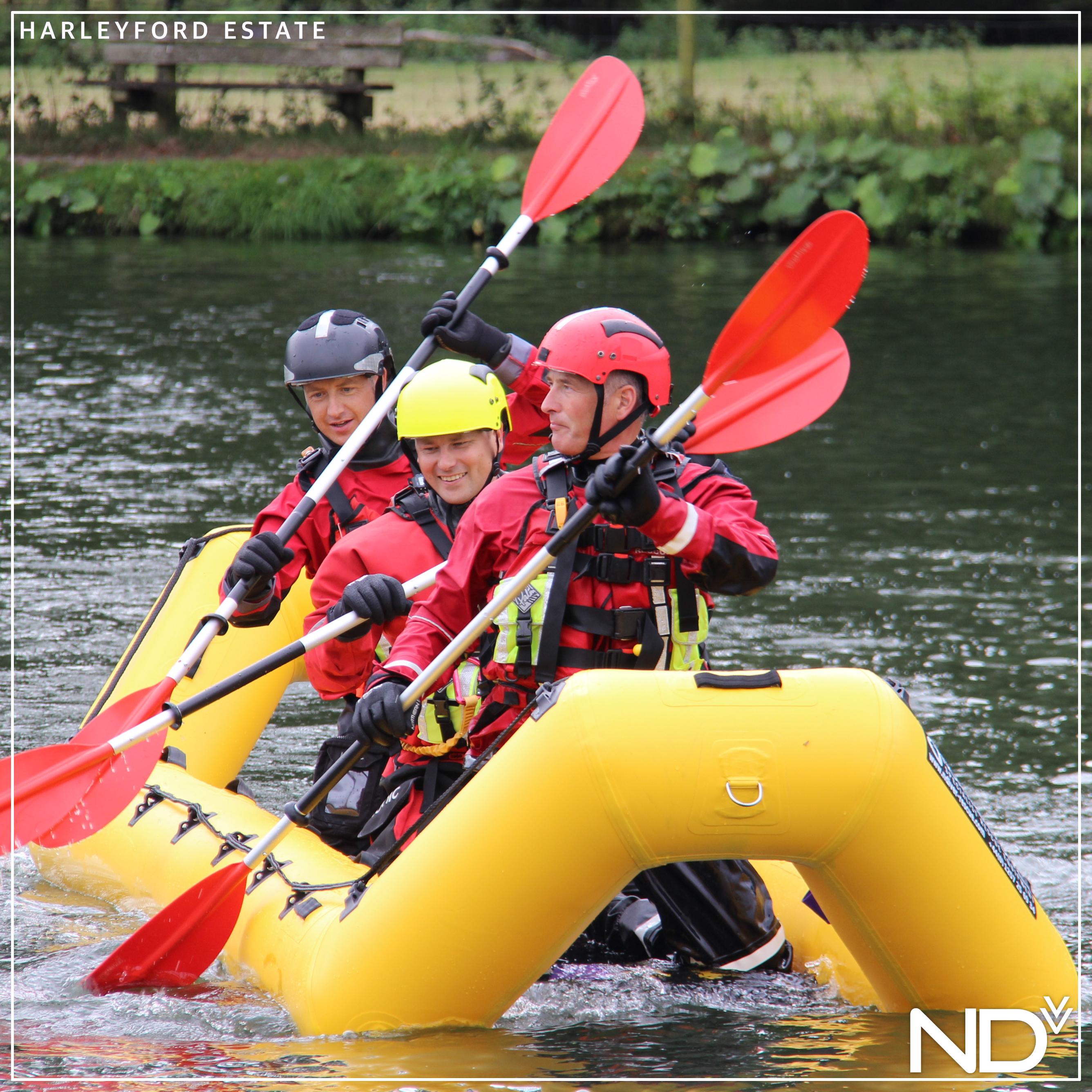

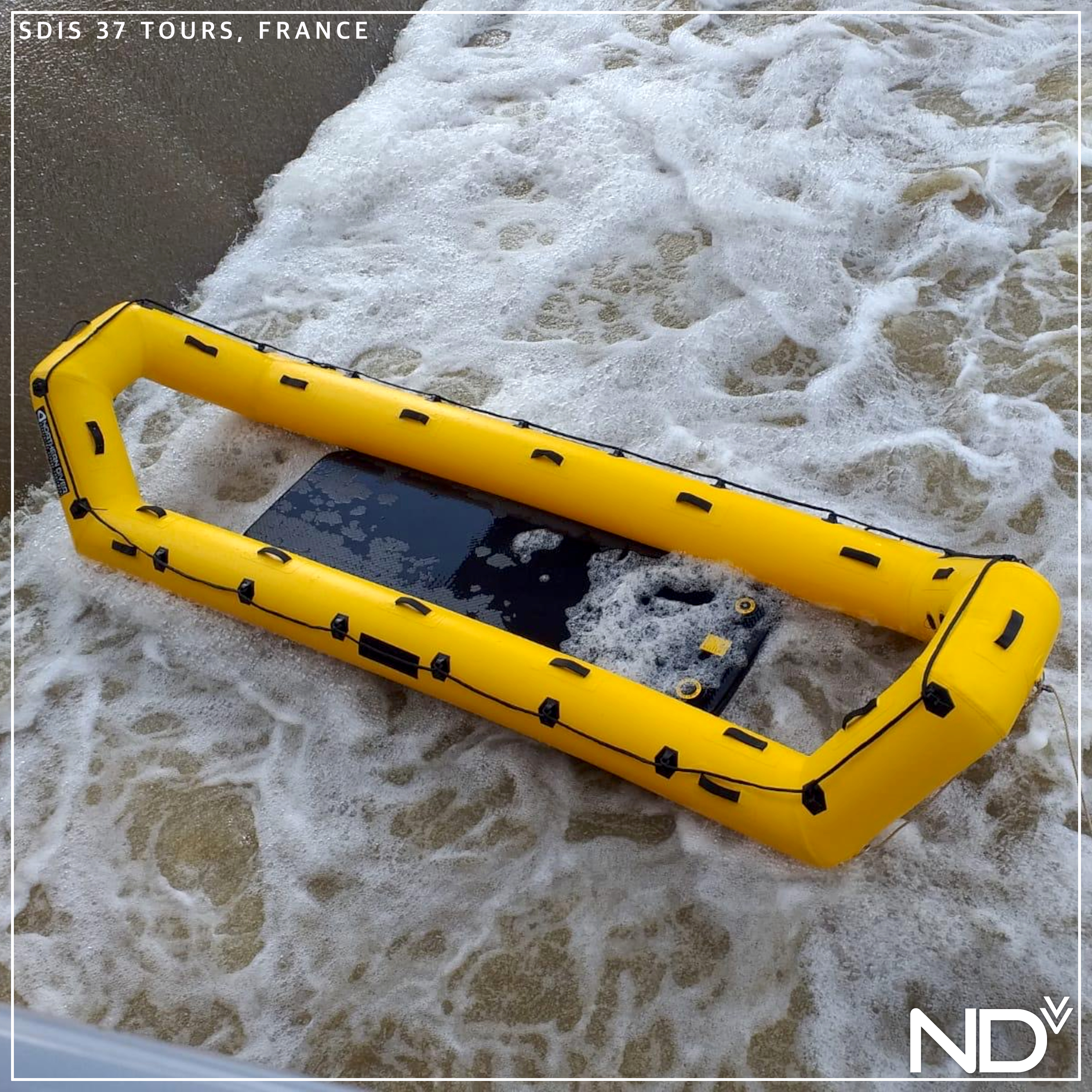

Designed with the most hazardous cold-water and ice conditions at the forefront of its conceptualisation, the RR5 Rapid Deployment Rescue Raft is easily inflated, hard-wearing, reliable and versatile in its applications. The raft is ideal for use on the ice no matter the thinness; the openings at either end allow for easy access to the raft floor from the water/mud/sand for casualties, divers, and even K-9 rescuers, making loading and unloading extremely efficient. Its design lends itself to towing over water by PWCs or sledding for short periods over ice by snowmobile or K-9, via the SS317 D-Rings located at each end at the two sides of the sponsons.
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯

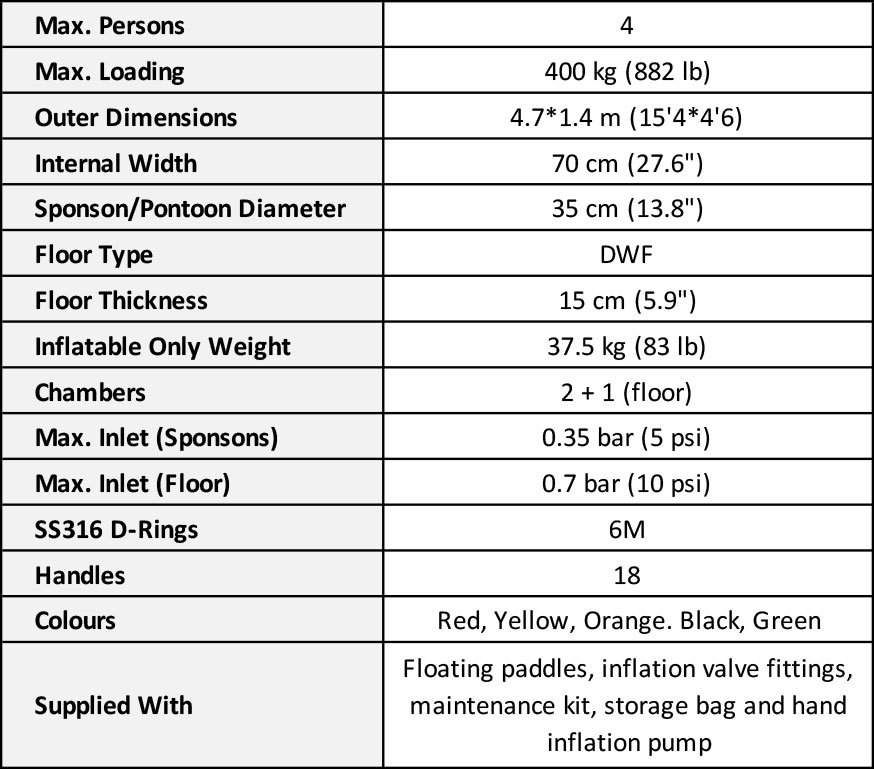

RR5 SPECIFICATIONS
| Max. Persons | 4
| Max. Loading | 400 kg (882 lbs)
| Outer Dimensions | 4.7*1.4 m (15'4"*4'6")
| Internal Width | 70 cm (27.6")
| Pontoon/Sponson Diameter | 35 cm (13.8")
| Floor Type | Drop Stitch Fabric / Double Wall Fabric (DWF)
| Floor Thickness | 15 cm (5.9”)
| Inflatable Only Weight | 37.5 kg (83 lbs)
| Chambers | 2 + 1 (floor)
| Max. Pontoon/Sponson Inlet | 0.35 bar (5 psi)
| Max. Floor Inlet | 0.7 bar (10 psi)
| Handles | 18
| SS316 D-Rings | 6 x 350mm
| Colours | Red, Yellow, Orange, Black, Green
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
| Max. Loading | 400 kg (882 lbs)
| Outer Dimensions | 4.7*1.4 m (15'4"*4'6")
| Internal Width | 70 cm (27.6")
| Pontoon/Sponson Diameter | 35 cm (13.8")
| Floor Type | Drop Stitch Fabric / Double Wall Fabric (DWF)
| Floor Thickness | 15 cm (5.9”)
| Inflatable Only Weight | 37.5 kg (83 lbs)
| Chambers | 2 + 1 (floor)
| Max. Pontoon/Sponson Inlet | 0.35 bar (5 psi)
| Max. Floor Inlet | 0.7 bar (10 psi)
| Handles | 18
| SS316 D-Rings | 6 x 350mm
| Colours | Red, Yellow, Orange, Black, Green
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
FEATURES
- Ideal for water, ice, mud and quicksand
- Strong, durable, reliable and self-righting inflatable design
- Low maintenance and easily repaired
- Launches with no need for access to a boat ramp
- Inflates in 2 minutes (with auto-inflation pumps)
- Fits in the boot/trunk of most vehicles
- Stainless Steel-316 D-Ring connections
- Can be towed by PWCs over water, or sledded over ice by snowmobile / K-9 teams
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
INCLUDED
INCLUDED
- 165 cm (65") T-bar paddles x2 OR dual-ended aluminium floating paddle
- Spare inflation valves x2
- High-pressure Manual Inflation Pump
- Storage Bag
- Repairs & Maintenance Kit
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
OPTIONAL ADDITIONS:
• Add EVA foam to the floor of the raft which will give extra grip for the user, and protection to the raft floor from potential ice cleat damage.
(EVA foam is applied using a 3M backing pad, which is extremely strong.)
• Branding specific to your team/organisation applied in PVC to the sponsons, created to your specifications by our in-house design team.
• Additional D-Rings can be attached at any point to the sponsons and floor.
• For further customisation options, get in touch with our production team: [email protected]
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
For more compact rescue sleds, check out the RR3 and RR4

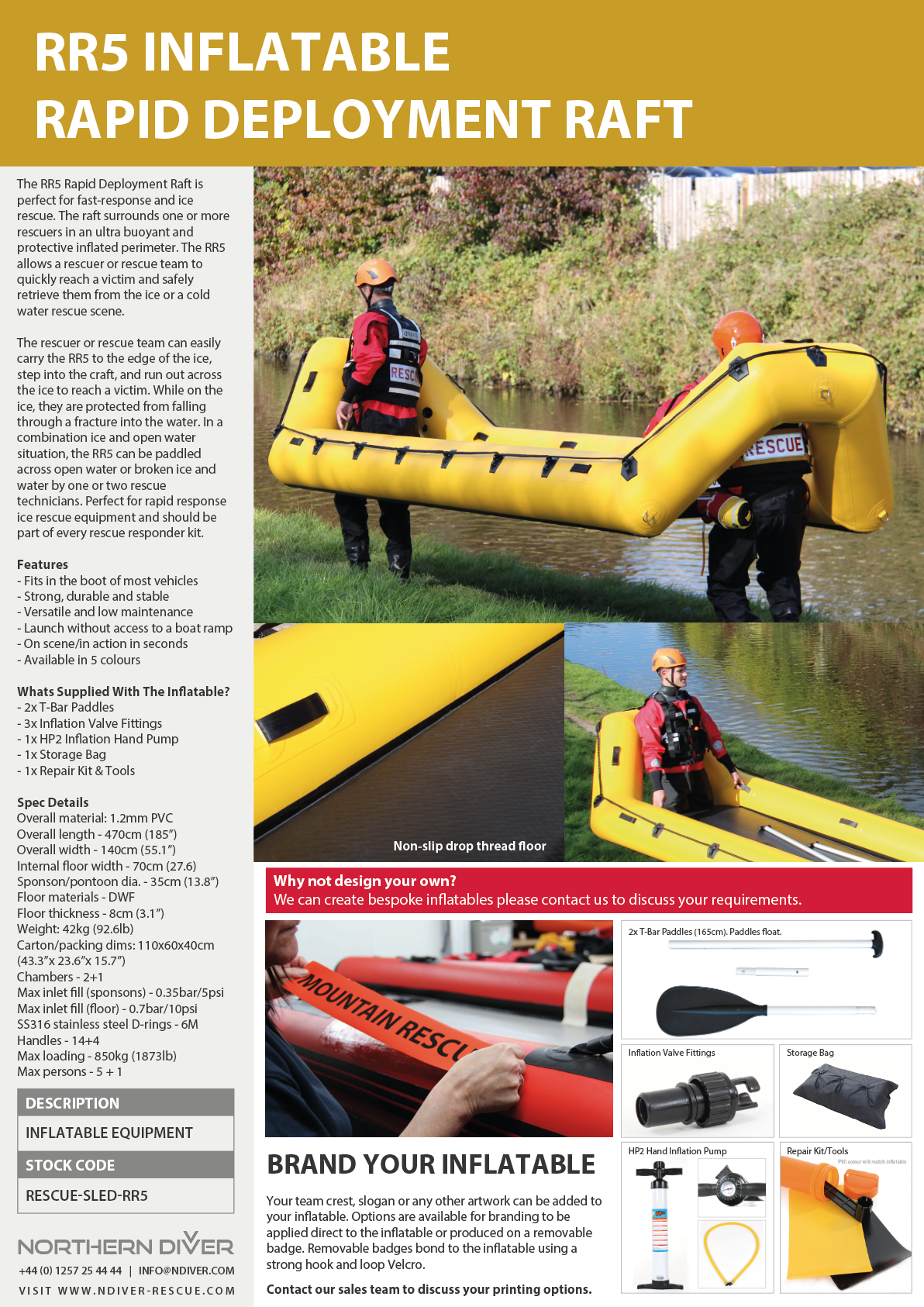

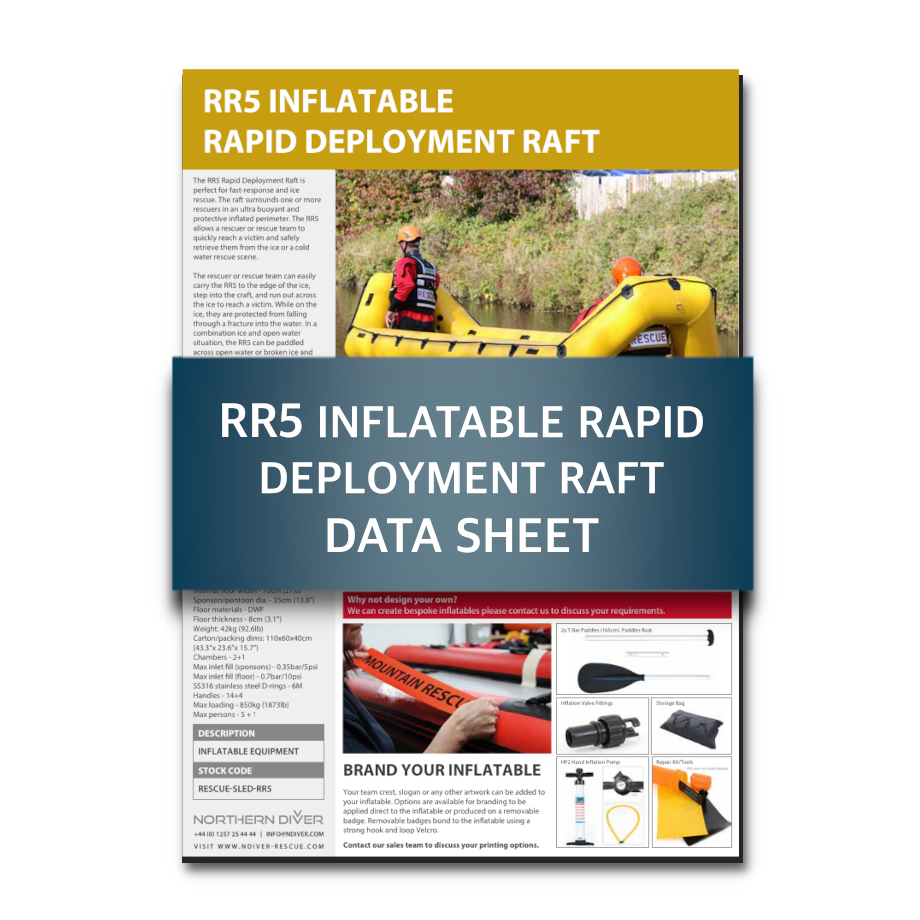

For further information, you can download the manuals or data sheets, or get in touch with our sales team.
• Add EVA foam to the floor of the raft which will give extra grip for the user, and protection to the raft floor from potential ice cleat damage.
(EVA foam is applied using a 3M backing pad, which is extremely strong.)
• Branding specific to your team/organisation applied in PVC to the sponsons, created to your specifications by our in-house design team.
• Additional D-Rings can be attached at any point to the sponsons and floor.
• For further customisation options, get in touch with our production team: [email protected]
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
For more compact rescue sleds, check out the RR3 and RR4
For further information, you can download the manuals or data sheets, or get in touch with our sales team.
Call: + 44 (0)1257 25 44 44
Key Features
- Capacity: Supports 4 persons, max load 400kg (882lb)
- Dimensions: 4.7m x 1.4m (15'4" x 4'6"), internal width 70cm (27.6")
- Sponson/Pontoon Diameter: 35cm (13.8") for added stability
- Floor Type: Drop-Stitch Welded Fabric (DWF) for durability and rigidity
- Floor Thickness: 15cm (5.9") for enhanced buoyancy
- Weight: 37.5kg (83lb) for manageable transport and handling
- Chambers: 2+1 (floor) for improved safety and flotation
- Inflation Pressure: Max 0.35 bar (5 psi) for sponsons, 0.7 bar (10 psi) for floor
- Handles: 18 total for secure grip and maneuverability
- D-Rings: 6 stainless steel (SS316) D-rings for multiple attachment points
- Colour Options: Red | Yellow | Orange | Green | Black
- Supplied with: Floating T-Bar Paddles | Inflation Valve Fittings | Maintenance Kit (incl. tools and patches) | Storage Bag | Manual Inflation Pump
